LHT390XS-M180-02CK
LHT
Product Description:

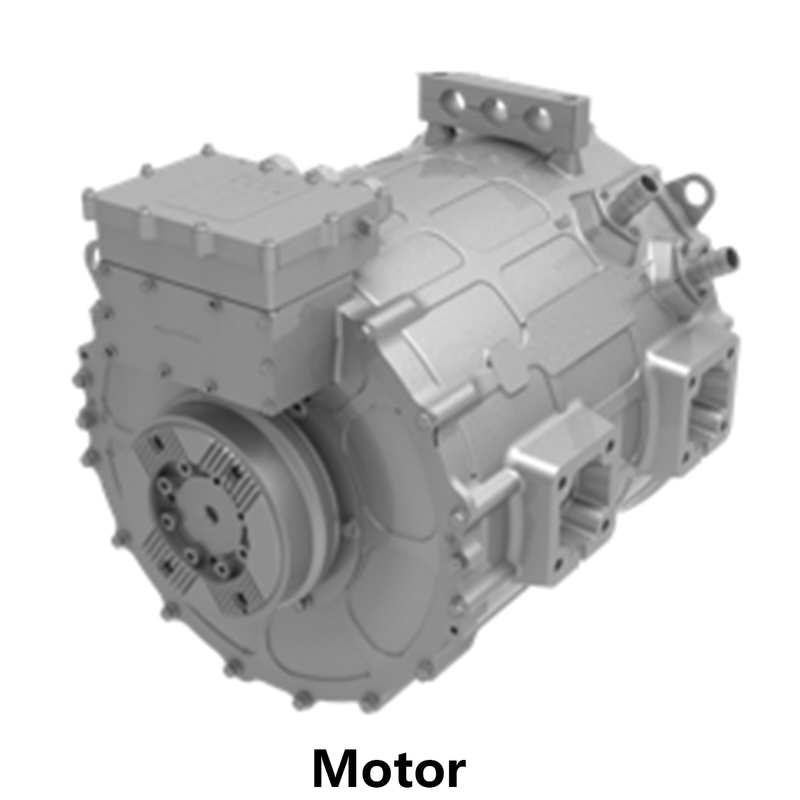

This motor is designed for 11 - 12 meter bus platforms and is model TZ390XS-M180-02CK. With a battery voltage of 540VDC, a continuous power of 200kW and a peak power of up to 350kW, it can easily cope with the needs of various working conditions in the bus. The continuous torque is 1800Nm and the peak torque is up to 3500Nm, which provides strong power support for the bus to start and accelerate.
The rated speed is 1060rpm, and the maximum speed can reach 3200rpm, with a wide range of speed adjustment. The motor weighs 320kg, the overall size is φ436*664mm, and the design is compact and reasonable. The protection level reaches IP68, which can effectively resist the instruation of dust and water, and adapt to a variety of complex environments. The R85 report has been issued, and the product performance and safety are reliably guaranteed, and it is a reliable core component of the bus power system.
Motor Parameter Table
| Item | Parameter |
| Battery Voltage/VDC | 540 |
| Continuous Power/kW | 200 |
| Peak Power/kW | 350 |
| Continuous Torque/Nm | 1800 |
| Peak Torque/Nm | 3500 |
| Rated Speed/rpm | 1060 |
| Maximum Speed/rpm | 3200 |
| Peak Current/A | 780 |
| Weight/kg | 320 |
| Overall Dimensions/mm | φ436*664 |
| Motor Model | TZ390XS-M180-02CK |

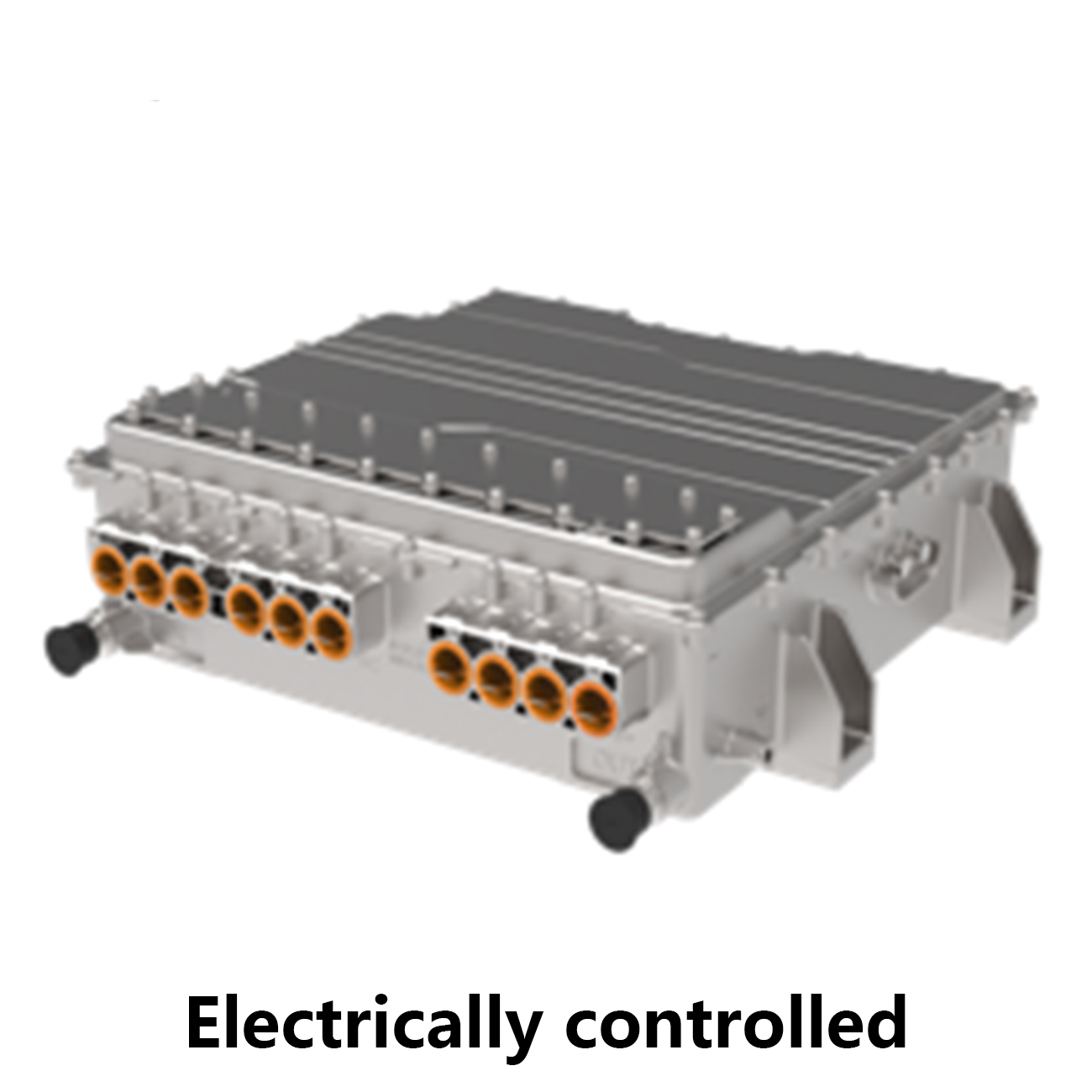

Electronic Control Parameter Table
| Item | Parameter |
| Rated Operating Voltage/VDC | 576 |
| Operating Voltage Range/VDC | 400 - 750 |
| Rated Capacity/kVA | 354 |
| Maximum Capacity/kVA | 640 |
| Rated Operating Current/A | 470 |
| Peak Operating Current/A | 850 |
| Protection Class | IP68 |
| Highest Efficiency | 99% |
| Weight/kg | 30 |
| Overall Dimensions/mm | W582.1D534.3H178 |
| Electronic Control Model | KTZ54X85S-A286-01CK |
