TZ390XS-M250-01CK
LHT
Product Description:

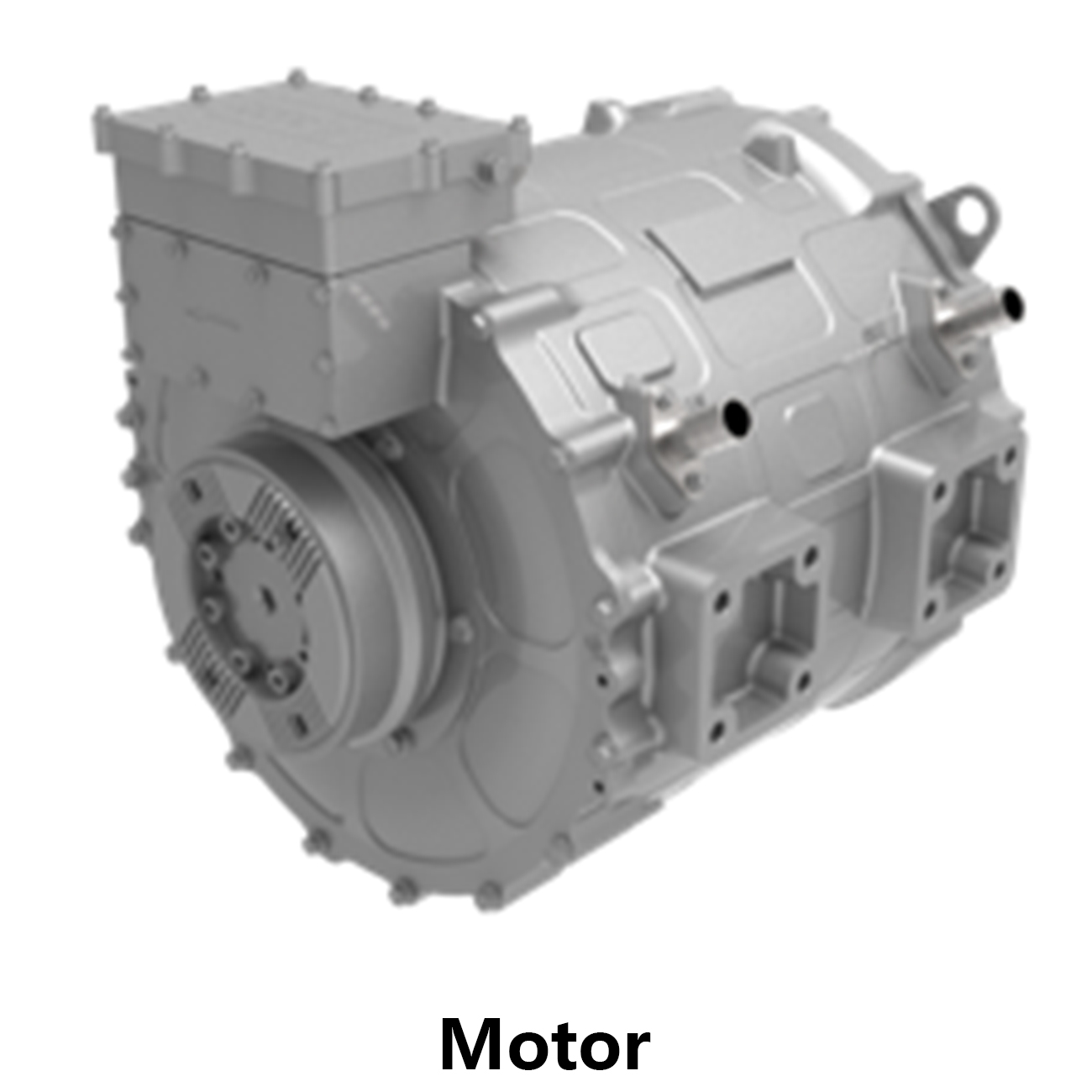

This motor, specifically designed for the 10.5 - meter bus platform, has the model number TZ390XS-M250-01CK. With a battery voltage of 540VDC, a continuous power of 250kW, and a peak power of 350kW, it offers robust power to meet the bus's power demands in various driving scenarios. The continuous torque is 1400Nm, and the peak torque reaches 2800Nm, ensuring smooth starts and accelerations.
It has a rated speed of 1700rpm and can reach a maximum speed of 3500rpm. The reasonable speed range makes it adaptable to multiple working conditions. Weighing 252kg and with overall dimensions of φ437*596mm, it has a compact design for easy installation. With a protection class of IP68, it has excellent dust - proof and waterproof capabilities, enabling stable operation in complex and harsh environments. An R85 report has been issued, and the product's performance and safety have been rigorously verified. It is a reliable power - core component for 10.5 - meter buses.

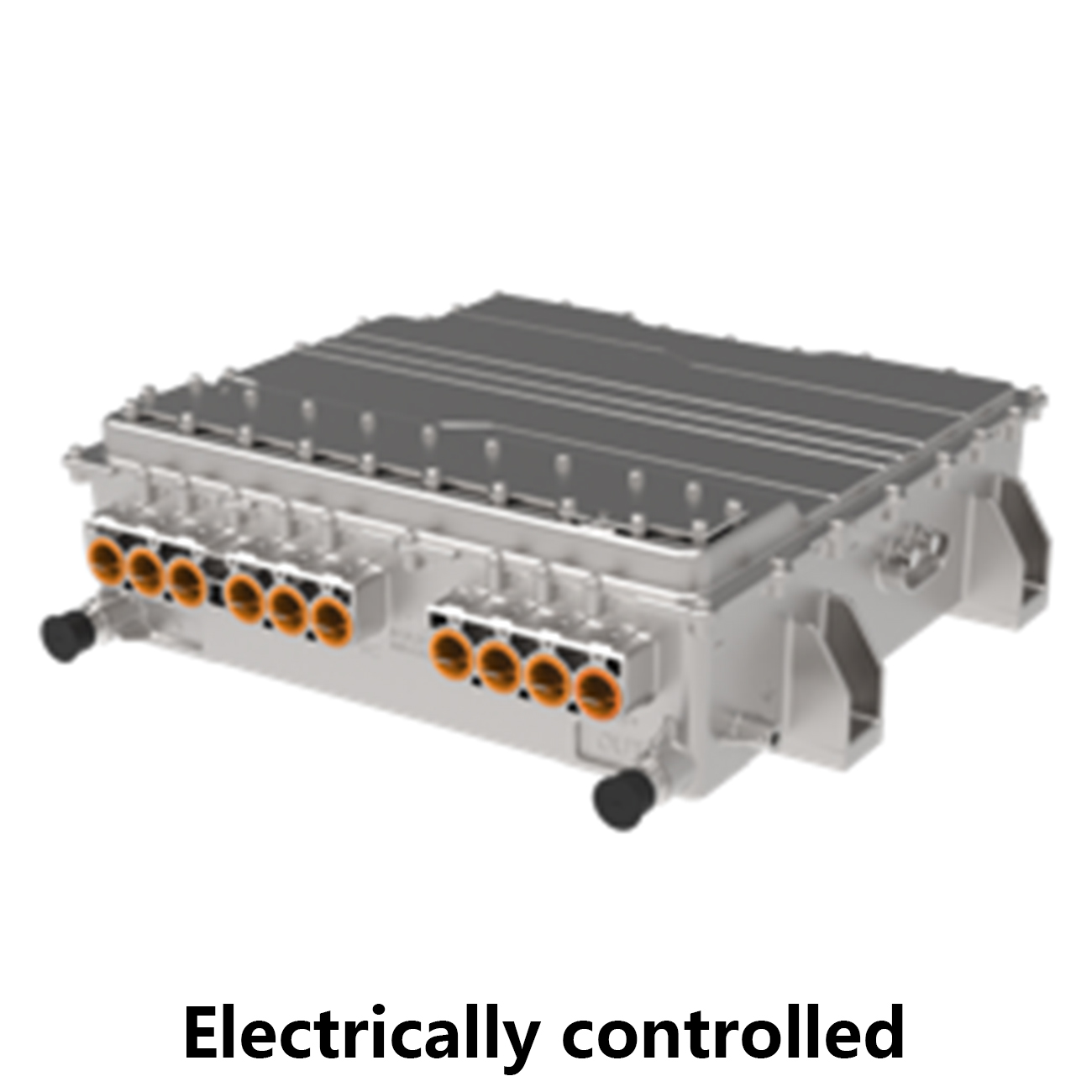

This electronic control system, suitable for the 10.5 - meter bus platform, is model KTZ54X85S-A286-01CK. With a rated operating voltage of 576VDC and an operating voltage range of 400 - 750VDC, it can adapt to various power supply inputs, ensuring stable operation. The rated capacity is 354kVA, and the maximum capacity is 640kVA, effectively meeting the power supply requirements of the motor under different power states.
The rated operating current is 470A, and the peak operating current is 850A, guaranteeing stable power transmission. With a protection class of IP68, it has good protective performance against dust and water intrusion. The highest efficiency reaches 99%, effectively improving energy utilization. Weighing 30kg and with overall dimensions of W582.1D534.3H178mm, it is compact and easy to install. An R85 report has been issued, providing reliable support for the efficient and safe operation of the bus motor.
Motor Parameter Table
| Item | Parameter |
| Battery Voltage/VDC | 540 |
| Continuous Power/kW | 250 |
| Peak Power/kW | 350 |
| Continuous Torque/Nm | 1400 |
| Peak Torque/Nm | 2800 |
| Rated Speed/rpm | 1700 |
| Maximum Speed/rpm | 3500 |
| Peak Current/A | 780 |
| Weight/kg | 252 |
| Overall Dimensions/mm | φ437*596 |
| Motor Model | TZ390XS-M250-01CK |
Electronic Control Parameter Table
| Item | Parameter |
| Rated Operating Voltage/VDC | 576 |
| Operating Voltage Range/VDC | 400 - 750 |
| Rated Capacity/kVA | 354 |
| Maximum Capacity/kVA | 640 |
| Rated Operating Current/A | 470 |
| Peak Operating Current/A | 850 |
| Protection Class | IP68 |
| Highest Efficiency | 99% |
| Weight/kg | 30 |
| Overall Dimensions/mm | W582.1D534.3H178 |
| Electronic Control Model | KTZ54X85S-A286-01CK |
