| Quantity: | |
|---|---|
LHT5183TXSDF6S
LHT
1

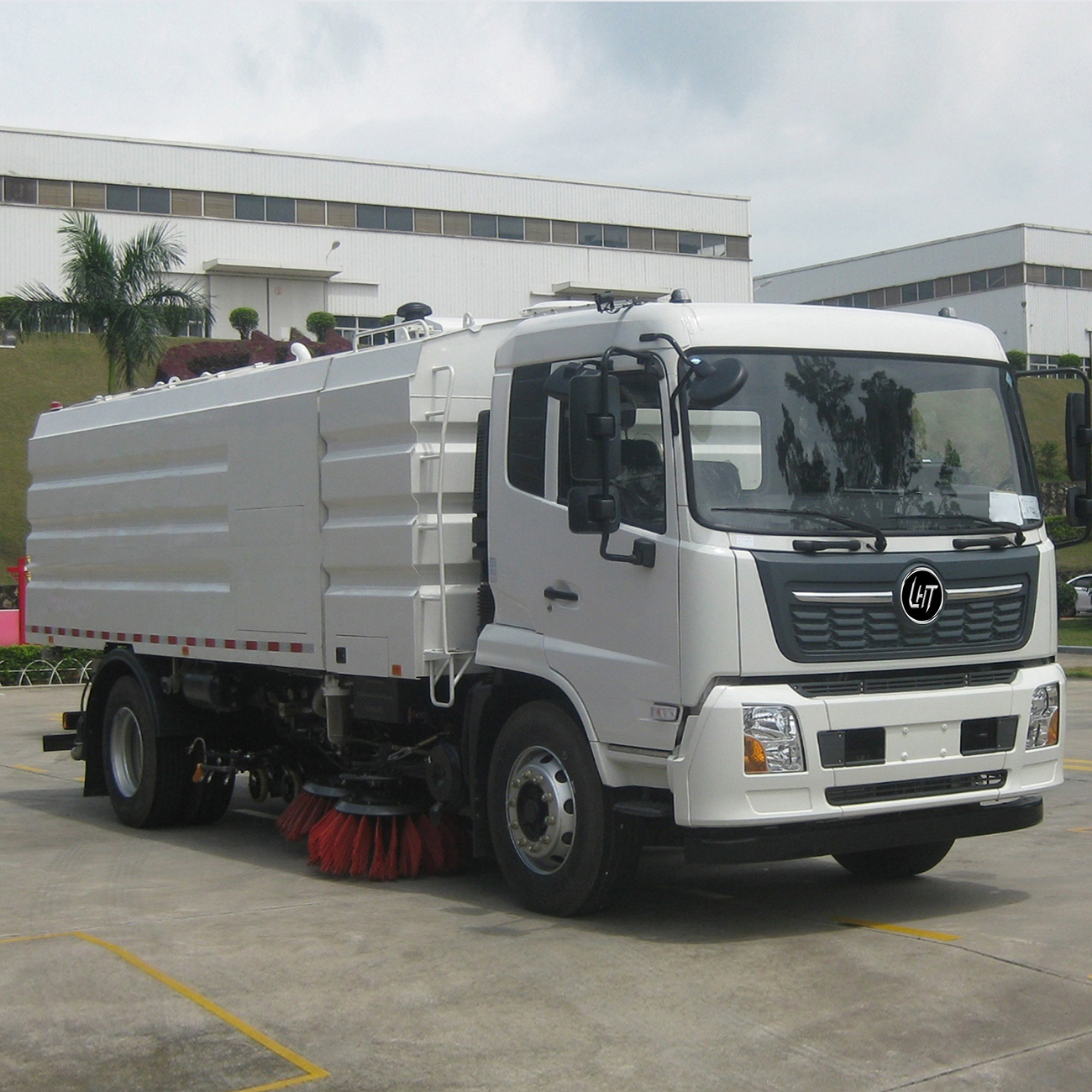

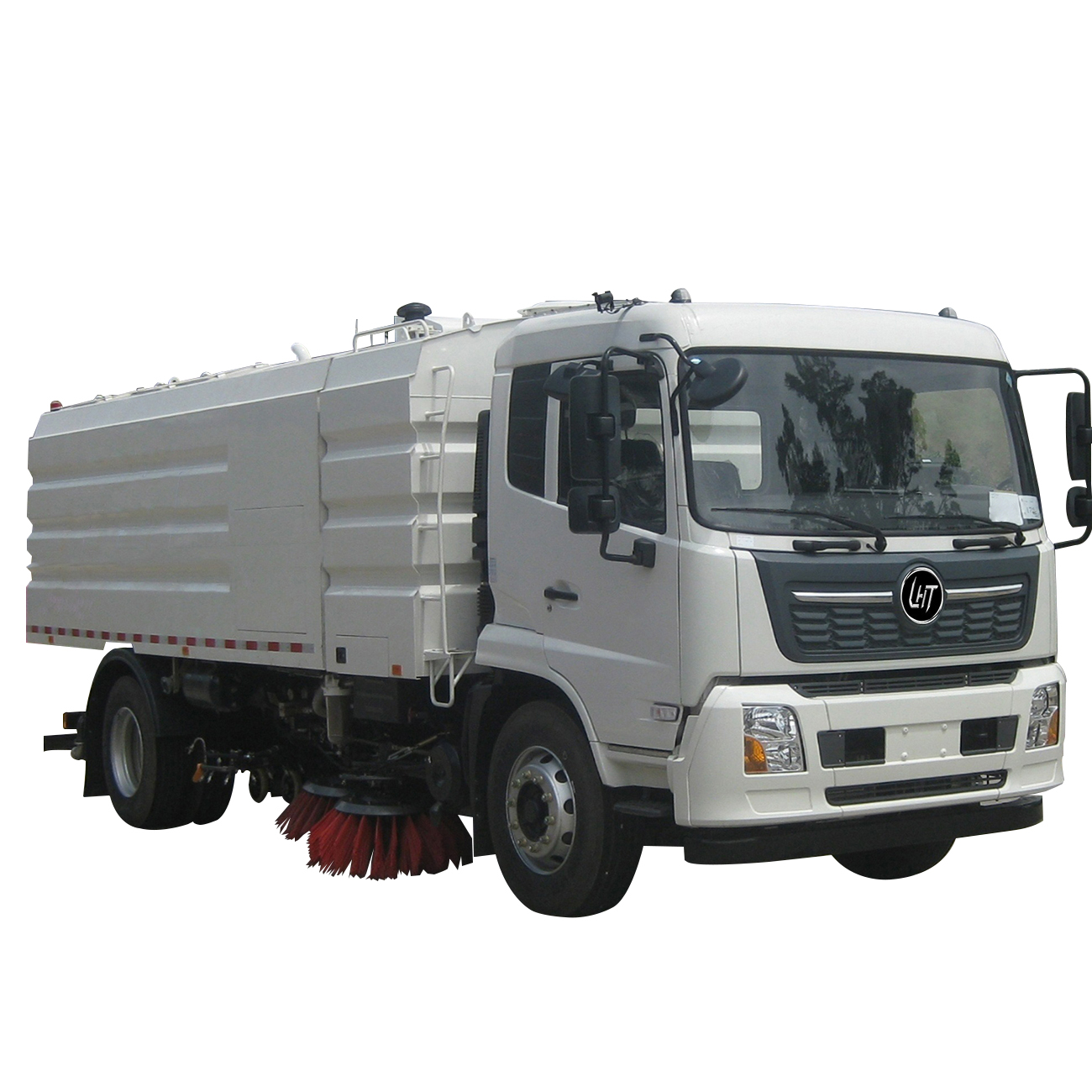

1.the function of the overview
It has a variety of functions such as pavement cleaning, pavement cleaning, pavement full washing, curb and curb stone façade washing, low-pressure washing, spray dust reduction, etc.
2.Scope of application
It is suitable for mechanized cleaning, cleaning, spraying and dust reduction and other cleaning operations of urban roads, highways, squares, airports, docks, tunnels, bridges, curbs and curb stone facades.
3.Main Structure and Performance Characteristics

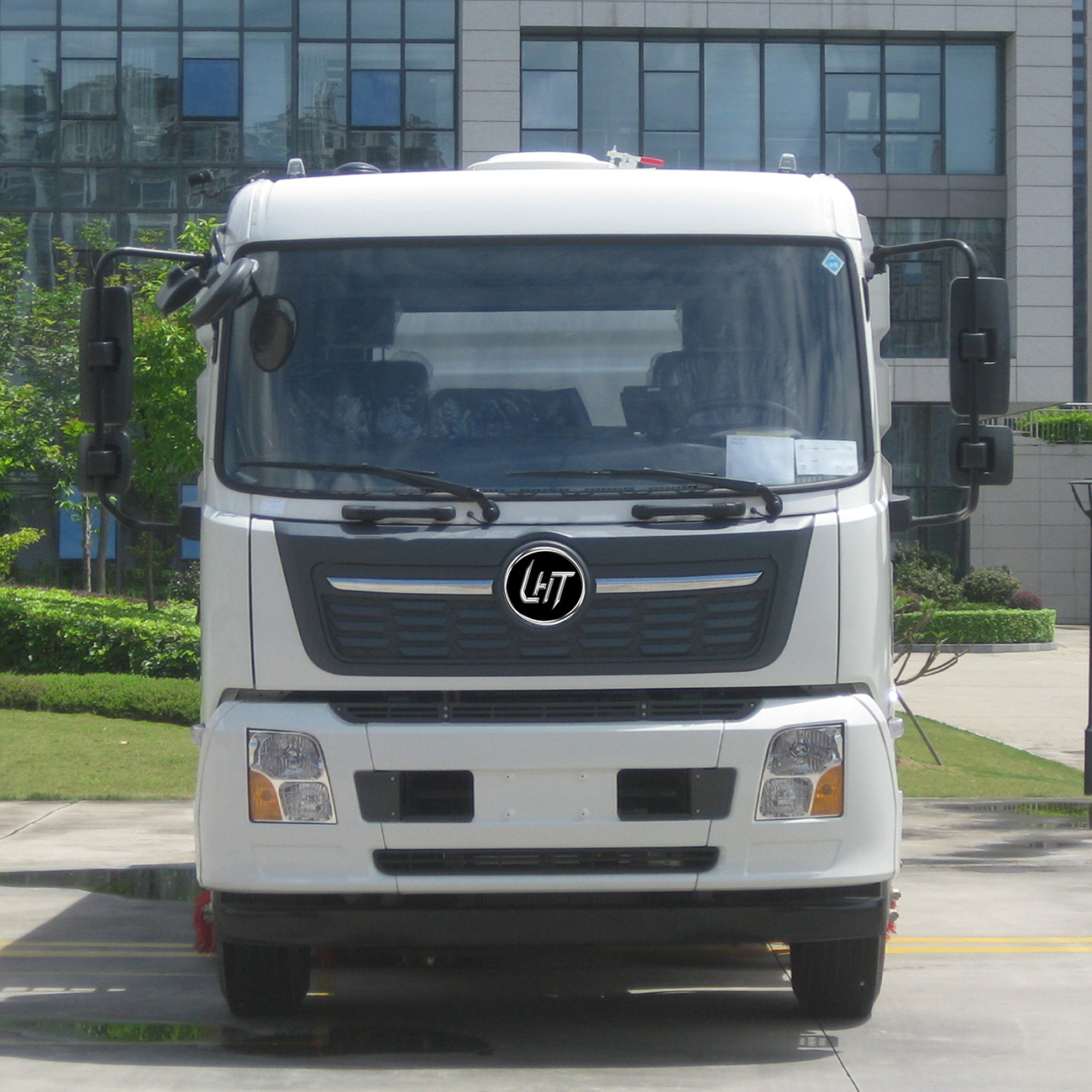

Chassis
Chassis. It is refitted from the LongHuiTong Commercial Tianjin LHT1180EX8 type II truck chassis, which has strong power and high load-bearing capacity. This chassis is currently the most advanced and reliable domestic commercial vehicle chassis meeting the National VI emission standard.
Engine. The Dongfeng Cummins B6.2NS6B230 diesel engine is adopted, with a rated power of 169kW, a rated speed of 2300r/min, and the emission meets the National VI standard.
Auxiliary Engine and Its Transmission Device
Auxiliary Engine. The Cummins B3.9CS4-150C National IV auxiliary engine is adopted, with a rated power of 110kW and a rated speed of 2500r/min. The auxiliary engine is equipped with a vehicle clutch, which is driven by a cylinder. The separation and engagement of the clutch are automatically controlled by the electronic control system, eliminating the need for manual operation. At the same time, it also ensures the no-load starting and no-load stopping of the auxiliary engine, extending the service life of the auxiliary engine.

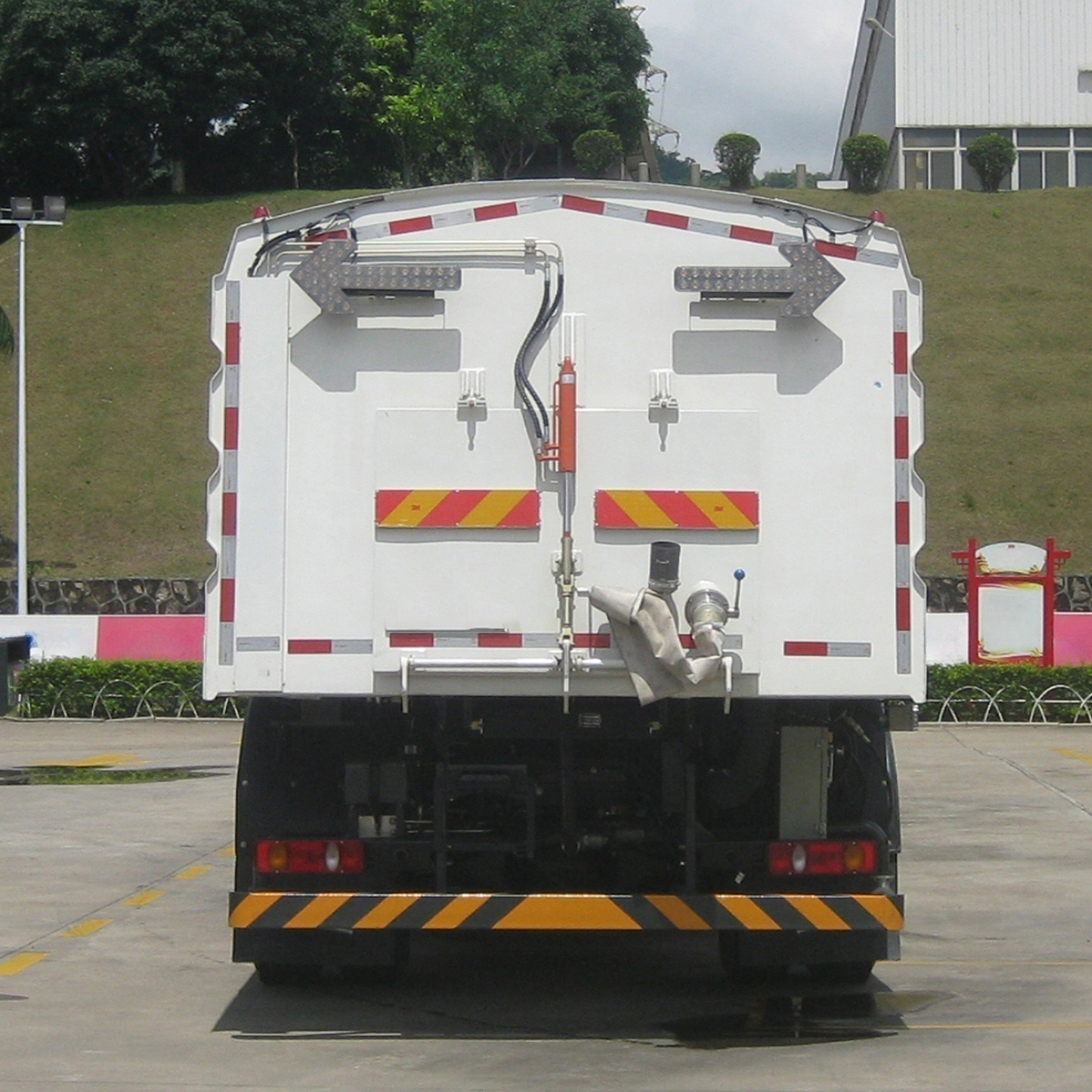

Garbage Bin
The garbage bin is made of 304 stainless steel, and the side enclosure adopts a corrugated structure design. Part of the clean water tank is integrated with the garbage bin. The total volume of the garbage bin reaches 7m³.
Suction Nozzle
The unique double-suction narrow suction nozzle structure and the original V-shaped spray pipe effectively gather all the sewage and garbage after cleaning to the suction nozzle, achieving a good sewage recovery effect; at the same time, the structure of the suction nozzle swing arm is optimized to improve reliability. The rollers are made of polyurethane material, effectively extending the service life of the rollers.

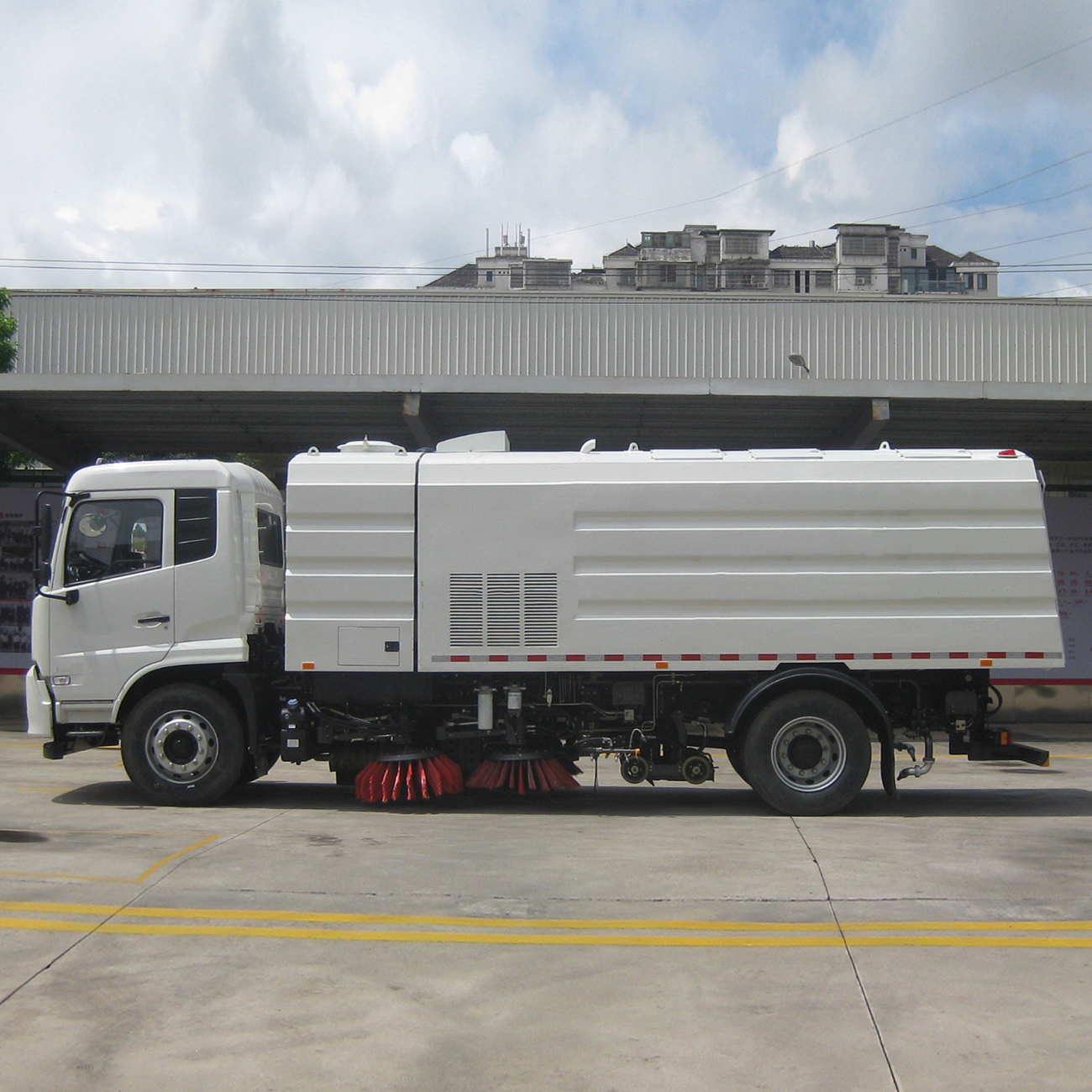

Sweeping Device
The ground contact adjustment mechanism of the sweeper brush is controlled by a screw adjustment, ensuring that the contact amount between the sweeper brush and the ground is within a certain range. The mechanism is both simple and reliable; the rotation speed of the sweeper disc can be selected from high, medium, and low gears according to different sweeping working conditions, ensuring a good sweeping effect under various pollution conditions.
High-pressure Water Pump
The well-known brand GT40F high-pressure plunger pump is adopted, with a rated working pressure of 13MPa, a rated flow rate of 153L/min, high efficiency, and good reliability.
Electronic Control System
The vehicle adopts a control mode of "display screen + controller + CAN bus operation panel". When starting and stopping the operation, the operation devices such as the rotation speed control of the auxiliary engine, the lifting of the suction nozzle, the retraction and extension of the sweeper disc, and the retraction and extension of the left and right spray booms are all controlled by one key, which is easy to operate. The vehicle
4.the main technical parameters of the product
| project | parameter | |||||
| Chassis model | LHT1180EX8 | |||||
| Chassis manufacturer | Longhuitong New Energy Automobile Co., Ltd | |||||
| Chassis engine model | B6.2NS6B230 | |||||
| Chassis engine rated power / speed / displacement kw / (r / min) / ml | 169/2300/6200 | |||||
| Chassis engine maximum net power / speed (kw / (r/min)) | 166/1800 | |||||
| Sub-engine model | Standard | Matching | ||||
| Cummins B3.9CS4-150C | Yuchai YCDT484ATL-165 | |||||
| Emission standards | China IV | |||||
| Auxiliary engine rated power/speed(kW/r/min) | 110/2500 | 121/2300 | ||||
| Transmission model | 8JS95E-C | |||||
| Transmission type | Manual mechanical | |||||
| Tire specifications | 275/80R22.5 18PR | |||||
| Wheelbase (mm). | 5000 | |||||
| Maximum Climbing Angle (% | 30 | |||||
| Minimum turning diameter (m) | 20 | |||||
| Maximum total mass (kg). | 18000 | |||||

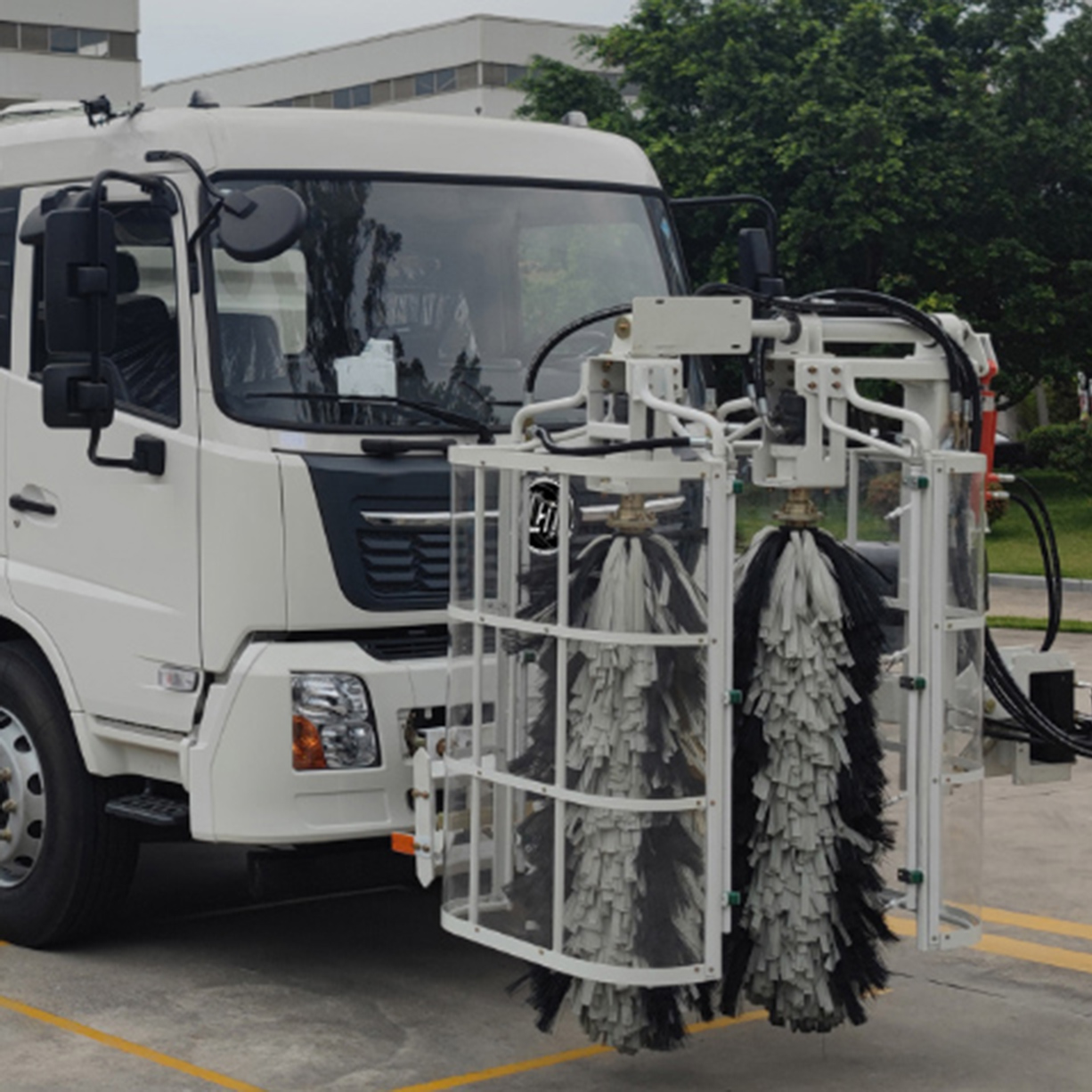

| disposition | Configuration A: Standard | Front sprinkler | Configuration B: Forward roll sweeper | Configuration C: Front automatic water cannon | Configuration D: Front double roller brush cleaning device | |
| Dimensions (length×width×height) (mm). | 8715×2550×3115 | 9795×2550×3115 | 9200×2550×3115 | 10335×2550×3115 | ||
| Curb weight (kg). | 11200 | 11460 | 11200 | 11860 | ||
| Rated load weight (kg). | 6605 | 6345 | 6605 | 5945 | ||
| Front/rear overhang(mm) | 1430/2285 | |||||
| Angle of approach/departure (°) | 17/13 | 12/13 | 8/13 | 17/13 | 7/13 | |
| Reach(mm) | 0 | 1080 | 485 | 1620 | ||
| Maximum speed(km/h) | 89 | |||||
| Number of cab passengers | 3 | |||||
| High pressure water pump model | Standard | |||||
| GT40F | ||||||
| Rated working pressure of high-pressure water pump (MPa) | 13 | |||||
| Rated flow rate of high-pressure water pump(L/min) | 153 | |||||
| Sweeping width (m) | 3.5 | |||||
| Maximum sweeping width (m) | 4.1 | |||||
| Sweeping speed(km/h) | 3~20 | |||||
| Cleaning speed(km/h) | 3~20 | |||||
| Maximum cleaning capacity(/h) | 70000 | |||||
| Clean water tank volume (m³) Standard material, thickness: optional material, thickness | 10 Q235B,3.5mm:SUS304,4mm | |||||
| Dustbin volume (m³) Standard material, thickness: optional material, thickness | 7 Stainless steel SUS304, 4mm | |||||
| Nozzle width (mm) | 1486 | |||||
| Sweep disc diameter(mm) | 580 | |||||
| Suction width(mm) | 1020 | |||||
| Discharge angle (°) | ≥45 | |||||
| Low-pressure flushing width (m) | 24 | |||||
| Cab temperature control measures | Equipped with air conditioning and heating | |||||
| other | - | |||||
