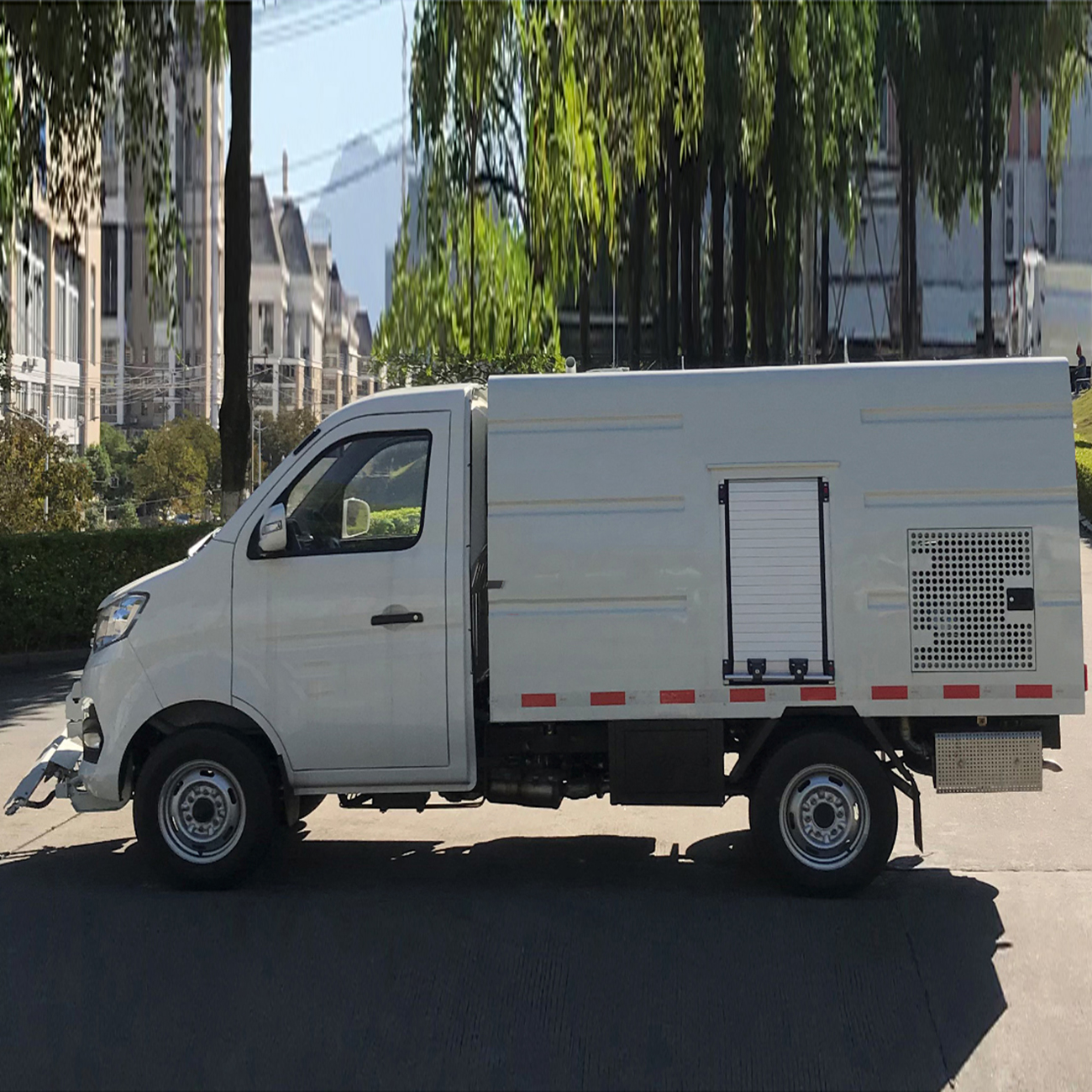

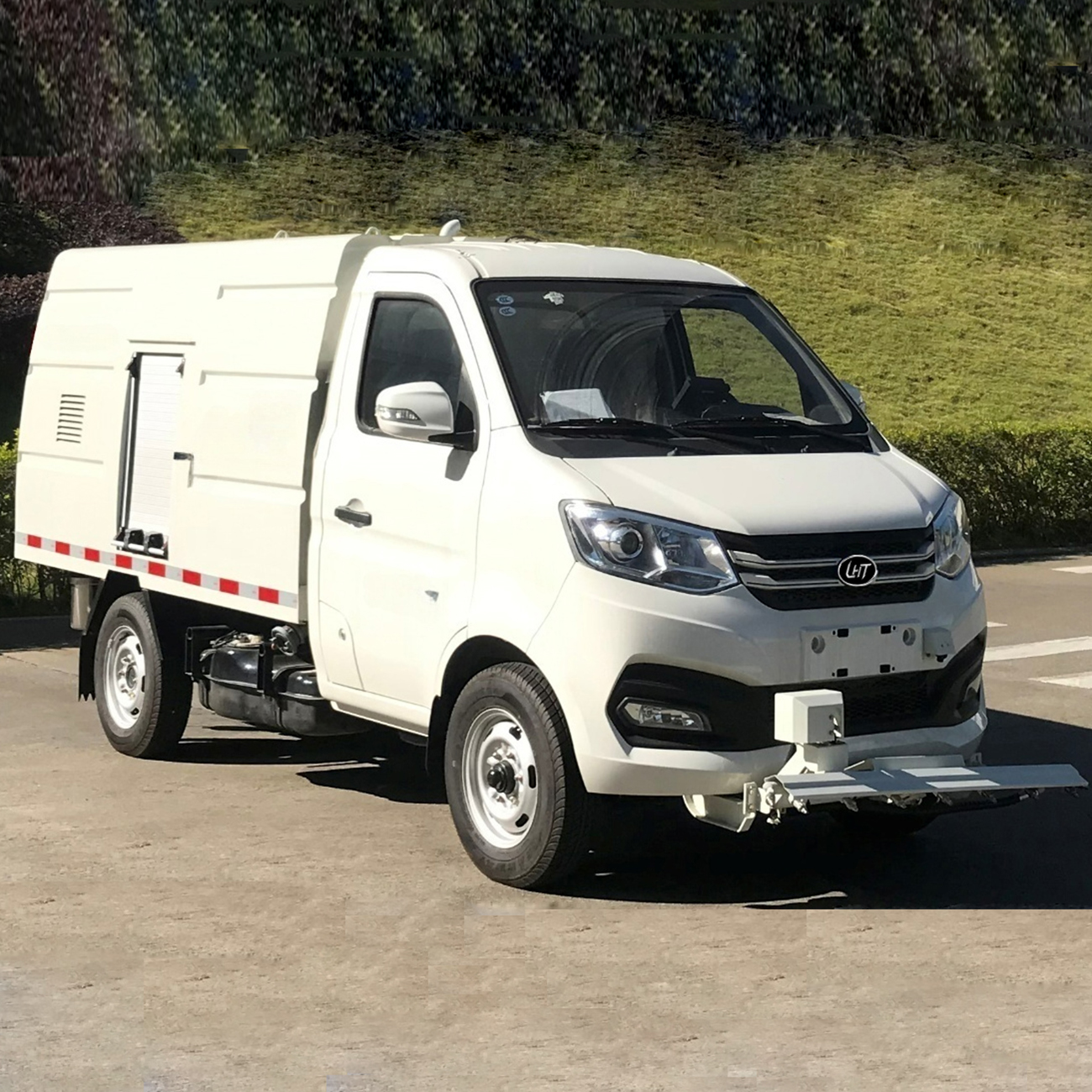

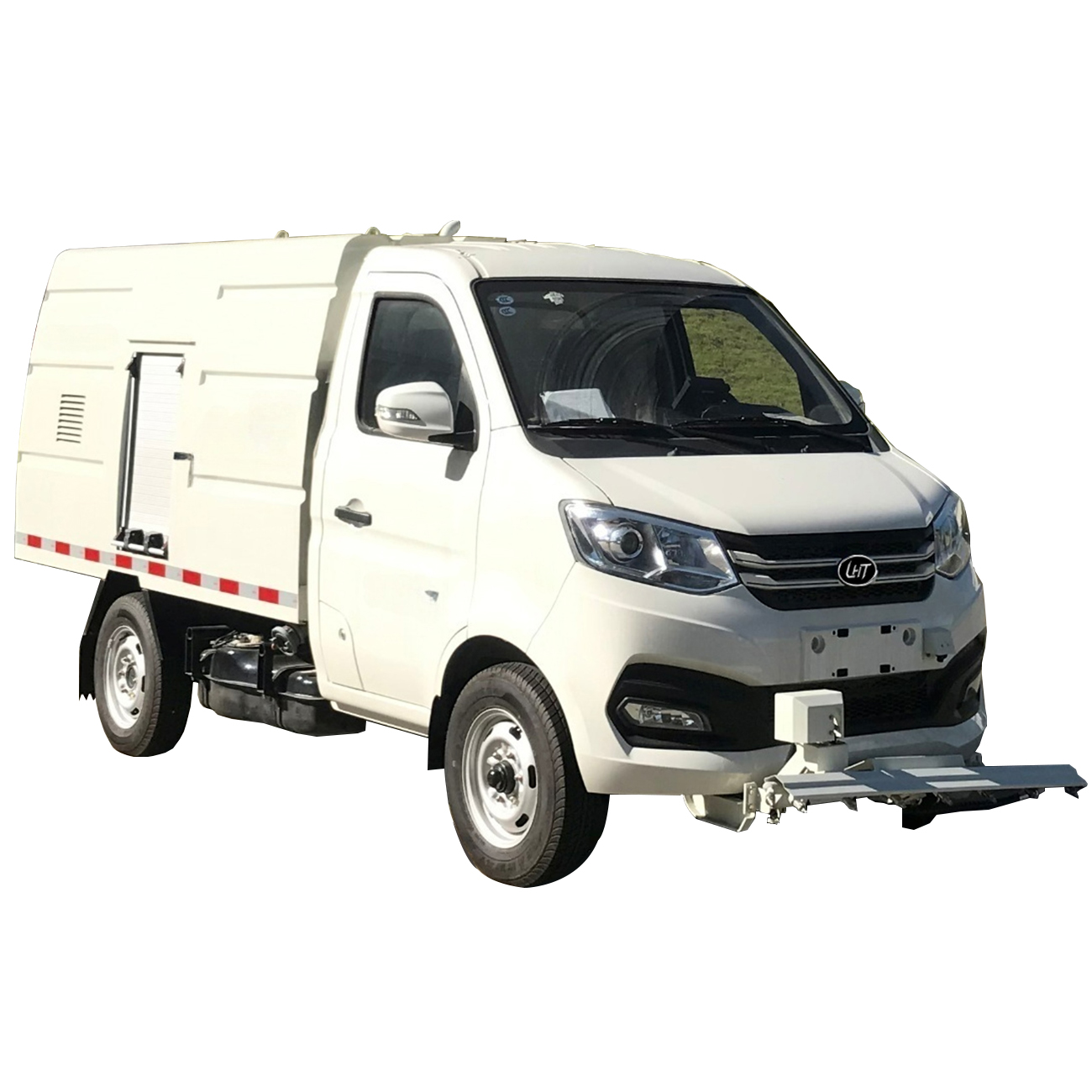

LHT5030TYHCC6
LHT
1
1.the function of the overview
This product has a cleaning device, a columnar single-point cleaning device, a manual spray gun device, a hand-pushed nozzle cleaning device and other operating devices.

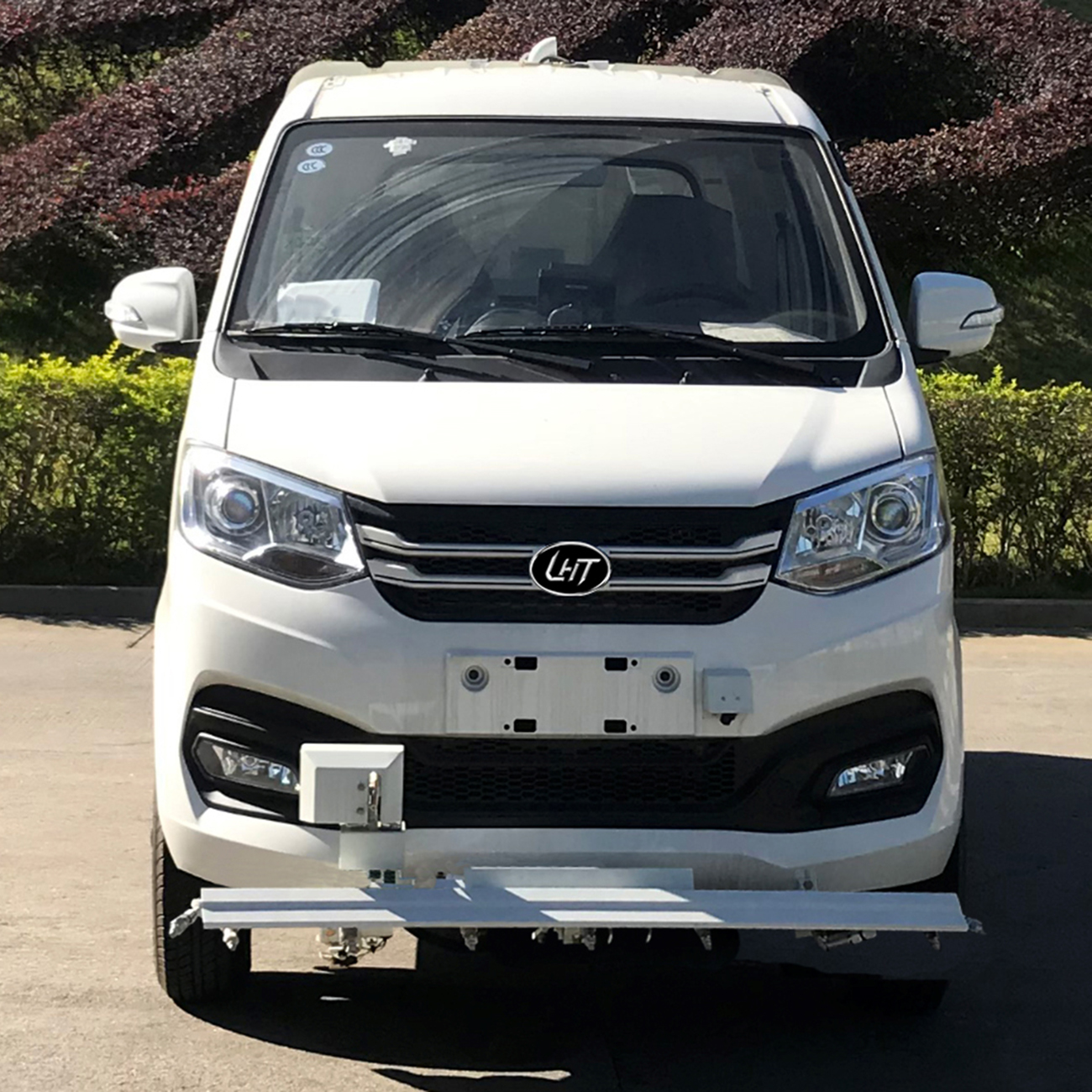

When the front cleaning device is working, the high-pressure water flow can form a complete cleaning plane, and the electronically controlled hydraulic cylinder rotates up and down 12 degrees, and the left and right deviations are 20 degrees, and the cleaning effect is good.
The operation of the columnar single-point cleaning unit is fully electrically controlled, and the operator can complete the operation from the cab. It can swing in all directions up, down, left and right, and is suitable for the removal of local sanitary dead corners of the road;

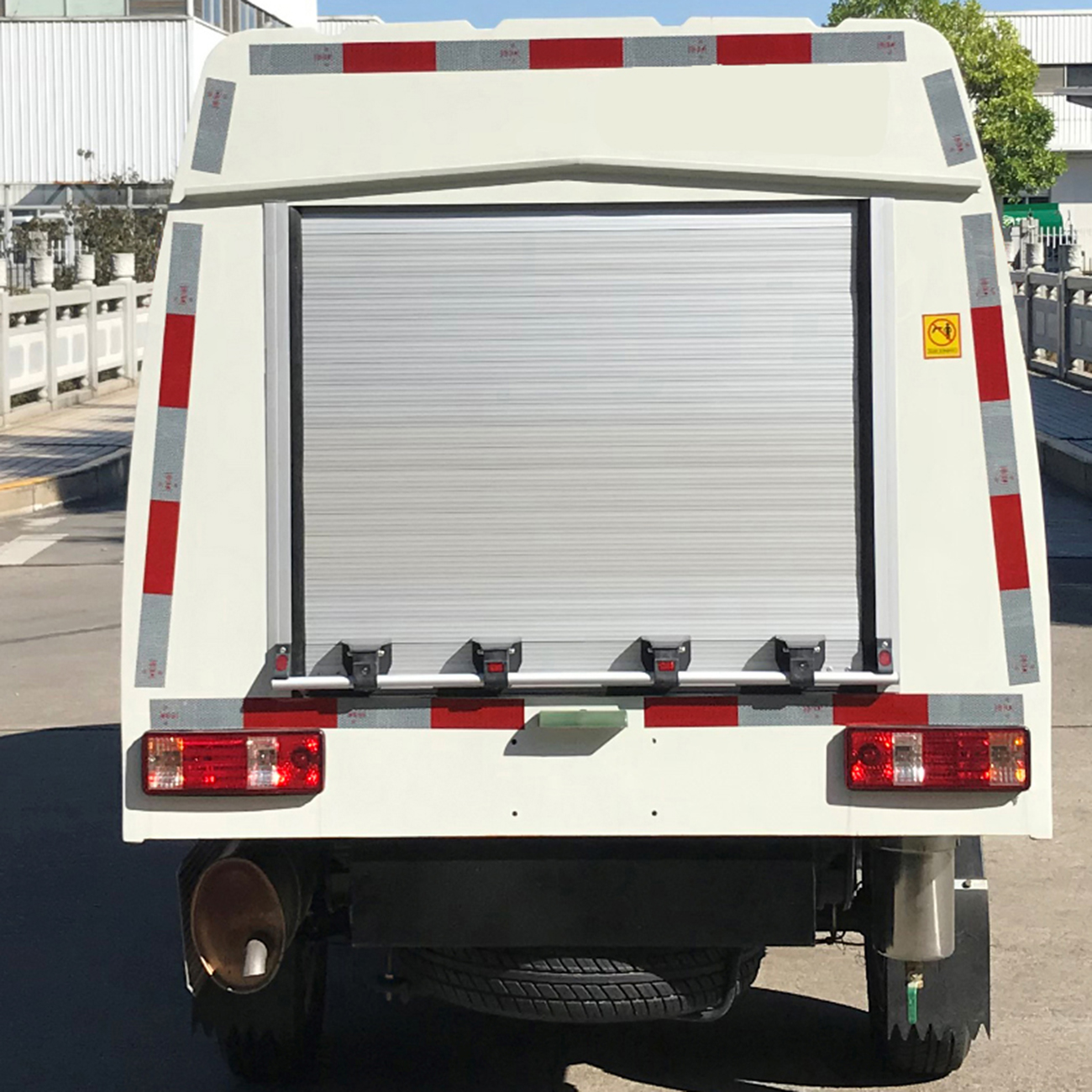

The rear manual high-pressure spray gun is equipped with a 20-meter-long hose for a large operating range. In order to cope with various working conditions, it is also equipped with 4 kinds of professional nozzles, which is the nemesis of small street advertising;
The walk-behind nozzle cleaning device uses a high-pressure, low-flow cleaning water curtain from a high-pressure nozzle to clean the road surface and blind joints in areas that cannot be passed by vehicles. The device adopts a foldable structure, which can be stored and retrieved at any time, which is convenient and fast, water-saving and environmentally friendly;
The model is also equipped with a lightweight, compact, splash-proof protective cover water broom, equipped with a rotating nozzle for better cleaning effect, which can be used to clean and sweep roadside rest benches, narrow platforms, walls and other areas.
2.Scope of application
The product is mainly used for the cleaning and maintenance of urban walking paths, stall pavement and small advertising cleaning. It has the characteristics of high water pressure, multi-function, and full electronic control operation.
3.the main structure and performance characteristics
a chassis
Chassis. It adopts the SC1031XND64A-type class II automobile chassis modification produced byXiamen Longhuitong Automobile Technology Co., Ltd., which has strong power and strong carrying capacity.
Auxiliary engine. It adopts Briggs & Stratton gasoline engine25T2, rated power 13.5Hp.
Clean water tank
The effective volume of the clean water tank is 1.3m³, which has a large volume and a long working time. The water tank adopts three-dimensional simulation design, and has passed the strict reliability test, and the integral weldment has strong seismic resistance, no deformation and no rust. The water tank is equipped with a low water level sensing alarm device and a water level gauge to prevent the high-pressure water pump from being damaged due to lack of water.
Power system

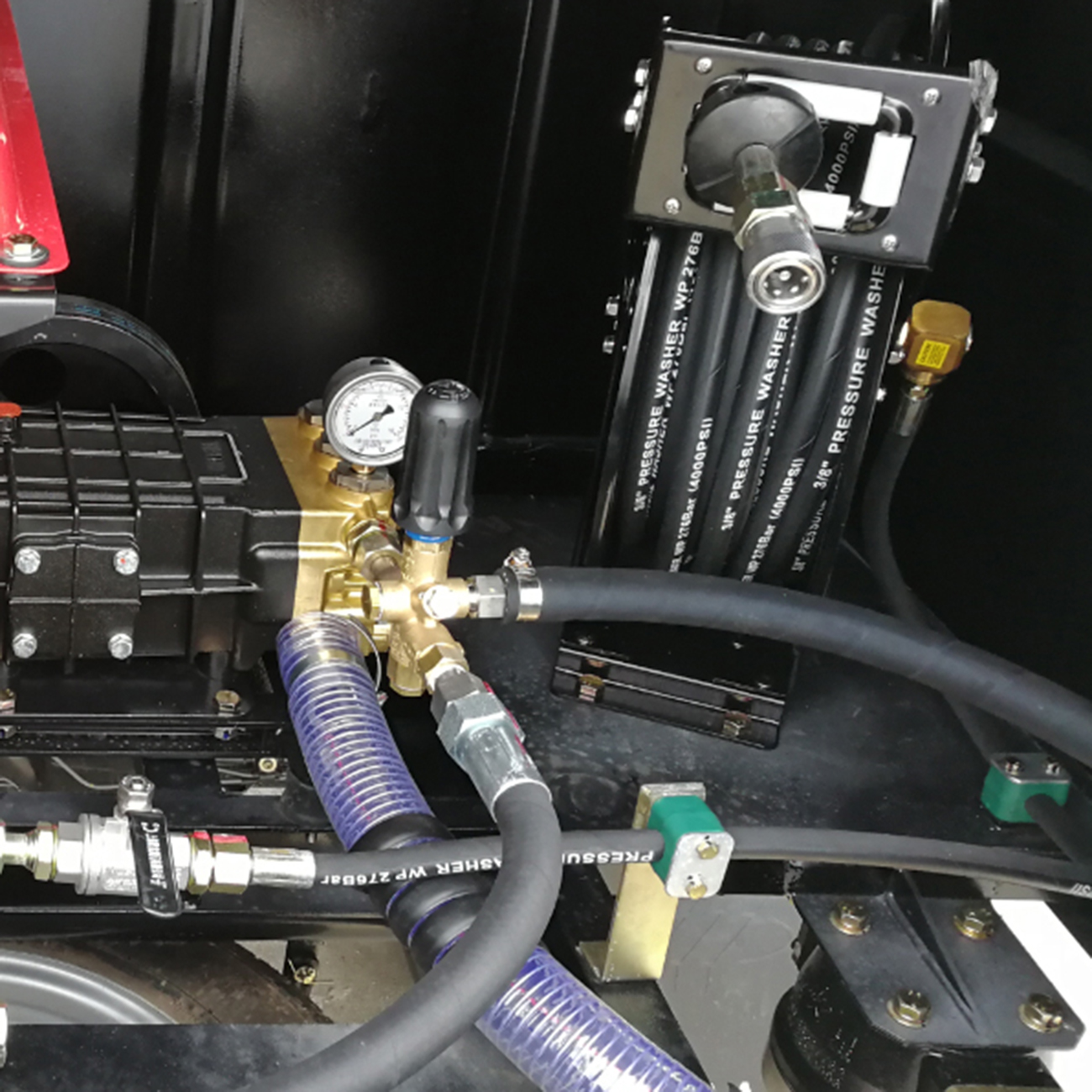

The high-pressure water pump and its drive gasoline engine are located at the rear of the water tank, which is convenient for operation and maintenance. The opening and closing of the high-pressure water pump can be operated remotely from the cab.
High-pressure waterway system
High-pressure water pump. /b20>Piston pump from famous manufacturer is adopted, with high efficiency and good reliability. The rated working speed of the water pump is 1450r/min, the rated working pressure is 20MPa, and the rated flow is 40L/min.
The high-pressure and low-flow inlet pump is adopted, the jet water flow is strong, and the continuous operation time is long. In order to adapt to the harsh working environment, all fasteners are galvanized. All structural parts are pickled and phosphated, outdoor resin powder is used, and treated by high-temperature electrostatic spraying process, with strong adhesion, strong corrosion resistance, strong weather resistance, and strong corrosion resistance.
Hydraulic system
Equipped with an independent hydraulic system, there is a power unit to drive the swing of the front spray frame and the lifting cylinder to ensure the stability of the mechanism.
Electronic control system
The electronic control system and the electronic control system of the automobile chassis are two independent systems. The electronic control system of the working device is composed of an electric control switch, a wiring harness, and an electrical component of the auxiliary engine. From the cab, you can control the up, down, left and right cleaning direction control of the auxiliary engine, front water spray rack and single-point dredging device.
4.the main technical parameters of the product
| project | specification |
| Chassis model | LHT1031XND64A |
| Chassis manufacturer | Xiamen Longhuitong Automobile Technology Co., Ltd., |
| Chassis engine model | DAM16KR |
| Chassis engine power rating (kW). | 90 |
| Chassis engine displacement (ml) | 1597 |
| Maximum speed (km/h). | 100 |
| Dimensions(mm) | 4885×1580×2040 |
| Gross weight (kg) | 2840 |
| Curb weight (kg) | 1710 |
| Rated load weight (kg) | 1000 |
| Front/rear overhang(mm) | 1045/1140 |
| Angle of approach/departure (°) | 16/24 |
| Effective volume of water tank (m3) | 1.3 |
| Tank crafting materials | Q345B (optional SUS304 material). |
| Cleaning width (m) | The front cleaning ≥ is 1.8, and the hand spray frame ≥ 1.5 |
| Continuous operation time (min/full tank of water) | 40 pre-cleaning and hand-pushed cleaning ≥, hand-held spray gun ≥ 180 |
| Water pressure in front spray operation (Mpa) | ≥9 |
| High pressure water pump model | DS4020 |
| High pressure water pump flow rate (l/mim). | 40 |
| High Pressure Pump Rated Pressure(Mpa) | 20 |
| Sub-engine model | Briggs & Stratton 25T2 |
| Auxiliary engine power Hp | 13.5 |
5.the main advantages of the product
| serial number | Advantageous points | Description |
| 1 | Superior performance | The product adopts modular design, and can be equipped with a variety of devices such as rear upper and lower high-pressure spray, cleaning guardrails, and rear and lower high-pressure hedging to achieve multi-purpose in one vehicle and have a high cost performance. |
| 2 | Excellent quality | The water tank body is made of Q345B (optional SUS304) material, the internal partition buffer structure is designed, and the chassis is framed to ensure the overall structural strength and rigidity. |
| 3 | Safe and reliable | This product pays attention to the safety of use, and the protective device effectively prevents various safety problems during operation through special design. |
| 4 | User-friendly operation | Humanized driver, the driver can complete various operations during the road cleaning operation in the cab, and can freely manipulate the product operation status according to the road conditions, the water tank is equipped with a low water level alarm system, which can realize the automatic alarm protection function to prevent the water pump from being damaged due to lack of water. |
| 5 | Easy maintenance | The water pump, pipeline and water valve are equipped with water draining and draining functions, and the high-pressure cleaning system is equipped with an air blowing and antifreeze device to avoid freezing and cracking damage of the product in a low temperature environment. |
