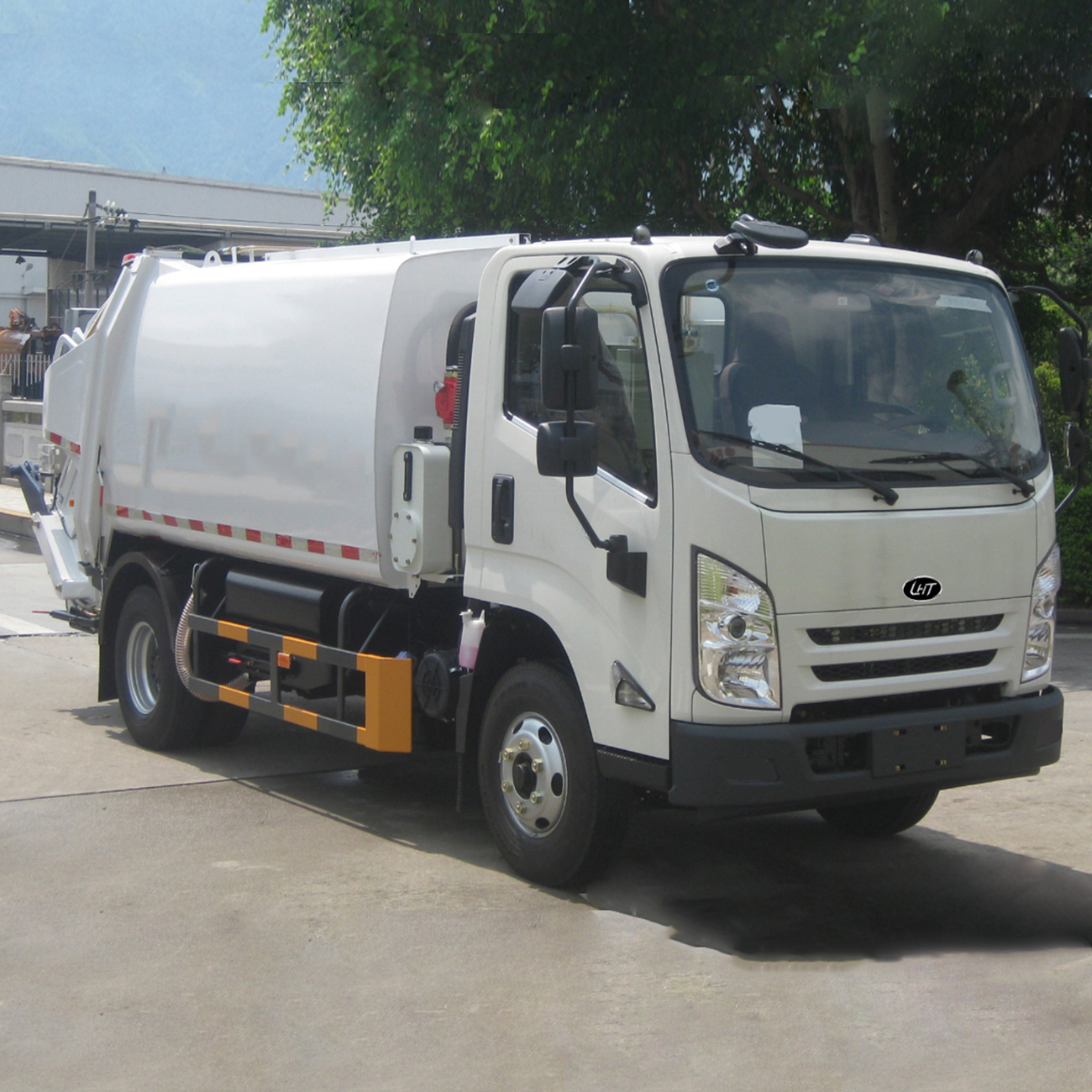

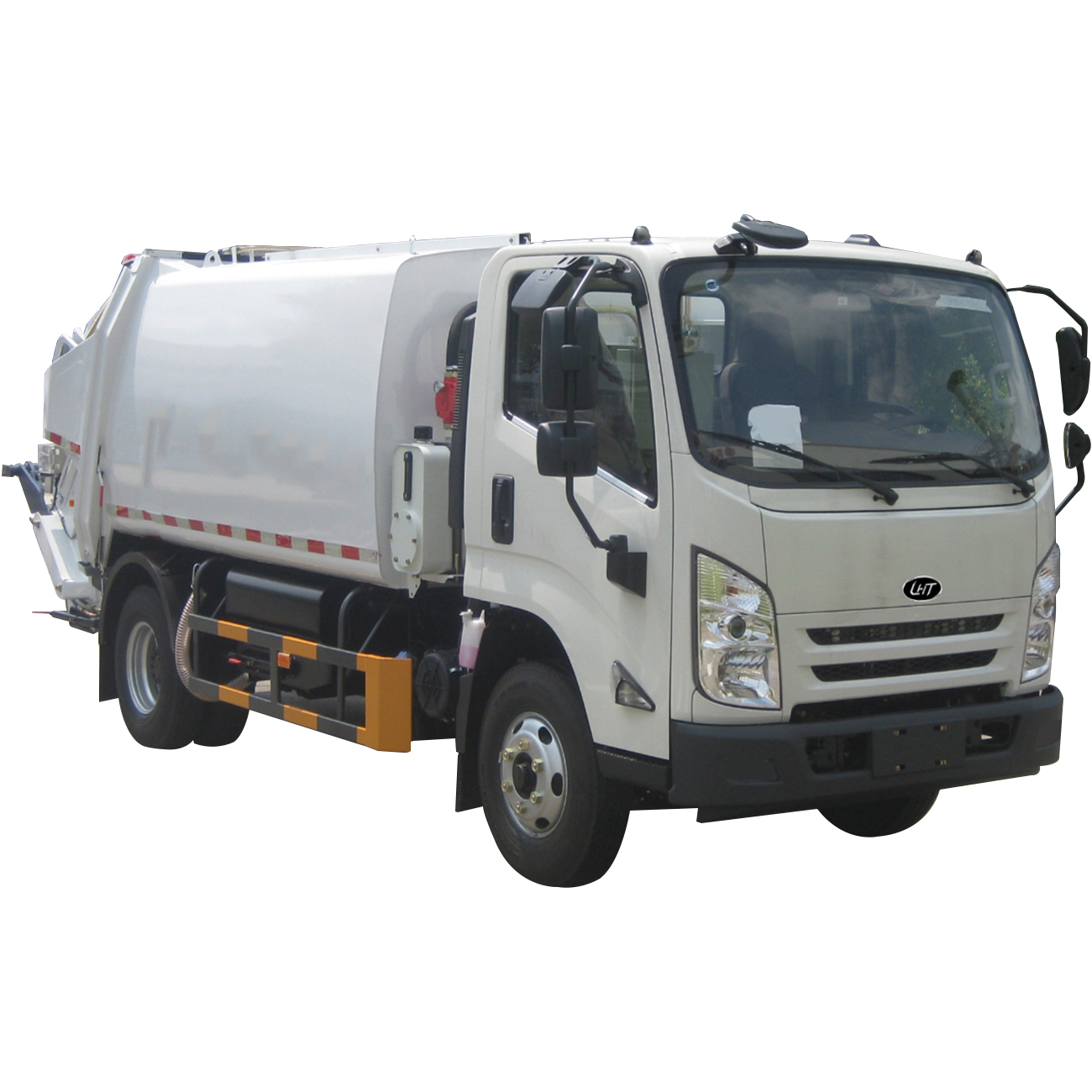

LHT5080ZYSJL6
LHT
1
1. the function of the overview
This product has the functions of garbage collection, automatic loading of garbage, two-way compression, garbage transfer and garbage dumping.
Working principle: Barrel or bulk garbage is loaded into the filler through the lifting mechanism at the rear of the vehicle, and the garbage is preliminarily crushed and compacted through the compression mechanism inside the filler. The product has advanced two-way compression function, when loading garbage, push plate first push out in place, because the oil cylinder of the push plate mechanism has a certain back pressure, produce push plate retraction resistance, only when the extrusion force of garbage is greater than the retraction resistance of push plate, push plate will retract, garbage can enter the garbage bin, so the garbage is further compacted when entering the garbage bin from the filler. With the continuous loading of garbage, the push plate is continuously retracted into place, and the whole vehicle is finally loaded. When unloading, after the filler is lifted into place, the push plate pushes the waste out of the dump. The scraper and slide automatically realize a cycle (except for the Nanjing bucket lifting mechanism) to remove the garbage remaining in the filler. The product is also equipped with a large-capacity sewage tank to effectively prevent secondary pollution caused by sewage leakage.
2. Scope of application
The product is mainly used for the collection and transportation of municipal solid waste, and is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines and wharves and other departments.

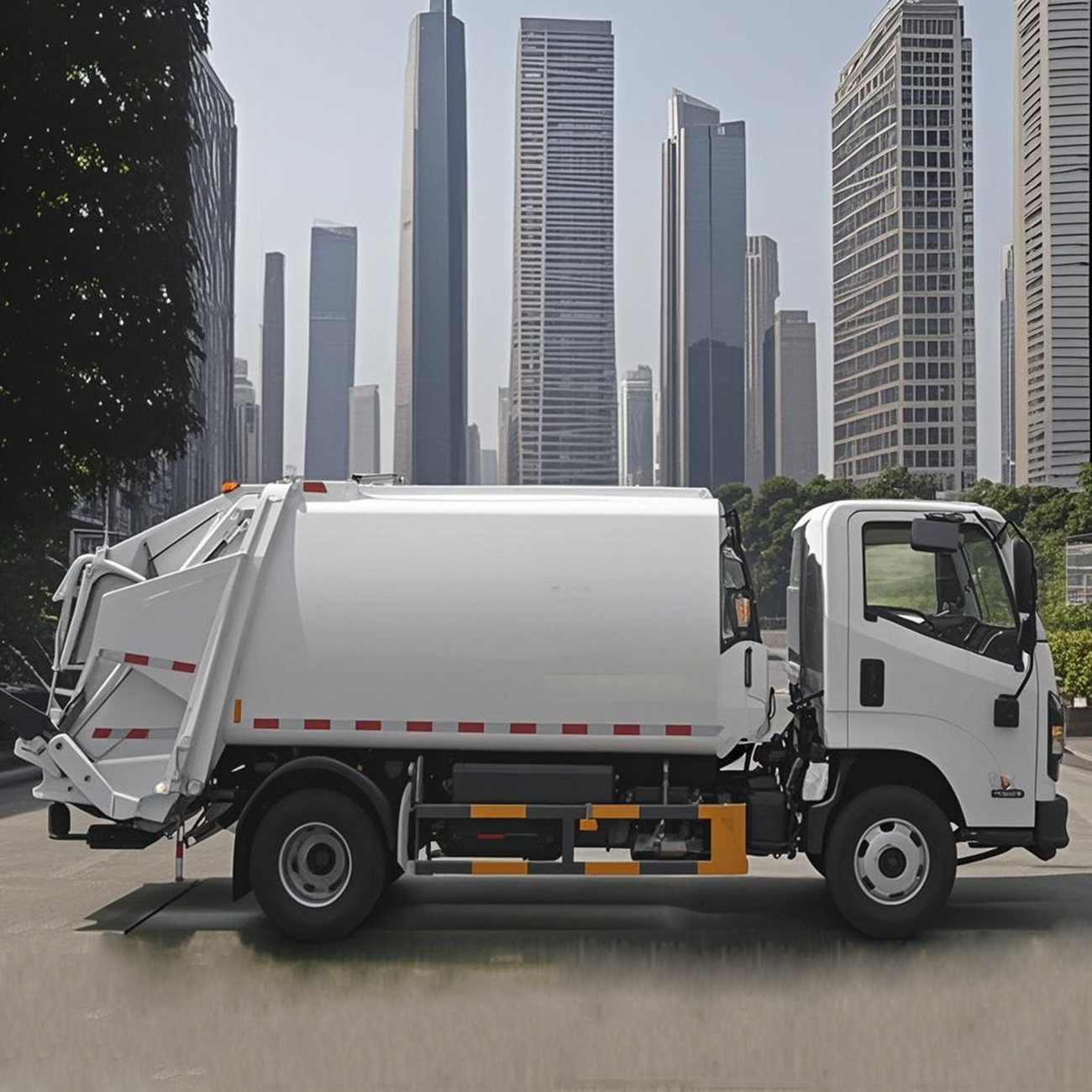

3. the main structure and performance characteristics
a chassis
Chassis: The chassis of the LHT1083TG26-type II automobile produced by Xiamen Longhuitong Automobile Technology Co.,Ltd. is modified, with strong power and strong carrying capacity.
Engine: LHT4D306H diesel engine, rated power of 112kW, rated speed of 2800r/min, emissions up to the national VI standard.
Trash cans
The effective volume of the garbage bin is 6.5m³, the box volume is large, and the work is reliable. The main components such as the garbage bin are made of high-strength weathering steel plate B480GNQR Shanghai Baosteel, and adopt arc design, which is simple and beautiful, with large effective volume, outstanding overall structural performance and strong impact resistance. The U-shaped integral molding truss groove with high strength of Japanese technology is used as the movable guide rail of the garbage push plate, which has strong compression capacity and good deformation resistance.
The garbage bin is equipped with a push plate mechanism, which can slide along the guide rail on the side, and its functions are threefold: a, the garbage is pushed out of the garbage bin when dumping the garbage; b. Closing the front end of the garbage bin; c. Reverse compress the garbage in the garbage bin to improve the compaction of the garbage.
Sewage tank
There are two sewage tanks, the right side of the tank has a volume of 170L (without skirt)/120L (with skirt), and the bottom of the stuffer has a volume of 170L. Combined with the infusion type sewage collection device, the sewage leaked due to the failure of sealing rubber strips between the stuffer and the garbage box body can be diverted to the special sewage collection box, and is equipped with a flexible, reliable and conveniently adjustable sewage tank cleaner door sealing device to effectively prevent secondary pollution caused by the leakage of sewage. It is equipped with a flexible, reliable and conveniently adjustable sealing device for the cleaning door of the sewage tank, which effectively prevents secondary pollution caused by sewage leakage.

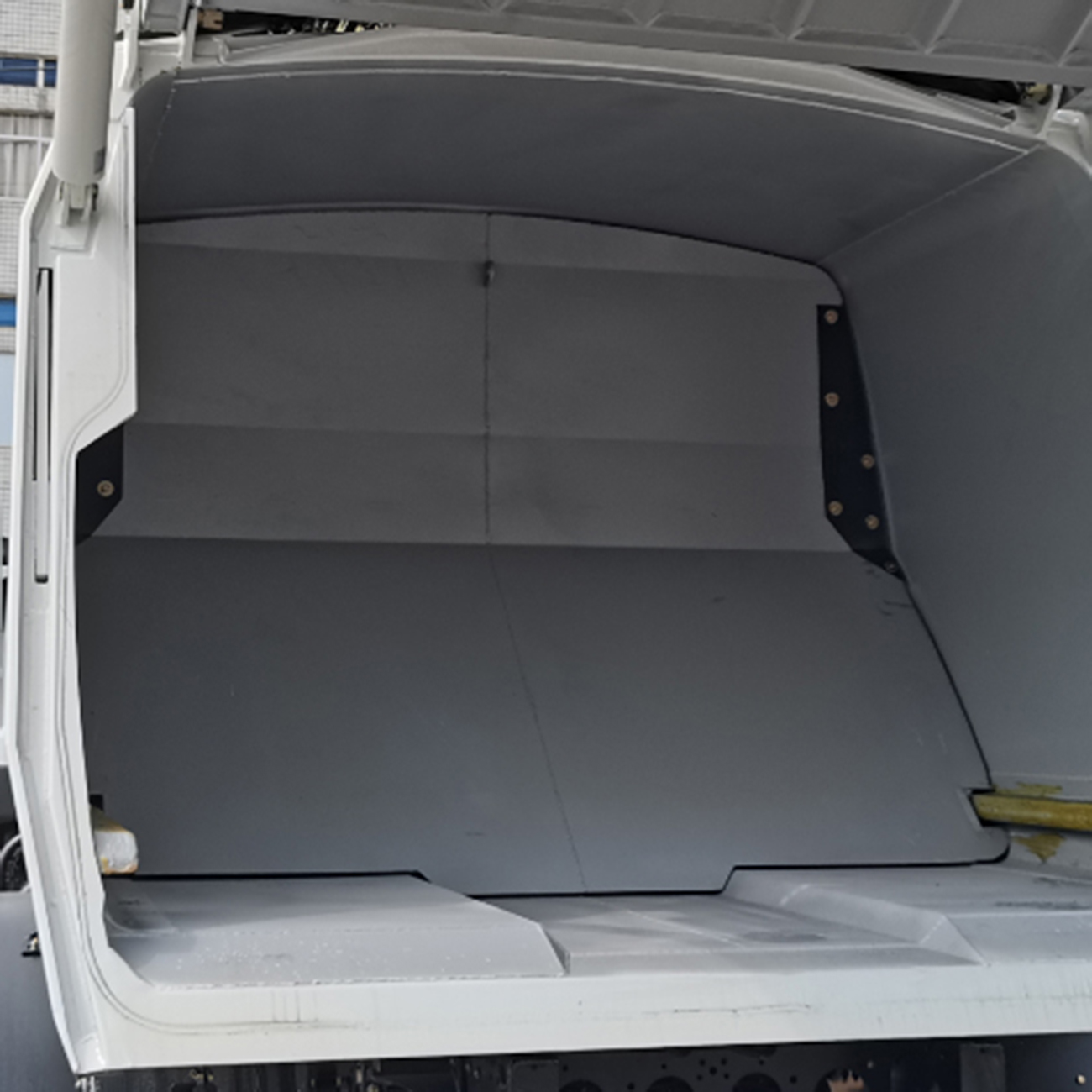

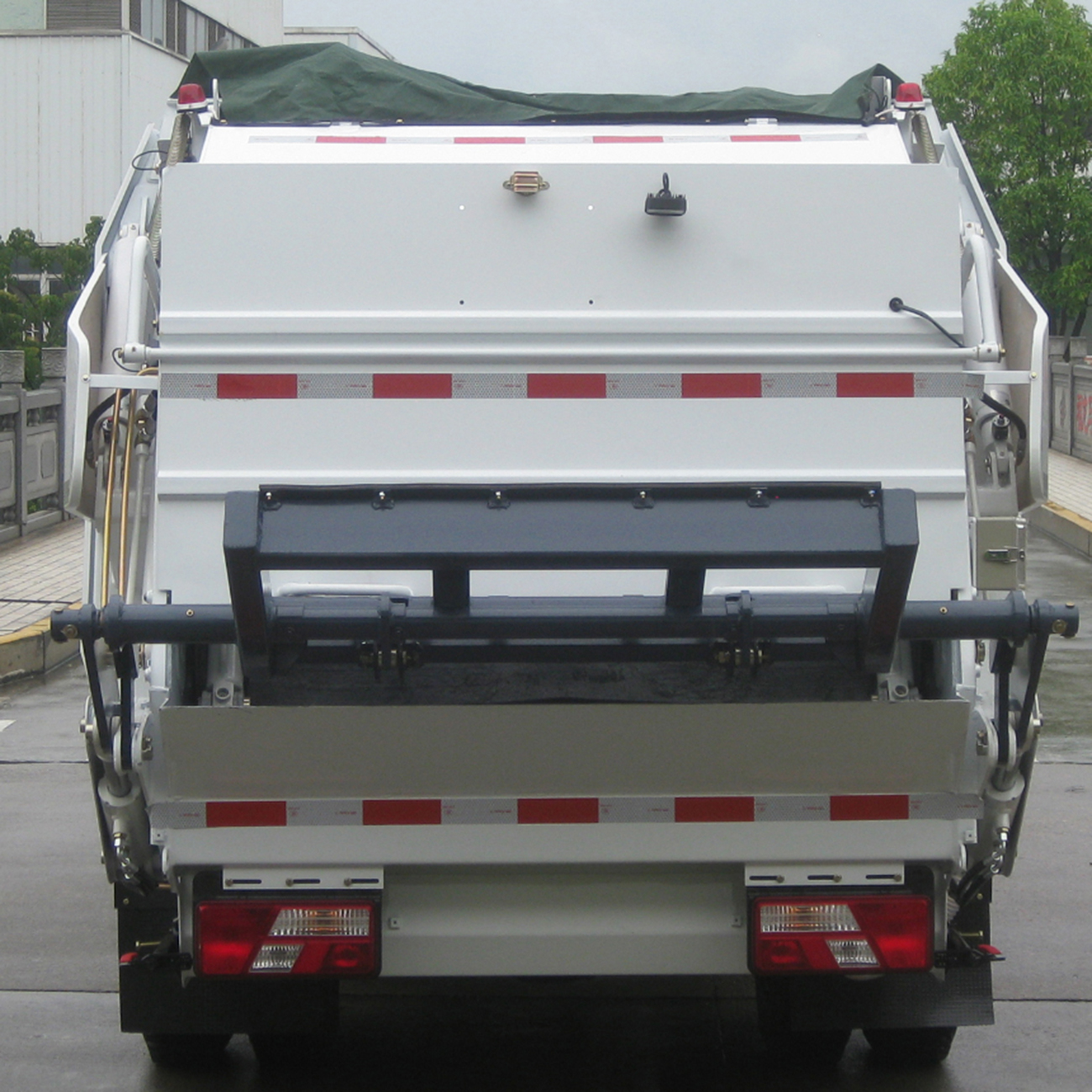

a filler
The filler is composed of a charging hopper, scraper, sliding plate, fixed plate and other components, which are used to complete the garbage crushing, compacting and pressing the dense garbage into the garbage bin. The effective volume of the packing port is 0.66 m³, the cycle time of pressing and filling is not higher than 13s, the compression density of garbage is between 0.65-0.8 t/m³, and the maximum crushing and compression force is 112 kN.
Lifting mechanism
According to the needs of users, it is equipped with various garbage truck buckets and bucket devices with a wide range of applications, including 240L bucket mechanism, 240L compatible 330L bucket mechanism, 240L compatible 660L bucket mechanism, 240L compatible 330L compatible 660L bucket mechanism, bucket lifting mechanism, bucket compatible dump mechanism, etc.
Operation mode
Driving operations:The driving is carried out according to the general car driving method. Before driving, the filler should be closed in place, so that the power take-off is in a detached state, and the power switch on the front control box panel should be turned off.

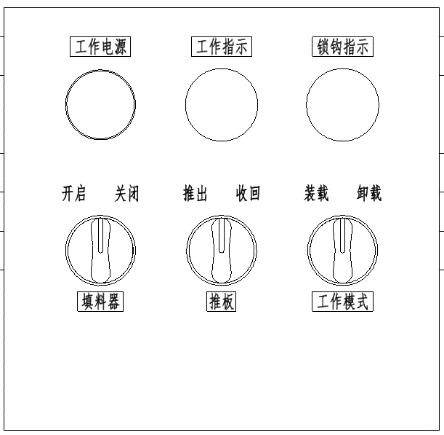

Panel diagram of fully automatic front control box (in cab)

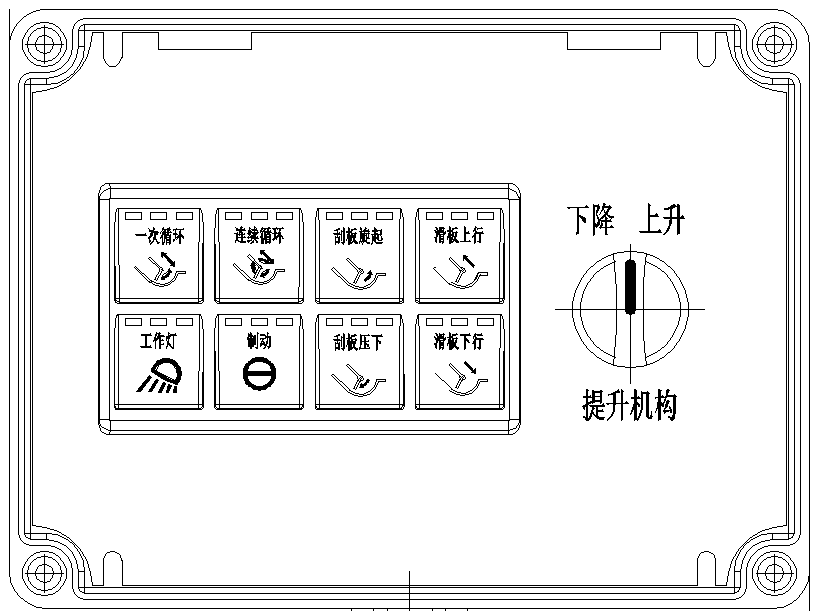

Fully electronically controlled rear control box panel (right side of filler)
4. the main technical parameters of the product
| project | specification | ||||
| Chassis model | LHT1083TG26 | ||||
| Chassis manufacturers | Xiamen Longhuitong Automobile Technology Co.,Ltd. | ||||
| Emission standards | Country VI | ||||
| Chassis engine model | LHT4D306H | ||||
| Maximum net power/speed(kw/(r/min)) | 110/2800 | ||||
| Rated power/speed(kw/(r/min)) | 112/2800 | ||||
| Displacement(ml) | 2892 | ||||
| Maximum Net Torque/Rotating Speed(N.m/(r/min)) | 435/1800 | ||||
| Transmission model | 6MTI420KA | ||||
| Transmission type | Manual | ||||
| Tire specifications | 7.50R16LT 14PR | ||||
| Wheelbase (mm). | 3360 | ||||
| Maximum Gradeability (%) | ≥30 | ||||
| Minimum turning diameter (m) | 13.5 | ||||
| Maximum total mass (kg). | 8200 | ||||
| disposition | Barrel turning device (No /skirting) | No device (No /skirting) | Tipping device 1 (No /skirting) | Tipping device 2 (No skirting) | |
| Dimensions (length×width× height (mm). | 6865×2145×2415 | 6425×2145×2415 | 6680×2145×2415 | 6680×2145×2620 | |
| Curb weight (kg). | 5850/5950 | 5650/5750 | 5950/6050 | 5950 | |
| Rated load weight (kg). | 2155/2055 | 2355/2255 | 2055/1955 | 2055 | |
| Front/rear overhang(mm) | 1125/1740 | ||||
| Extension(mm) | 640 | 200 | 455 | 455 | |
| Angle of approach/departure (°) | 20/18 | ||||
| Maximum speed (km/h). | 80 | ||||
| Number of cab passengers | 3 | ||||
| Feeding port (filler) volume (m.)³) | 0.66 | ||||
| Width of the inlet of the feeding port (filler) (mm). | 1565 | ||||
| Inlet height (unloaded) (mm) of the feeding port (filler). | ≤1050 | ||||
| Compression | Bi-directional compression | ||||
| Pressing Cycle Time (s) | ≤13 | ||||
| Discharge cycle time(s) | ≤45 | ||||
| Increased cycle time(s) | ≤11 | ||||
| Total bin volume (m.)³) | 7.4 | ||||
| Effective volume of dustbin (m.)³) | 6.5 | ||||
| Dustbin material | B480GNQR,Q345 | ||||
| Dustbin thickness (mm) | 3,4 | ||||
| Sewage tank volume (L). | No skirting | 340 = front (right) 170 + rear 170 | |||
| There is a skirt | 290 = front (right) 120 + rear 170 | ||||
| Sewage tank material | Q235 | ||||
| Thickness of sewage tank (mm) | 3 | ||||
| Garbage compression density (t/m3). | 0.65-0.8 | ||||
| Maximum crushing compression force (kN). | 112 | ||||
| Maximum pushing force (kN). | 156 | ||||
| Hydraulic system working pressure (MPa). | 18 | ||||
| Cab temperature control measures | Equipped with original air conditioning and heating | ||||
5. the main advantages of the product
| serial number | Advantageous points | Description |
| 1 | Superior performance | The product adopts modular design, and can be equipped with a variety of compatible lifting mechanisms, such as barrels, buckets, and a variety of compatible lifting mechanisms, which has a high cost performance. |
| 2 | Excellent quality | The main components such as garbage bins are made of high-strength weathering steel plates B480GNQR Shanghai Baosteel, and adopt arc design, which is simple and beautiful, with large effective volume, outstanding overall structural performance and strong impact resistance. |
| 3 | Safe and reliable | This product pays attention to the safety of use, and the special design of guards and safety devices effectively prevents various safety problems during operation. |
| 4 | User-friendly operation | The controller intelligent control system is adopted, which can be centrally controlled in the cab. It has automatic and manual dual sets of control modes, which can control the operation of garbage trucks in one position such as the cab, the middle of the vehicle, and the rear of the vehicle, which is convenient and efficient. And there is an interface for wireless remote control operation. |
| 5 | Easy maintenance | The sewage tank is equipped with a cleaning door to facilitate flushing and maintenance, and a detachable window is provided at the chute of the compression mechanism to facilitate the replacement of wearing parts. |
