| Quantity: | |
|---|---|
LHT5110TSLQL6
LHT
1
1. the function of the overview
It has the functions of pavement cleaning, mechanized cleaning of concrete pavement and asphalt pavement.
2. Scope of application
It is suitable for mechanized cleaning and cleaning of cement concrete pavement and asphalt concrete pavement such as highways, urban roads, viaducts, squares, airports, docks, residential roads, squares, sidewalks, etc.
3. the main structure and performance characteristics
Chassis

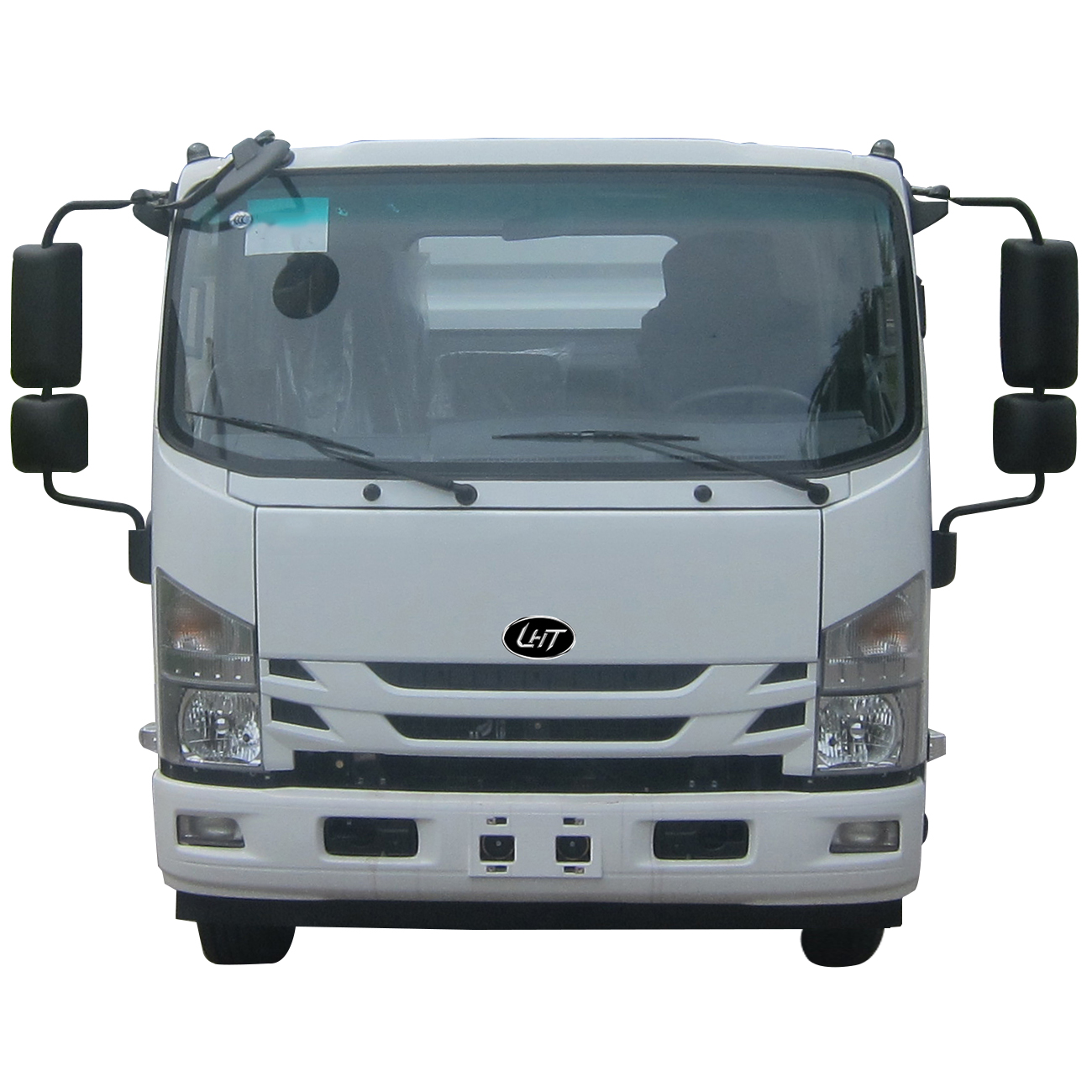

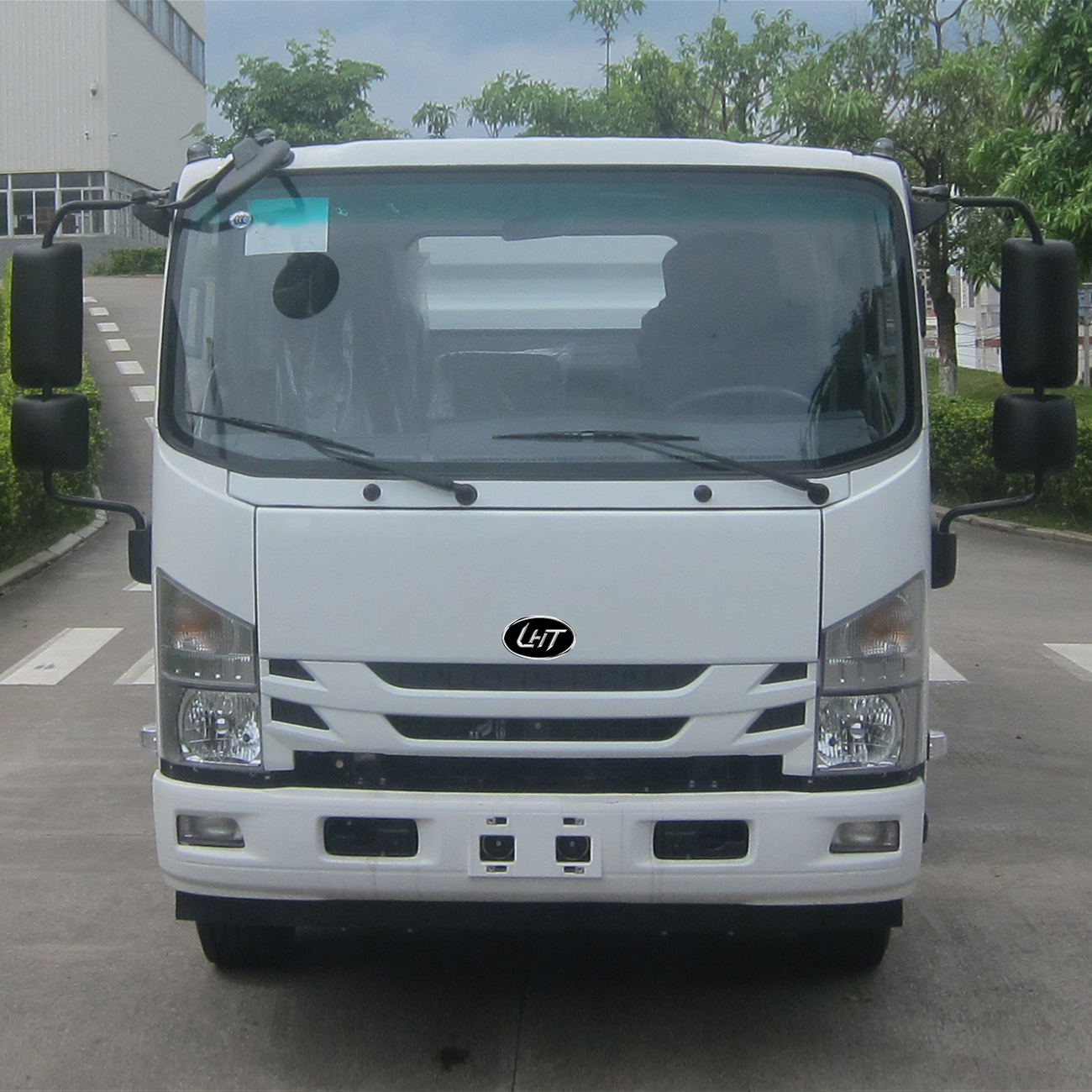

Chassis. The LongHuiTong LHT1110ANMACY type II automobile chassis modified by Xiamen Longhuitong Automobile Technology Co.,Ltd.is the most advanced and reliable national VI emission commercial vehicle chassis produced by Xiamen Longhuitong Automobile Technology Co.,Ltd., which is the most advanced and reliable national VI emission commercial vehicle chassis in China.
Engine. It adopts LongHuiTong 4HK1-TCG61 diesel engine, with a rated power of 139kW and a rated speed of 2600r/min, and its emissions meet the national VI standard.
The secondary engine and its transmission device
Auxiliary engine. It adopts JMC JX493ZG4 diesel engine, with a rated power of 74.8kW and a rated speed of 3000r/min, and its emissions meet the national IV standard.
Trash bins
The garbage bin is made of SUS304 single-layer integral stainless steel material, with high structural strength, no rust, and a garbage bin volume of 6m³.
Nozzle

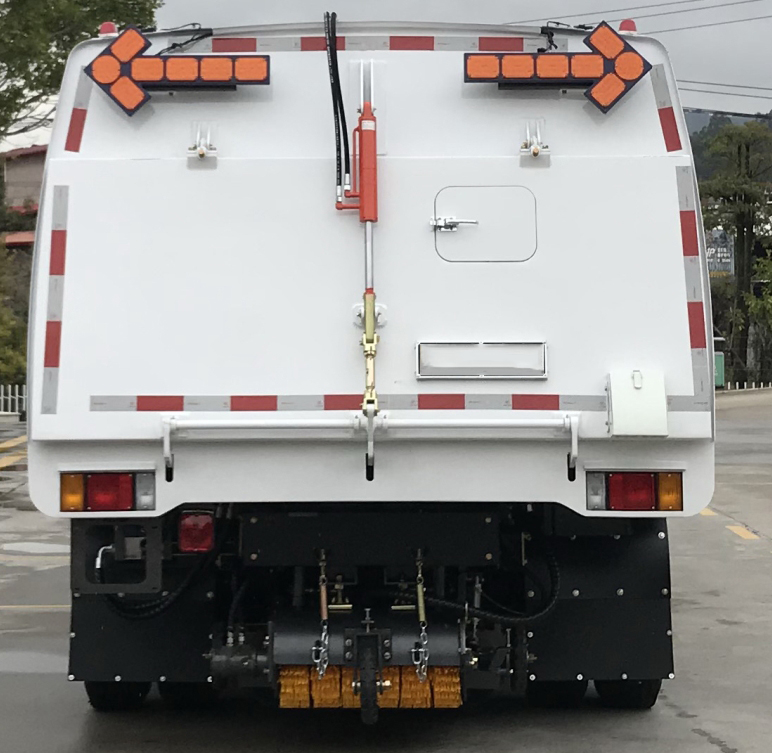

Adopt a rolling sweeping leaf suction nozzle with built-in rolling sweeping to eliminate garbage omission; It has an enhanced dust pressing function device, which can adapt to the cleaning of the road surface with thick dust; Three-point floating support of rolling rubber wheels, which can adapt to the cleaning requirements of different road surfaces; It is equipped with a lifting and adjusting device for the touching roller of the sanitation vehicle, which can quickly and conveniently adjust the position of the roller; The front baffle of the nozzle can be controlled and flipped by the cylinder to increase the opening of the inlet of the nozzle, which is conducive to the suction of light objects such as leaves.
Cleaning device

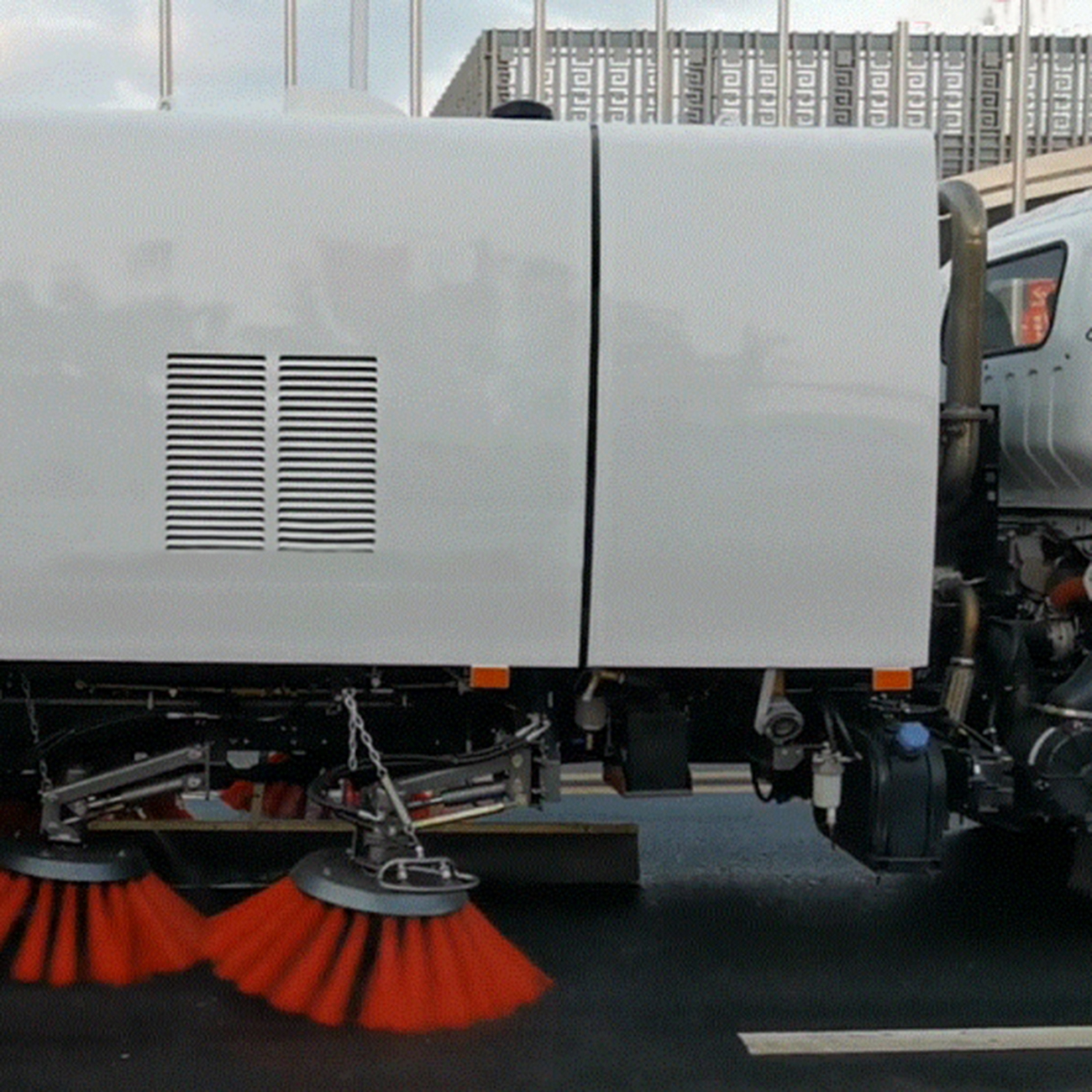

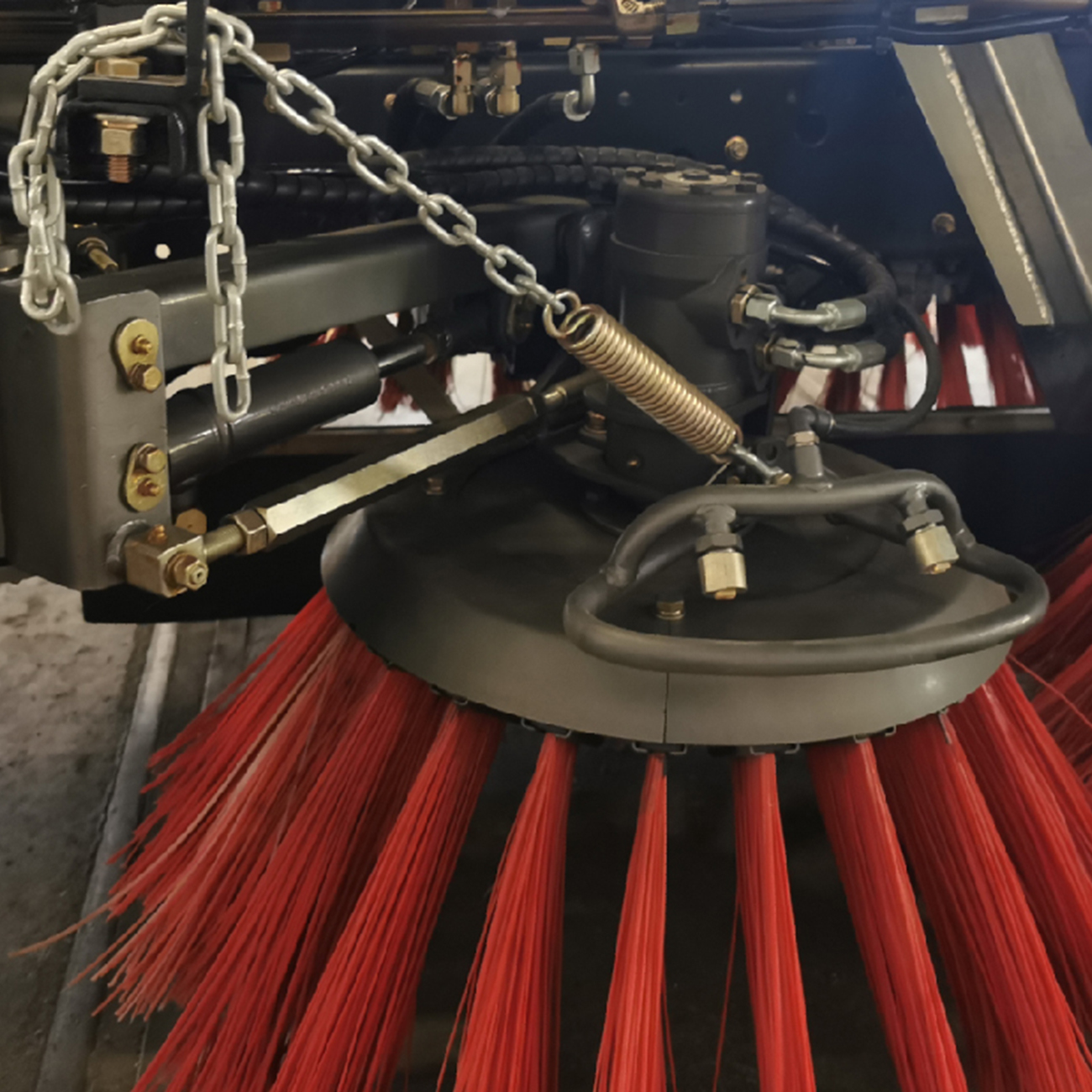

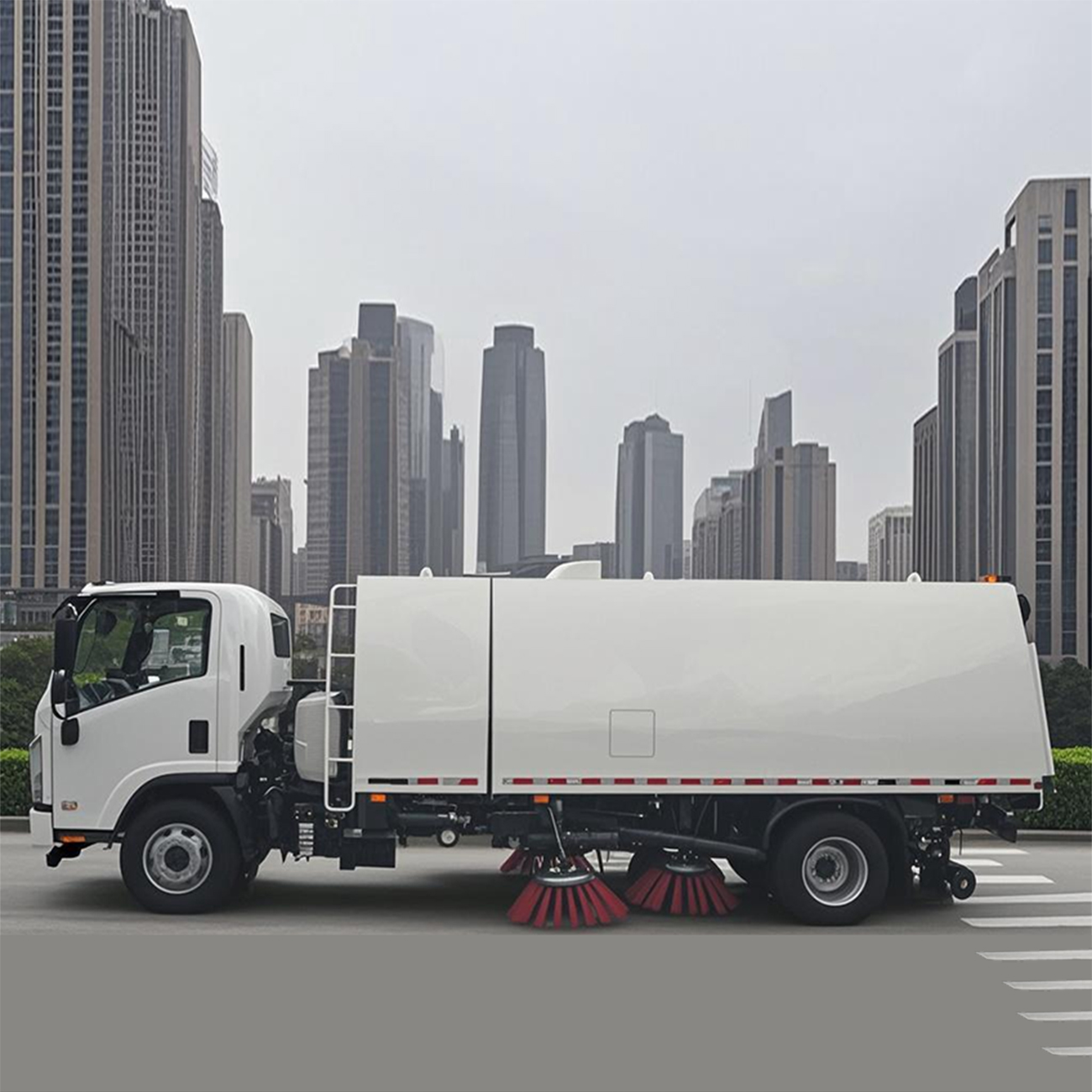

Four-disc sweep in the center + suction nozzle in the rear, sweeping disc can automatically avoid obstacles; The sweeping disc has up to 3 operating modes: full sweep, left sweep (optional), right sweep (optional), to achieve road cleaning and vacuuming.
Electronic control system
The vehicle adopts the control mode of the bus operation panel. and stops, the operating devices such as nozzle lifting, sweeping disc retraction and retraction are all controlled by one key, which is easy to operate.The display is located on the center console panel of the chassis, and there are multiple button definitions under the display, which can be pressed to enter the corresponding interface.
Job mode. /b11> The system is set up with a variety of operation modes such as full sweep, left sweep (optional), right sweep (optional). Users can select the appropriate operation mode according to the needs of the operation. After the operation mode is selected, the operation will be started with one click, and all the mechanisms that need to participate in the operation will automatically extend and run the operation in the prescribed order. When it is necessary to stop the operation, it will stop with one key, and all the operating mechanisms in the work will automatically stop the operation and retract to the original state in the specified order.
Auxiliary engine speed control device.The operating speed of the auxiliary engine is controlled by the throttle speed knob on the operation panel.
The vehicle is equipped with a color video rearview system. Cameras are mounted at the rear and right side of the vehicle, and color displays are installed in the cab. During operation, the cleaning effect can be checked and monitored in the cab. Navigation is possible when reversing to prevent rear-end collisions.
Alarm system. /b11>The car is equipped with an alarm system that can send out alarm and prompt information during operation and unloading, and can also be equipped with a number of music prompt information and alarm information, etc., which is convenient and practical.
4. the main technical parameters of the product
| project | parameter |
| Chassis model | LHT1110ANMACY |
| Chassis manufacturer | Xiamen Longhuitong Automobile Technology Co.,Ltd. |
| Chassis engine model | 4HK1-TCG61 |
| Chassis engine maximum net power / speed / displacement kw / (r / min) / ml | 138/2600/5193 |
| Chassis engine rated net power / speed / displacement kw / (r / min) / ml | 139/2600/5193 |
| Sub-engine model | Standard |
| JX493ZG4 | |
| Auxiliary engine rated power/speed(kW/(r/min)) | 74.8/3000 |
| Transmission model | MLD-6Q |
| Transmission type | Manual transmission |
| Tire specifications | 235/75R17.5 16PR |
| Wheelbase (mm). | 4475 |
| Maximum Climbing Angle (% | 20 |
| Minimum turning diameter (m) | 17.5 |
| Maximum total mass (kg). | 10550 |
| disposition | disposition |
| Dimensions (length×width× height (mm). | 7280×2240×2535 |
| Curb weight (kg). | 6800 |
| Rated load weight (kg). | 3555 |
| Front/rear overhang(mm) | 1110/1695 |
| Angle of approach/departure (°) | 20/8 |
| Maximum speed(km/h) | 110 |
| Number of cab passengers | 3 |
| Maximum cleaning width (m) | 3.2 |
| Nozzle width (mm) | 900 |
| Sweep disc diameter(mm) | 490 |
| Sweep disc extension distance(mm) | 2780 |
| Maximum suction particle size (mm) | 100 |
| Sweeping speed (km/h). | 3~20 |
| Maximum cleaning capacity (m2/h) | 64000 |
| Cleaning efficiency (%) | ≥96 |
| Discharge angle(°) | ≥45 |
| Clean water tank volume (m.)³) | 2.2 |
| Clean water tank material and wall thickness | standard Q345 / t3; optional SUS304 / t3 |
| Dustbin volume (m.)³) | 6 |
| Dustbin material and wall thickness | SUS304/t3 (power compartment Q235B/t3). |
| Cab temperature control measures | Equipped with original air conditioning and heating |
5. the main advantages of the product
| serial number | Advantageous points | illustrate |
| 1 | Superior performance | (1) Advanced structure. /b20>The whole vehicle adopts a central four-disc sweep + rear suction nozzle for sweeping and suction, and wet dust removal. (2) The structure of the garbage bin is advanced. /b20>The garbage bin is made of SUS304 single-layer integral stainless steel material, with high structural strength and no corrosion; The side of the box shape has a large curved shape, sharp and corner transition, sharp edges and corners, and high-end atmosphere; And it has a drainage and leakage prevention device to effectively prevent the accumulation of dirt, prevent the secondary pollution caused by the dirt falling back to the ground and blocking the garbage straw; (3) Excellent fan performance. /b20>It has the characteristics of high efficiency, low noise, flat performance curve and wide efficiency area. It is one of the important accessories for the long-term supporting of Fulong Continental road sweeper, with mature technology and reliable work. |
| 2 | Excellent quality | High fitting configuration. Relief valves, main and auxiliary engines, electrical control components, etc. are well-known international or domestic brands, with excellent quality and high reliability; And all fasteners are galvanized, sweep plates, suction nozzles and other structural parts are treated with pickling and phosphating after electrostatic spraying, strong adhesion, coating corrosion resistance, weather resistance. |
| 3 | Safe and reliable | (1) Equipped with alarm system. The car is equipped with an alarm system that can send out a variety of alarm prompts during operation and unloading, which is convenient and practical. (2) Lighting system. In order to facilitate the operation at night or in an environment with insufficient brightness, the working condition of the sweeping disc is monitored, and the left and right sweeping discs are equipped with lights. (3) A variety of automatic protection devices. This road sweeper is equipped with low water level of clean water tank, operation prompt, auxiliary engine water temperature, oil pressure, reversing prompt, hydraulic oil leakage alarm, garbage bin tipping, reset and rear door opening and closing safety alarm devices. (4) Equipped with garbage bin safety struts. To ensure the safety of operators and equipment, safety struts are provided at the lower part of the bin. During commissioning, installation, testing and maintenance, it is necessary to jack up the garbage bin. nt. (5) Equipped with pneumatic net pipe antifreeze device. /b20>Effectively remove the residual water in the waterway system, prevent the pipeline system from freezing and cracking at low temperatures, and improve the utilization rate of vehicles; |
