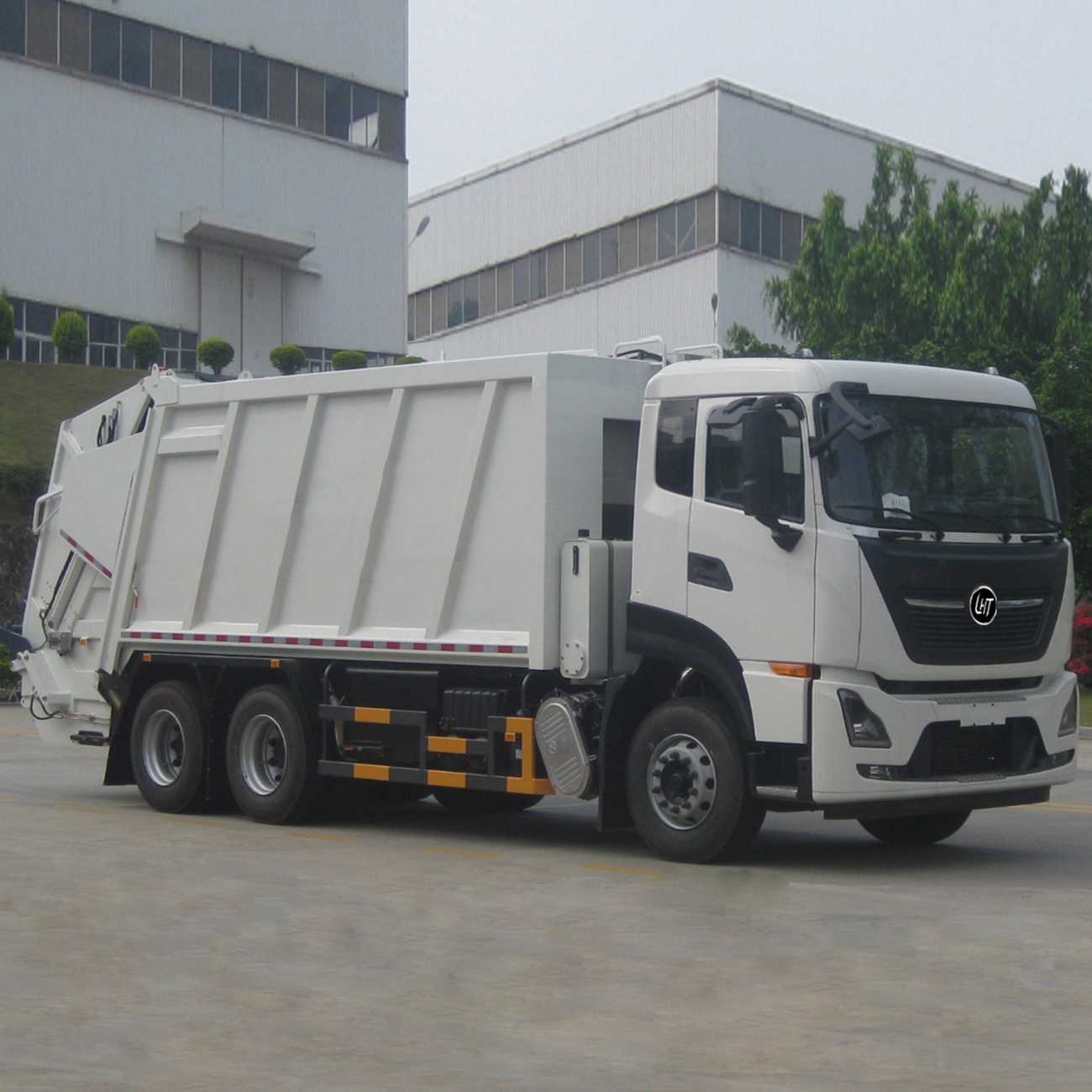

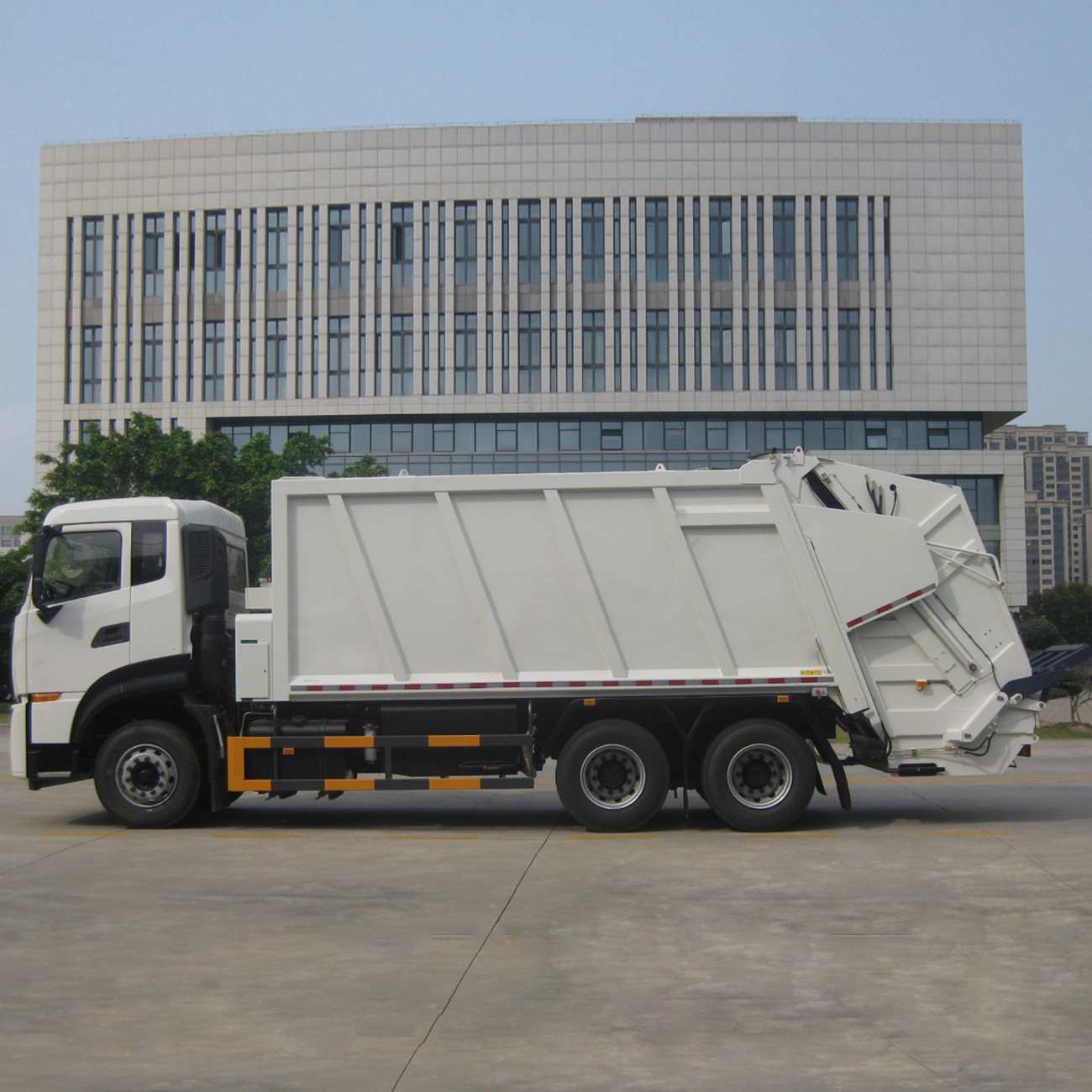

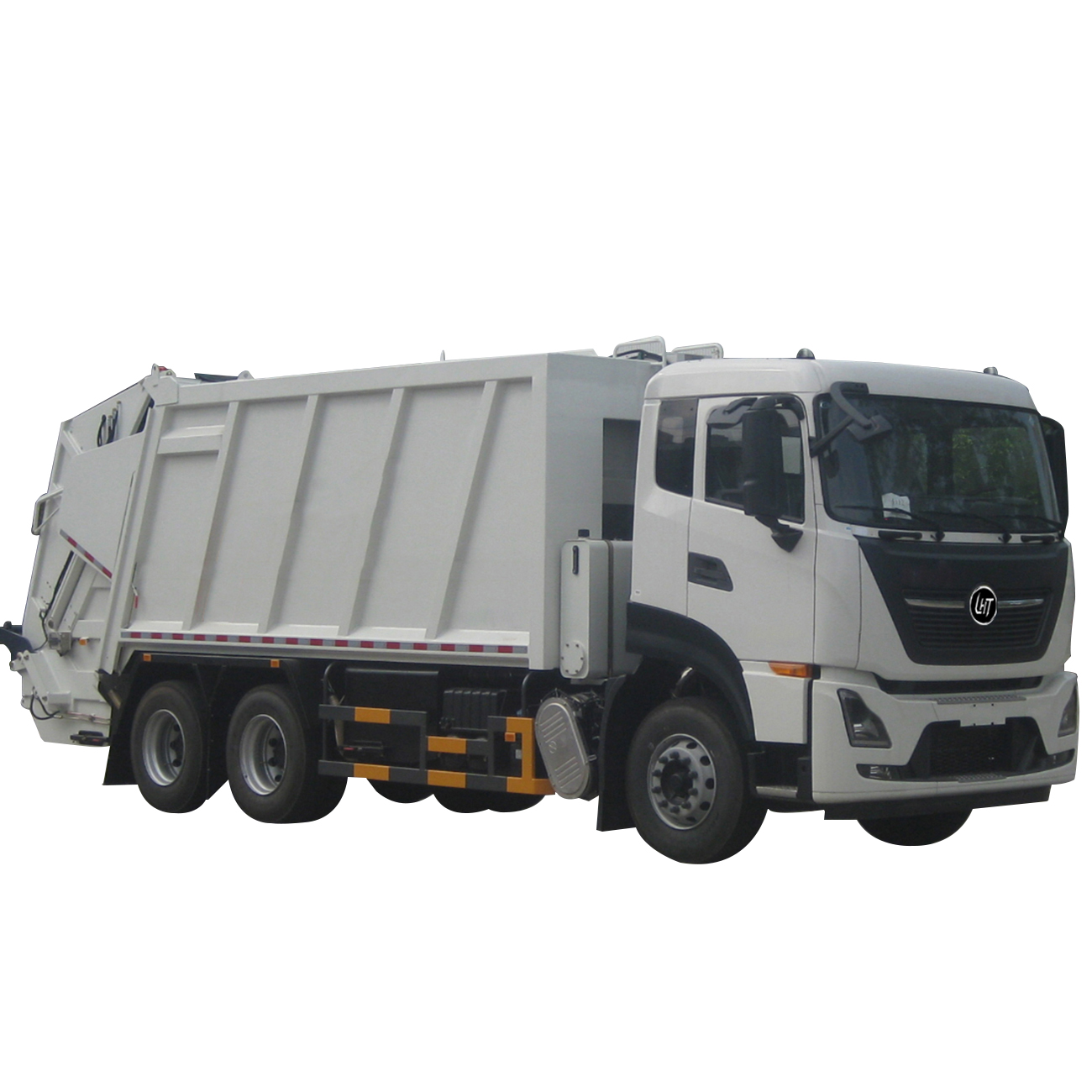

LHT5250ZYSDF6
LHT
1
1.Function Overview
This product has functions such as garbage collection, automatic loading and unloading of garbage in both directions, garbage transfer, and garbage dumping.
Working Principle: The garbage is loaded into the filler through the lifting mechanism at the rear of the vehicle. The internal compression mechanism of the filler crushes and compresses the garbage. This product has an advanced bidirectional compression function. When loading garbage, the push plate is pushed out to the proper position first. Due to the certain back pressure of the oil cylinder of the push plate mechanism, there is a resistance for the push plate to retract. Only when the squeezing force of the garbage is greater than the retraction resistance of the push plate will the push plate retract and the garbage can enter the garbage box. Therefore, the garbage is further compressed when it enters the garbage box from the filler. As the garbage is continuously loaded, the push plate continuously retracts to the proper position, and the entire vehicle is finally loaded. When unloading, the filler is raised to the proper position, and the push plate pushes the garbage out for dumping. The scraper and slide plate automatically complete a cycle (except for the lifting mechanism of the Nanjing Dou). The garbage remaining in the filler is cleared away. This product is also equipped with a large-capacity sewage tank to effectively prevent secondary pollution caused by sewage leakage.
2.Application Scope
This product mainly collects and transports urban domestic garbage and is an ideal garbage collection and transportation vehicle for urban environmental sanitation departments, factories, mines, and docks.
3.the main structure and performance characteristics

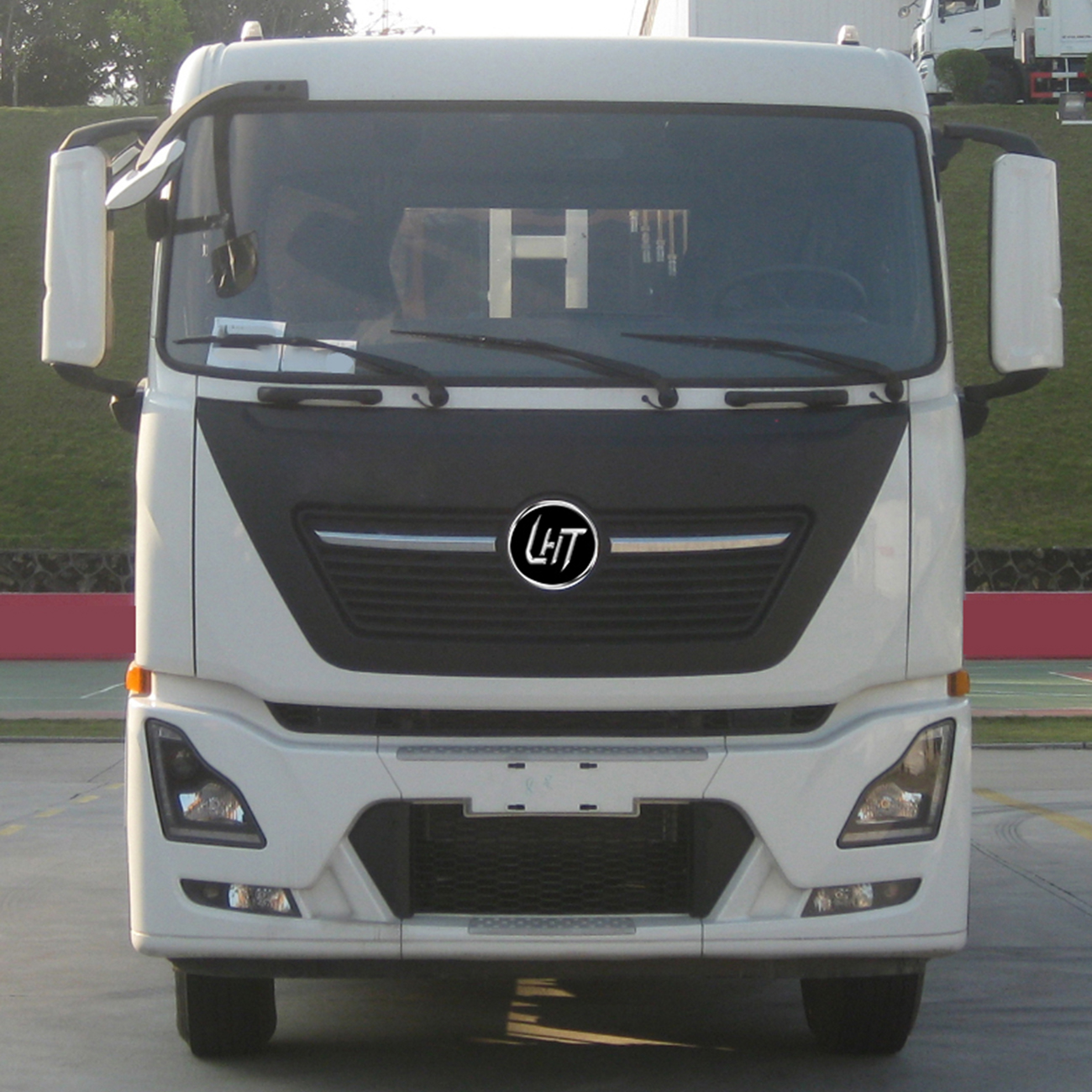

a chassis
Chassis: Dongfeng Commercial Vehicle Co., Ltd. LHT1250D4 type II automobile chassis modification, strong power, strong carrying capacity.
Engine: Dongfeng Cummins Engine Co., Ltd. D6.7NS6B290 engine, rated power 213kW, rated speed 2300r/min /b18>, the emissions have reached the national VI standard.
Trash cans
The effective volume of the bin is 20 m³. The box has a large volume and works reliably. The main components such as the garbage bin are made of high-strength steel plates, and the frame plate design is adopted, which is simple and beautiful, with large effective volume, outstanding overall structural performance and strong impact resistance. The high-strength U-shaped integral forming channel steel is used as the movable guide rail of the garbage push plate, which has strong compression capacity and good deformation resistance.
The garbage bin is equipped with a push plate mechanism, which can slide along the guide rail on the side, and its functions are threefold: a, the garbage is pushed out of the garbage bin when dumping the garbage; b. Closing the front end of the garbage bin; c. Reverse compress the garbage in the garbage bin to improve the compaction of the garbage.
Sewage tank
There are three sewage tanks, the left and right sewage tanks at the bottom of the box are 480L and 410L, and the sewage tank at the bottom of the filler is 380L. Combined with the diversion sewage collection device, the sewage leaking due to the failure of the sealing strip between the filler and the garbage tank can be drained into the special sewage collection tank, and it is equipped with a flexible, reliable and convenient adjustment sewage tank cleaning door sealing device to effectively prevent secondary pollution caused by sewage leakage.

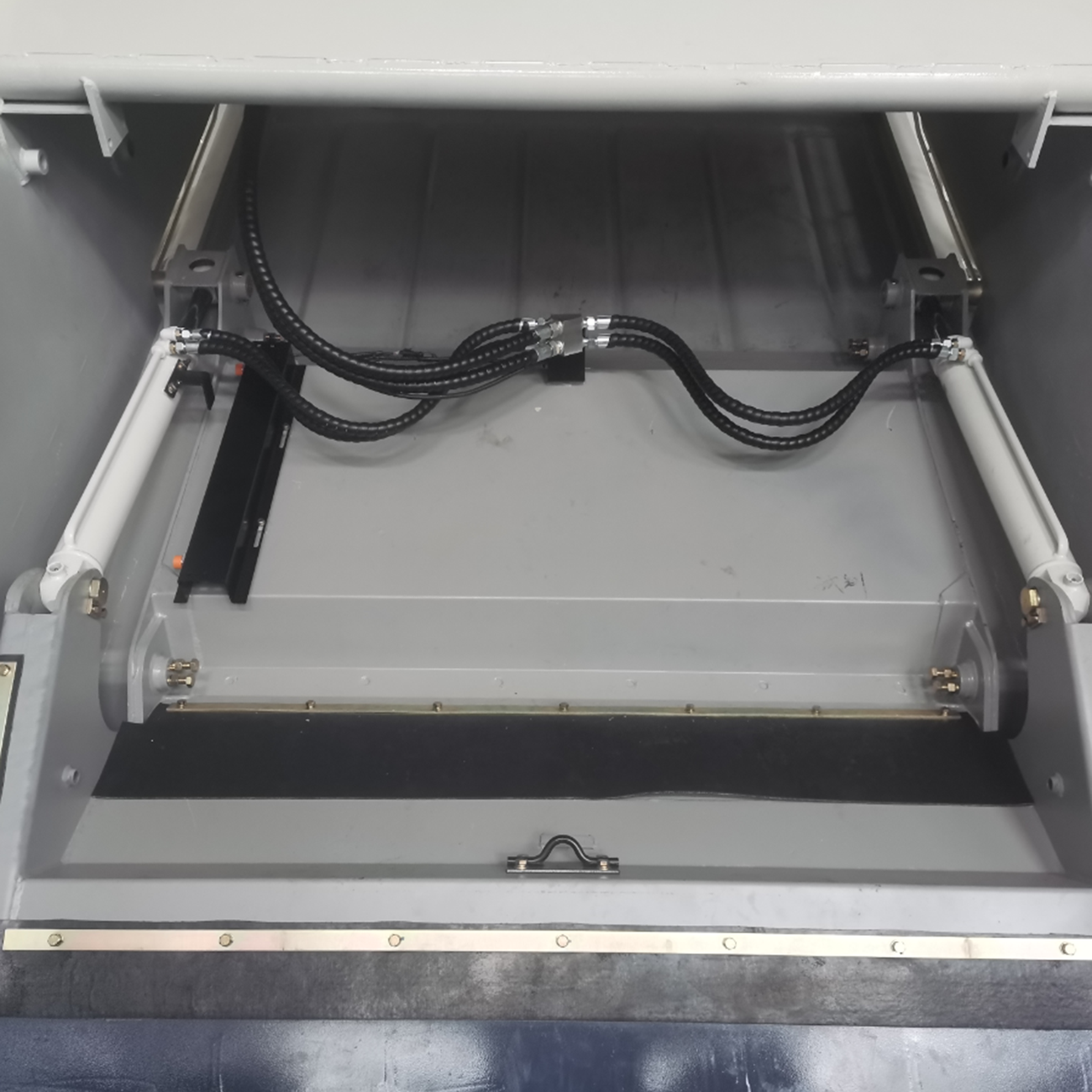

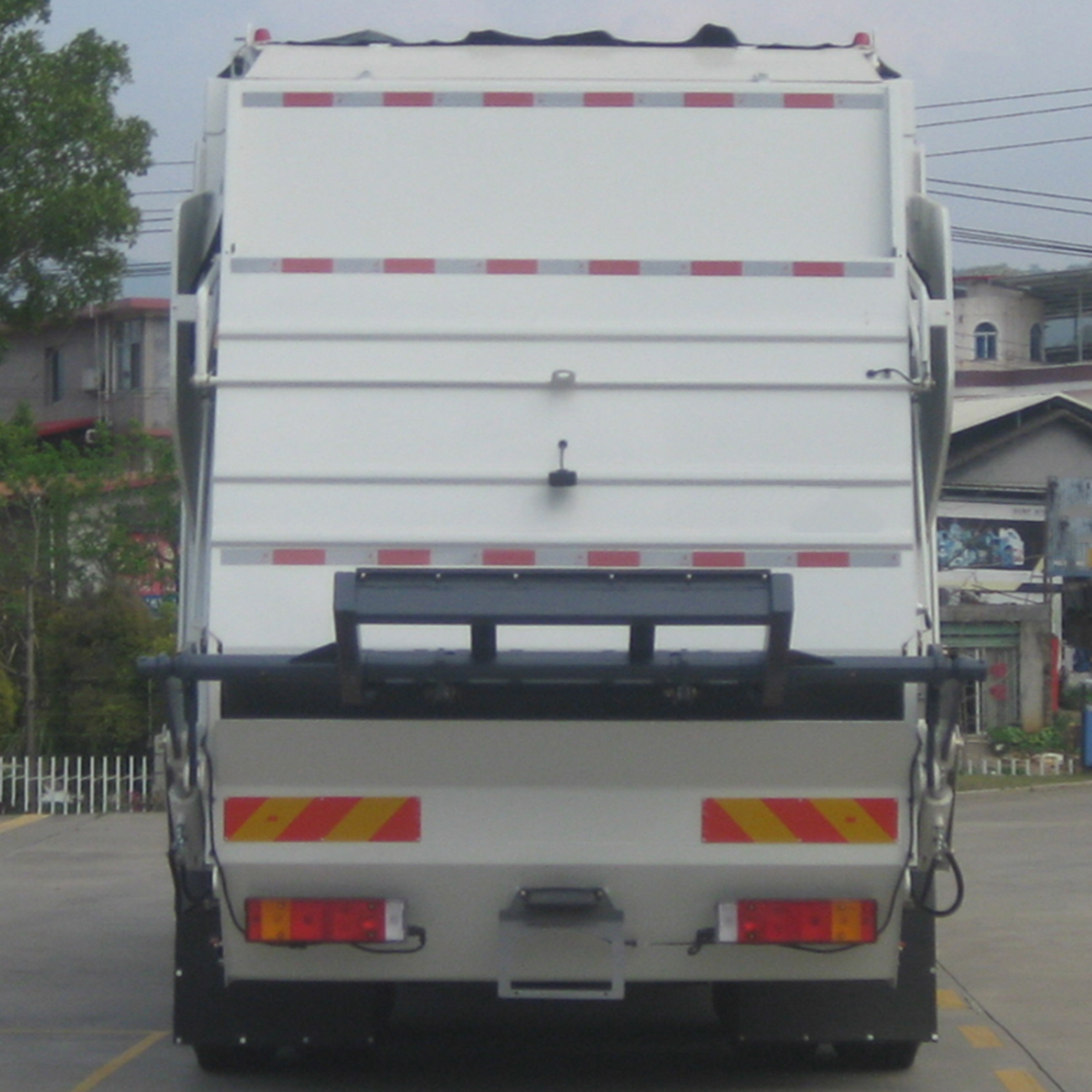

a filler
The filler is composed of a charging hopper, scraper, sliding plate, fixed plate and other components, which are used to complete the garbage crushing, compacting and pressing the dense garbage into the garbage bin. The effective volume of the packing port is 1.3 m³, the cycle time of the filling is not higher than 25s, the compression density of the garbage is between 0.65-0.8 t/m³, and the maximum crushing and compression force is 186 kN.
Lifting mechanism
According to the needs of users, it is equipped with various garbage truck buckets and bucket devices with a wide range of applications, including 240L bucket mechanism, 330L round iron bucket mechanism, 240L compatible 660L bucket mechanism, 240L compatible 330L round iron bucket compatible 660L bucket mechanism, Dump bucket lifting mechanism, bucket compatible dump mechanism, etc.
Operation mode
Driving operations
The driving is carried out according to the general car driving method. Before driving, the filler should be closed in place, so that the power take-off is in a detached state, and the power switch on the front control box panel should be turned off.

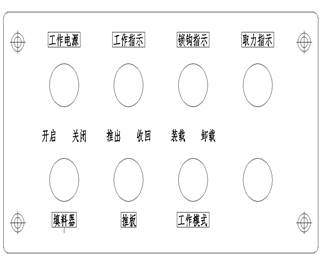

Panel diagram of fully automatic front control box (in cab)
Fully electronically controlled rear control box panel (right side of filler)
4.the main technical parameters of the product
| project | parameter | |||
| Chassis model | LHT1250D4 | |||
| Chassis manufacturer | Long Huitong New Energy Vehicle Co., Ltd. | |||
| Emission standards | Country VI. | |||
| Chassis engine model | D6.7NS6B290 | |||
| Maximum net power/speed(kw/(r/min)) | 208/2300 | |||
| Rated power/speed(kw/(r/min)) | 213/2300 | |||
| Displacement(ml) | 6700 | |||
| Maximum torque/speed(N.m/(r/min)) | 1100/1100 | |||
| Transmission model | DC8JS1200TC | |||
| Transmission type | Manual | |||
| Tire specifications | 295/80R22.5 18PR | |||
| Wheelbase (mm). | 4350+1350 | |||
| Maximum Climbing Angle (% | ≥30 | |||
| Minimum turning diameter (m) | 18 | |||
| Maximum total mass (kg). | 25000 | |||
| disposition | Configuration A | Configure B | Configure C | Configure D |
| Dimensions (length×width× height (mm). | 10435×2530×3555 | 9980×2530×3555 | 10435×2530×3555 | 10315×2530×3555 |
| Curb weight (kg). | 15100 | 14960 | 15230 | 15230 |
| Rated load weight (kg). | 9705 | 9845 | 9575 | 9575 |
| Front/rear overhang(mm) | 1480/3255 | 1480/2800 | 1480/3255 | 1480/3135 |
| Extension(mm) | ||||
| Angle of approach/departure (°) | 22/13 | 22/13 | 22/13 | 22/11 |
| Maximum speed(km/h) | 89 | |||
| Number of cab passengers | 3 | |||
| Feeding port (filler) volume (m.)³) | 1.3 | |||
| Width of the inlet of the feeding port (filler) (mm). | 1960 | |||
| Inlet height (unloaded) (mm) of the feeding port (filler). | ≤1280 | |||
| Compression | Bi-directional compression | |||
| Pressing Cycle Time (s) | ≤25 | |||
| Discharge cycle time(s) | ≤83 | |||
| Lifting bucket lifting cycle time (s) | ≤11 | |||
| Total bin volume (m.)³) | 22 | |||
| Effective volume of dustbin (m.)³) | 20 | |||
| Dustbin material | Q345B+Q235B | |||
| Dustbin thickness (mm) | 4 | |||
| Sewage tank volume (L). | 1270 = front (left, right) (480, 410) + rear 380 | |||
| Sewage tank material | Q235B | |||
| Thickness of sewage tank (mm) | 3 | |||
| Garbage compression density (t/m3). | 0.65-0.8 | |||
| Maximum crushing compression force (kN). | 186 | |||
| Maximum pushing force (kN). | 248 | |||
| Hydraulic system working pressure (MPa). | 21 | |||
| Cab temperature control measures | Equipped with original air conditioning and heating | |||
5.the main advantages of the product
| serial number | Advantageous points | Description |
| 1 | Superior performance | The product adopts modular design, and can be equipped with a variety of compatible lifting mechanisms, such as barrels, buckets, and a variety of compatible lifting mechanisms, which has a high cost performance. |
| 2 | Excellent quality | The main components such as the garbage bin are made of high-strength steel plates, and the frame plate design is adopted, which is simple and beautiful, with large effective volume, outstanding overall structural performance and strong impact resistance. |
| 3 | Safe and reliable | This product pays attention to the safety of use, and the special design of guards and safety devices effectively prevents various safety problems during operation. |
| 4 | User-friendly operation | The driver is humanized and adopts the controller intelligent control system. With automatic and manual double sets of operation modes, it can control the operation of garbage trucks in one place in the cab, middle of the vehicle, and rear of the vehicle, which is convenient and efficient. |
| 5 | Easy maintenance | The sewage tank is equipped with a cleaning door to facilitate flushing and maintenance, and a detachable window is provided at the chute of the compression mechanism to facilitate the replacement of wearing parts. |
