LHT
Main Applications:

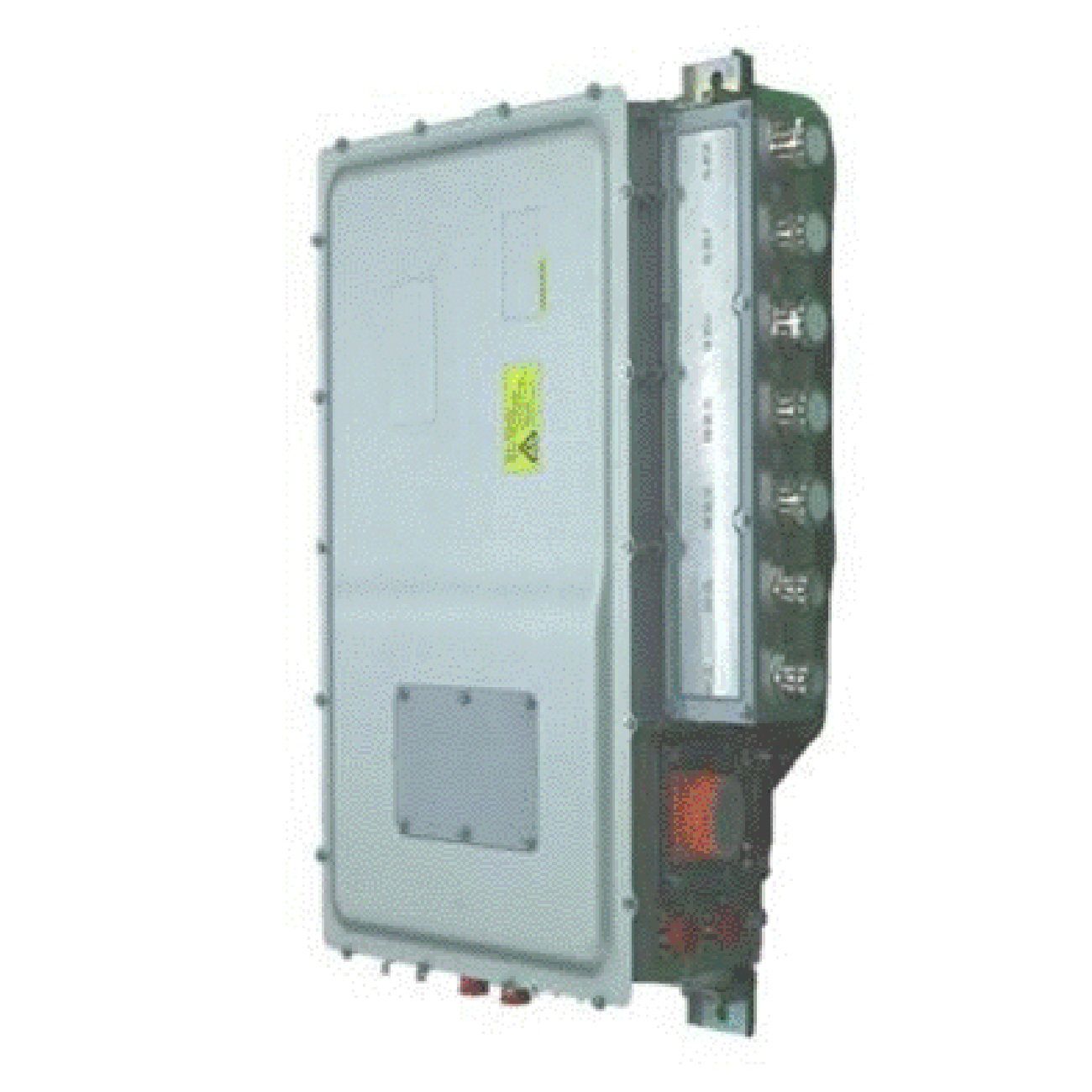

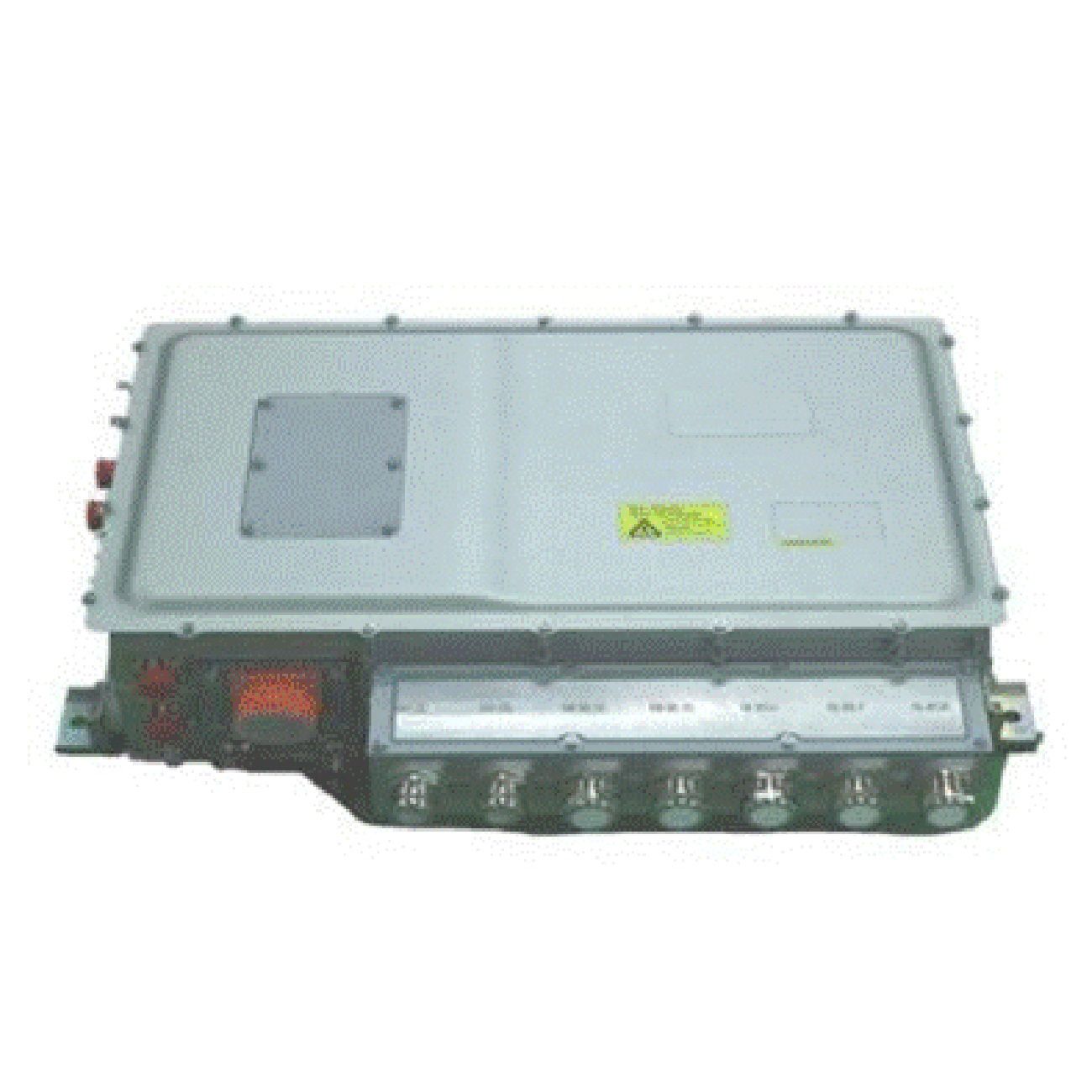

In the field of new energy vehicles, the six-in-one integrated power supply plays a central role. It distributes power to slow charging, fast charging, defrosting, air conditioning, PTC and other systems to ensure the normal operation of each system. /DC function can provide stable power supply for low-voltage equipment such as interior lighting and control systems; /AC function supplies energy to AC loads such as air conditioners and compressors; Emergency power supply provides critical power under special circumstances; The peak power of the main drive module provides power support for the vehicle drive motor, ensures the dynamic performance of the vehicle, and improves the safety and reliability of the vehicle.
Parameter Table
| The name of the project | Main parameters: |
| Operating voltage range | 400V~750V |
| Low voltage auxiliary supply voltage | 18V~32V |
| Dimensions | 680mm×530mm×190mm |
| Rated work efficiency | ≥98% |
| Cooling method | Water |
| Ingress protection | IP68 |
| DC/DC peak power | 3.6 kW |
| DC/AC peak power | 7.5 kW |
| Peak power of the emergency power supply | 5 kW |
| Peak power of the main drive module | 200 kW |
| power distribution | Slow Charge, Fast Charge, Defrost , Air Conditioner, PTC, etc |
