ZYB-1618R/715B-17
LHT
Product Introduction

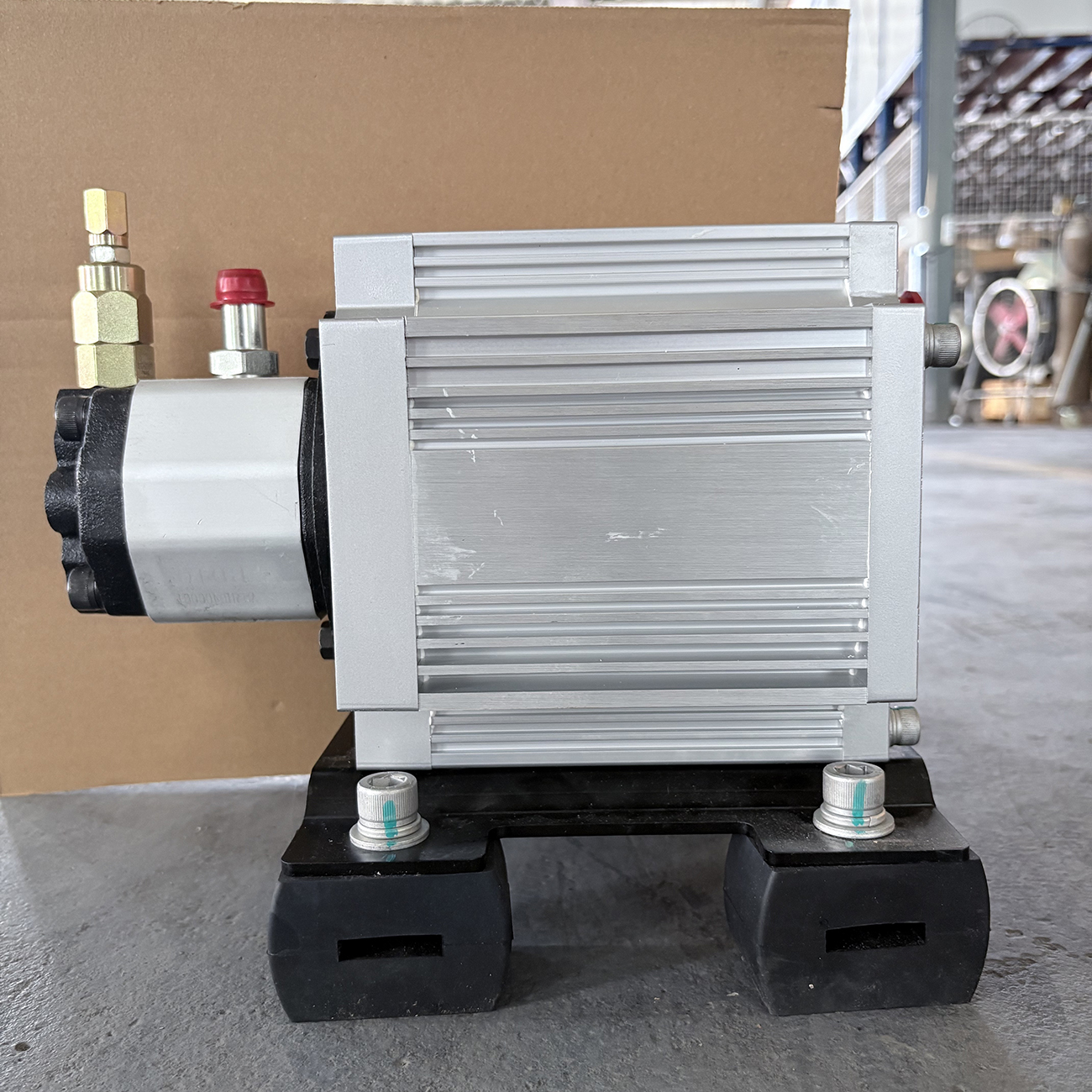

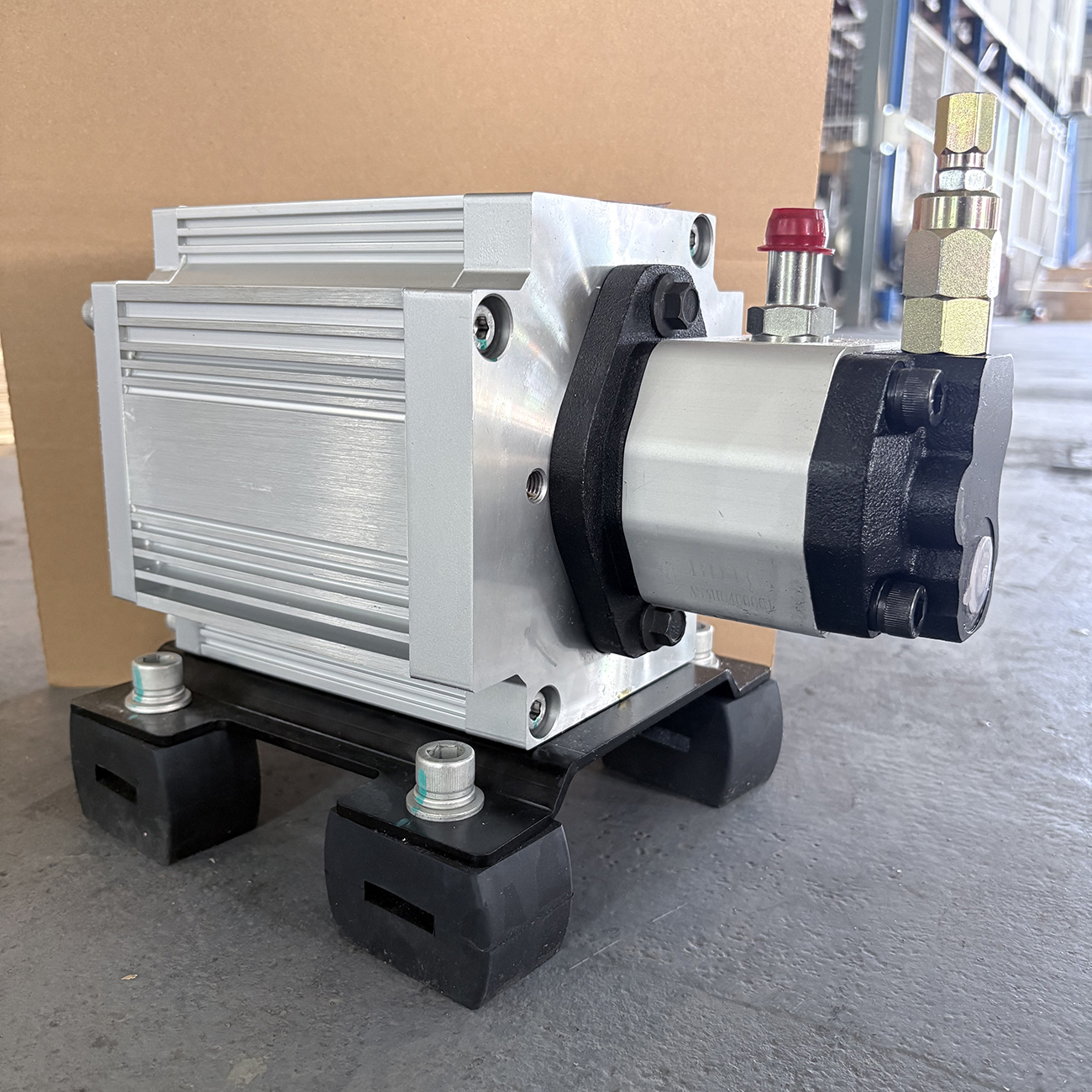

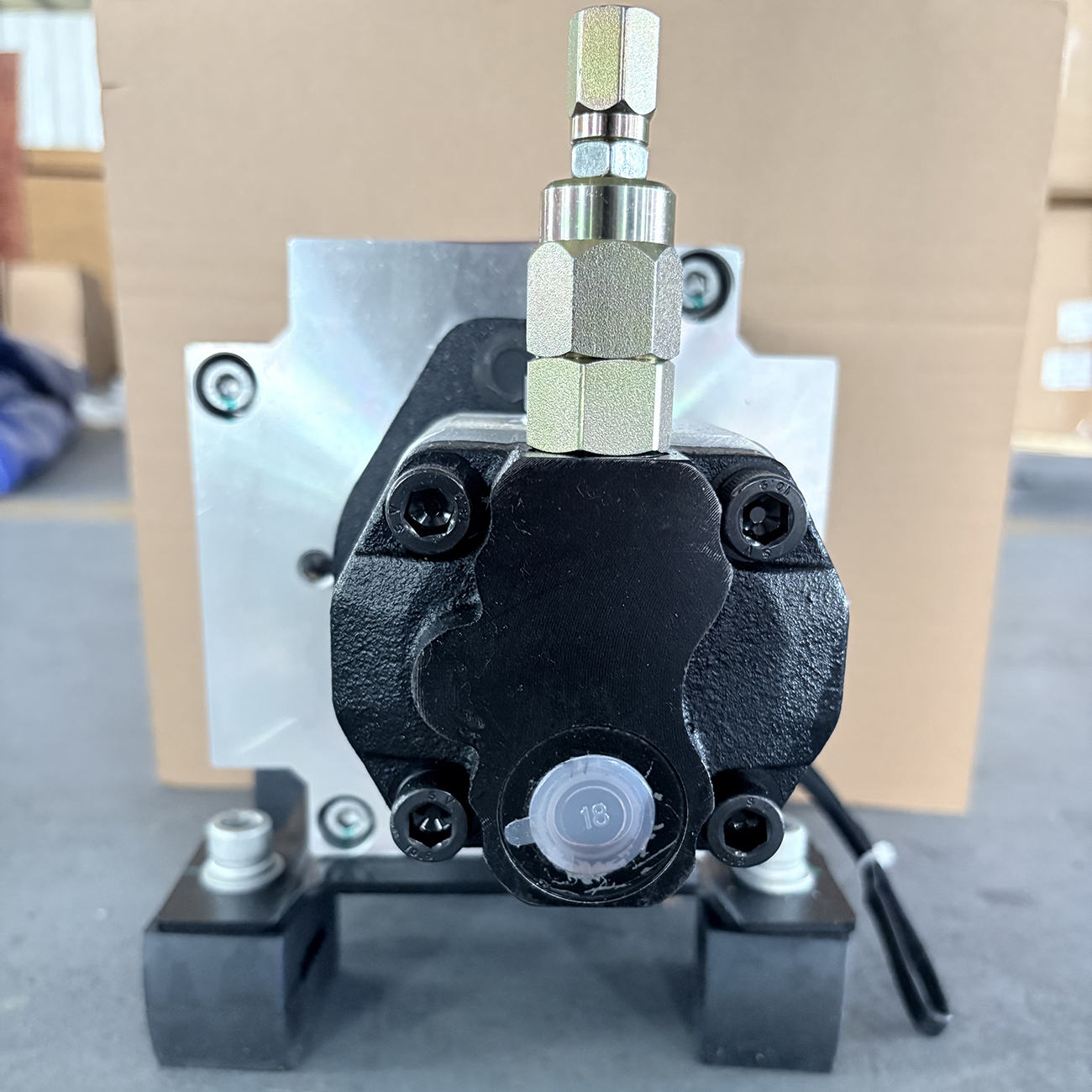

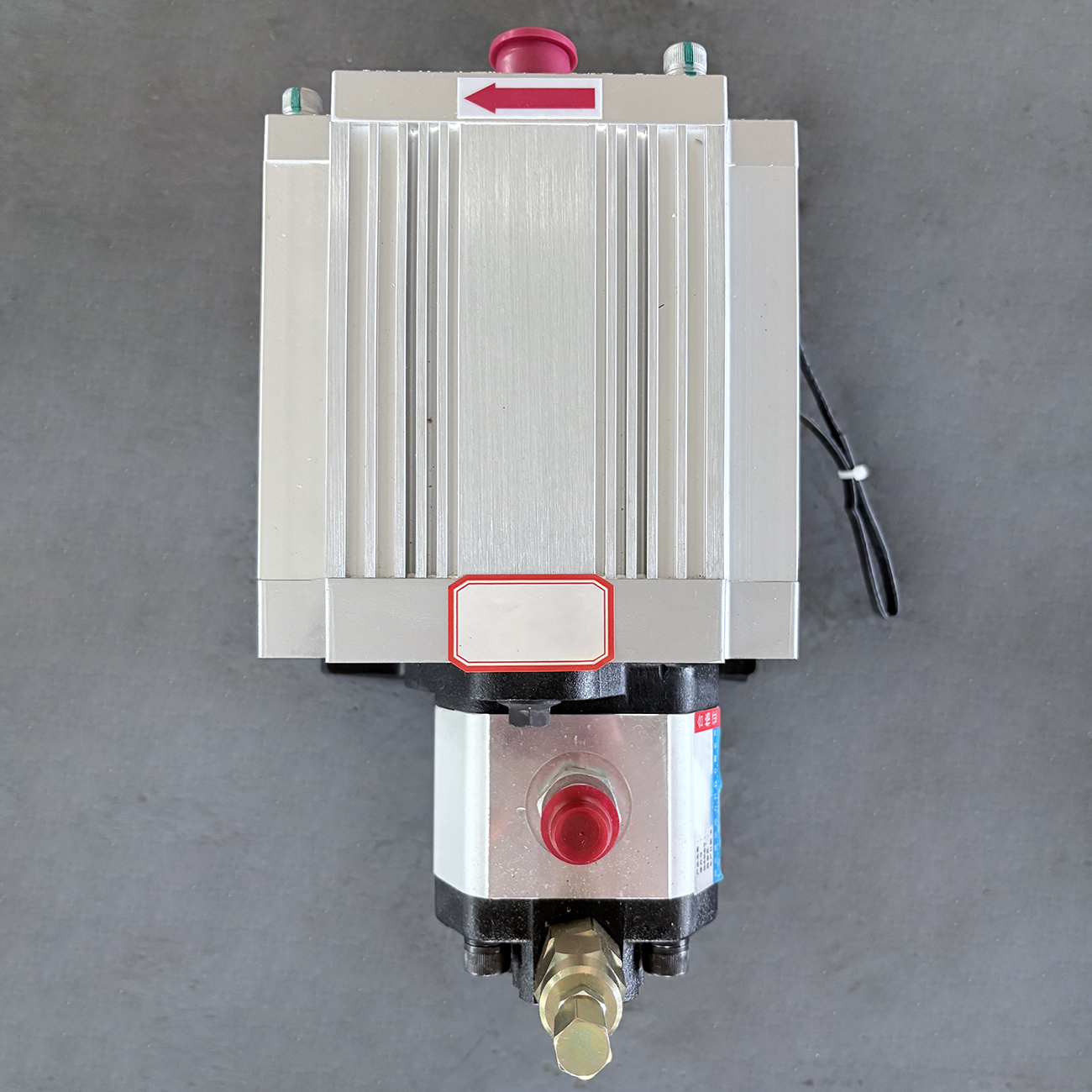

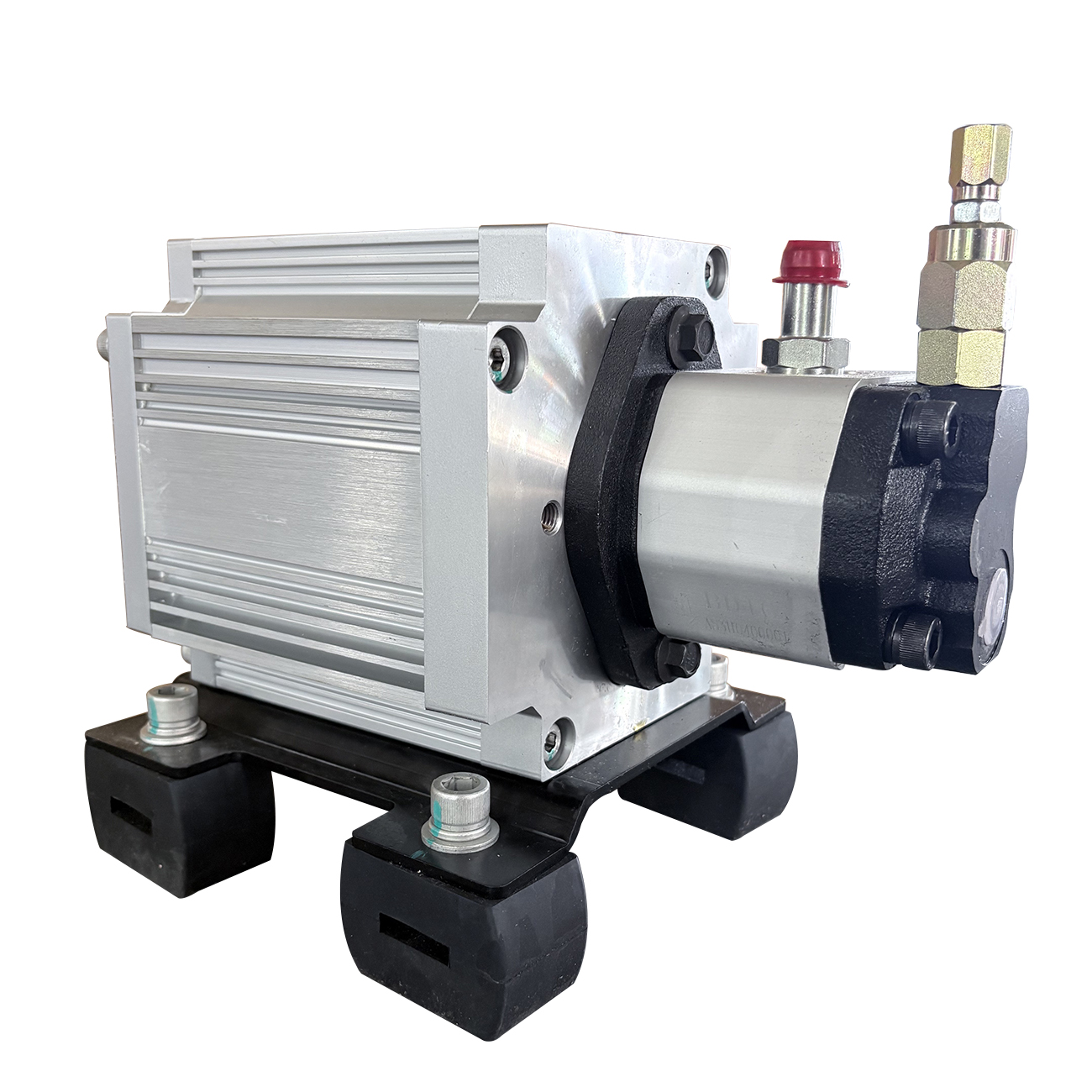

This oil pump has the product model ZYB - 1618R/715B -17and boasts excellent performance. It has a displacement of 18mL/r. Under the working conditions of 1000r/min and 0.5MPa, its controlled flow rate reaches 18L/min, stably providing a suitable amount of oil output. The maximum pressure can reach 16±0.3MPa, meeting the requirements of various working scenarios. With a volumetric efficiency of ≥80%, it ensures efficient fuel transfer and reduces energy loss. The rotation direction, when viewed from the shaft end, is clockwise (right - hand rotation), which offers good installation adaptability. It is suitable for equipment that requires stable fuel supply, specific pressure and flow rate, providing a reliable guarantee for the stable operation of the system.
Powerful Power Output
With a precise displacement of 18mL/r, it can stably deliver fuel regardless of complex working conditions. The maximum pressure of 16±0.3MPa ensures sufficient power supply during high - load operations, laying a solid foundation for the efficient operation of equipment.
Model of High - efficiency and Energy - saving
It has an outstanding volumetric efficiency of ≥80%, reducing energy waste and operating costs. Under the conditions of 1000r/min and 0.5MPa, the controlled flow rate is stably maintained at 18L/min, achieving a perfect balance between flow rate and energy consumption.
Reliable Quality Assurance
Designed with a clockwise (right - hand rotation) direction when viewed from the shaft end, it features a compact and reasonable layout, making it easy to install and maintain. Its sophisticated manufacturing process and high - quality materials ensure stable operation even in extreme ambient temperatures ranging from - 40°C to + 85°C, providing your equipment with long - lasting and reliable power support. Whether for heavy machinery, industrial equipment or vehicle applications, this oil pump can meet your needs with its superior performance and is an ideal choice for your power system.
Parameter table
| Product Model | ZYB-1618R/715B-17 |
| Displacement (mL/r) | 18 |
| Maximum Pressure (MPa) | 16±0.3 |
| Volumetric Efficiency (%) | ≥80% |
| Controlled Flow Rate (L/min) (at 1000r/min, 0.5MPa) | 18 |
| Rotation Direction (viewed from the shaft end) | Clockwise (right - hand rotation) |
| Motor Model | EHPS-1518R3/21C-010 |
| Controller Voltage Range (VDC) | 400-700 (rated 500) |
| Rated Input Voltage (VDC) | 353±10% |
| Induced Voltage at Rated Speed (VAC) | 24.7 |
| Rated Current (A) | 10 |
| D - axis Inductance (mH) | 15.88 |
| Peak Current (A) | 27 |
| Peak Power (KW) | 9 |
| Rated Power (KW) | 3 |
| Peak Torque (N.m) | 86 |
| Rated Torque (N.m) | 30 |
| Motor Type | SVC Sensorless Permanent Magnet Synchronous Motor |
| Rated Speed (r/min) | 1000 |
| Rated Frequency (HZ) | 66.67 |
| Duty Cycle | S2 - 3min |
| Q - axis Inductance (mH) | 36.03 |
| Rated Efficiency (%) | ≥92% |
| Insulation Class | H - class |
| Protection Class | IP67 |
| Cooling Method | Natural Cooling |
| Operating Ambient Temperature | - 40°C - + 85°C |
