| Quantity: | |
|---|---|

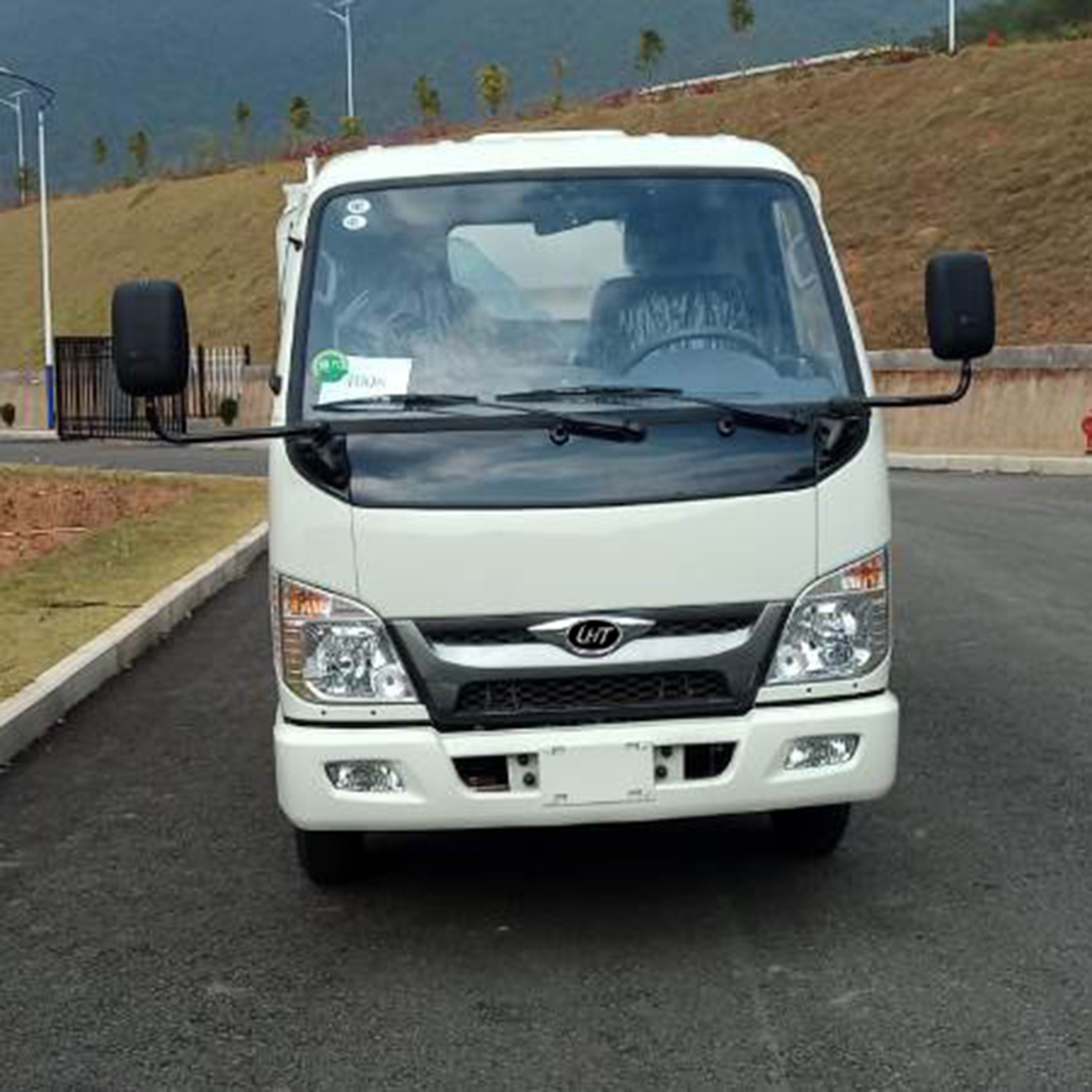

LHT5032ZZZFS6H
LHT
1

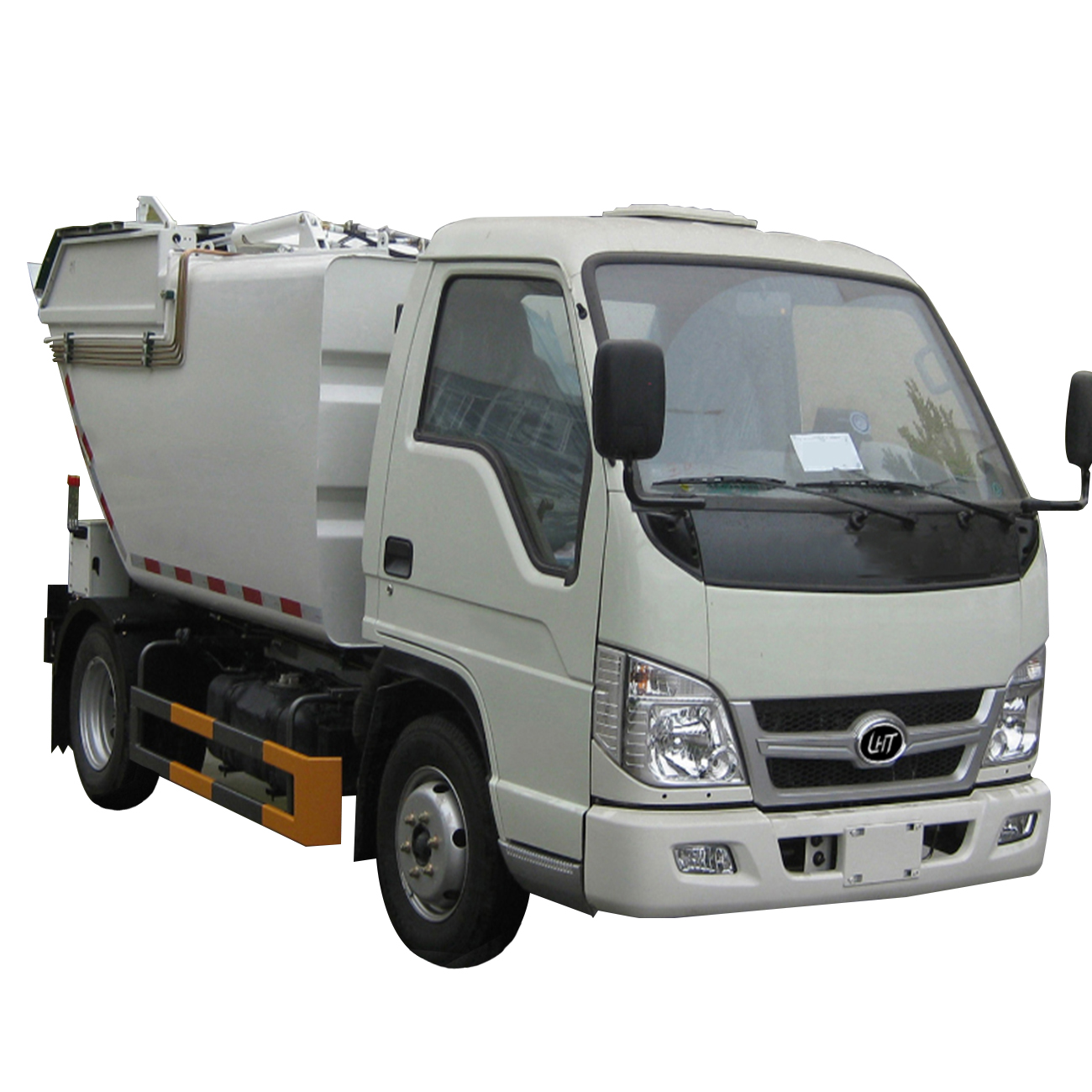

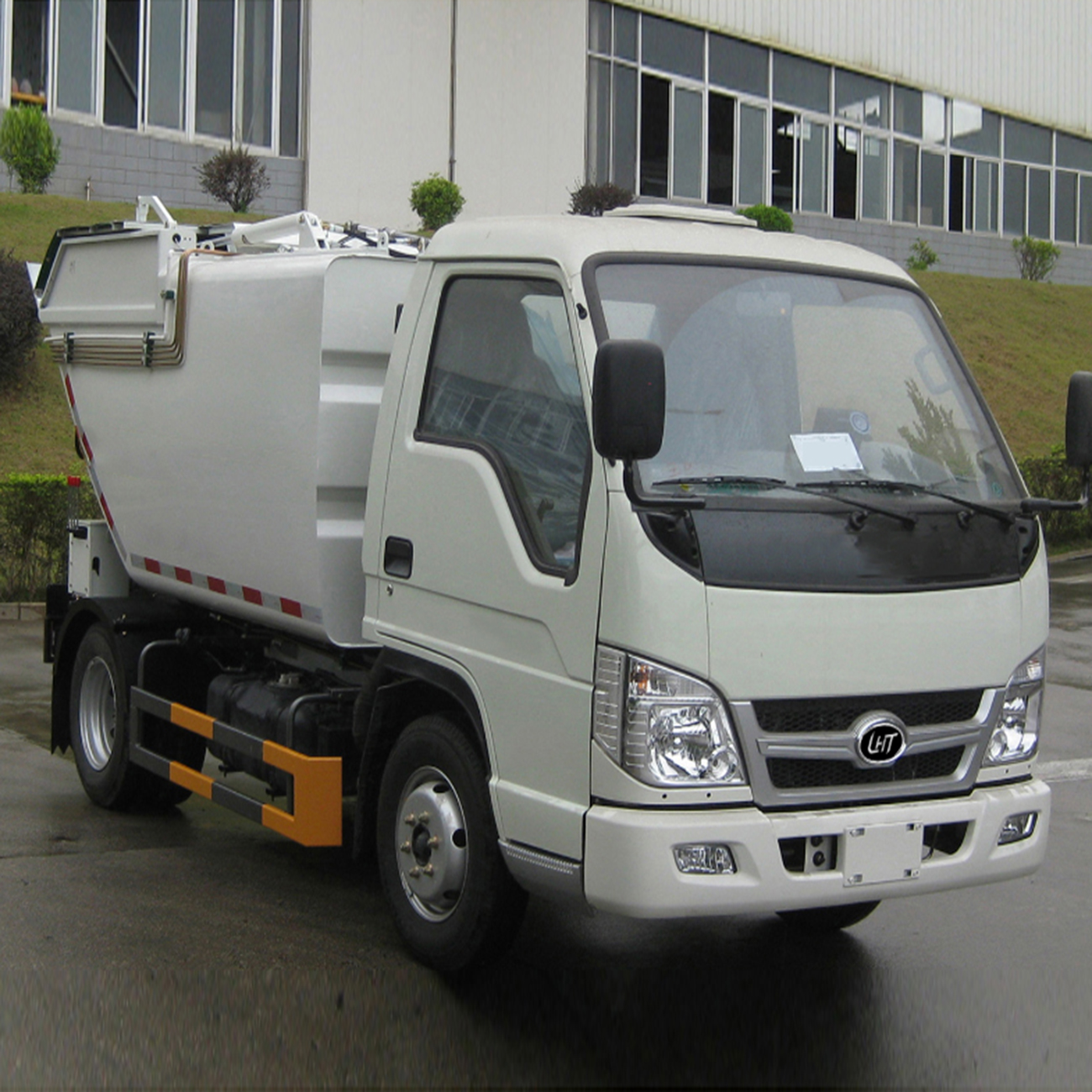

1.Function Overview
The vehicle operates by using the lifting mechanism configured at the rear to lift the garbage can to the top of the vehicle and load the garbage into the ship-shaped garbage box. Then, the scraping compression mechanism compresses the garbage towards the front of the garbage box. During the transfer process, the loading port is sealed by the folding type cover plate on the top plate to achieve closed transfer. When the garbage is full, it is transported to the transfer processing station and dumped into the garbage processing equipment for treatment by the tipping self-loading method.
2.Application Scope
This vehicle model is mainly used for the collection and transportation of bucket-type garbage, and is widely applicable in areas such as urban streets and residential living areas for the collection and transfer of bucket-type garbage.
3.the main structure and performance characteristics
Chassis
Chassis: Xiamen Longhuitong Automobile Technology Co., Ltd., production of LHT1035V5JV5-51 type II automobile chassis modification, strong power, strong carrying capacity;
Engine: Dongan DAM15KL gasoline engine with a rated power of 85kW and a rated speed of 6000r/min, and its emissions meet the national VI standard.

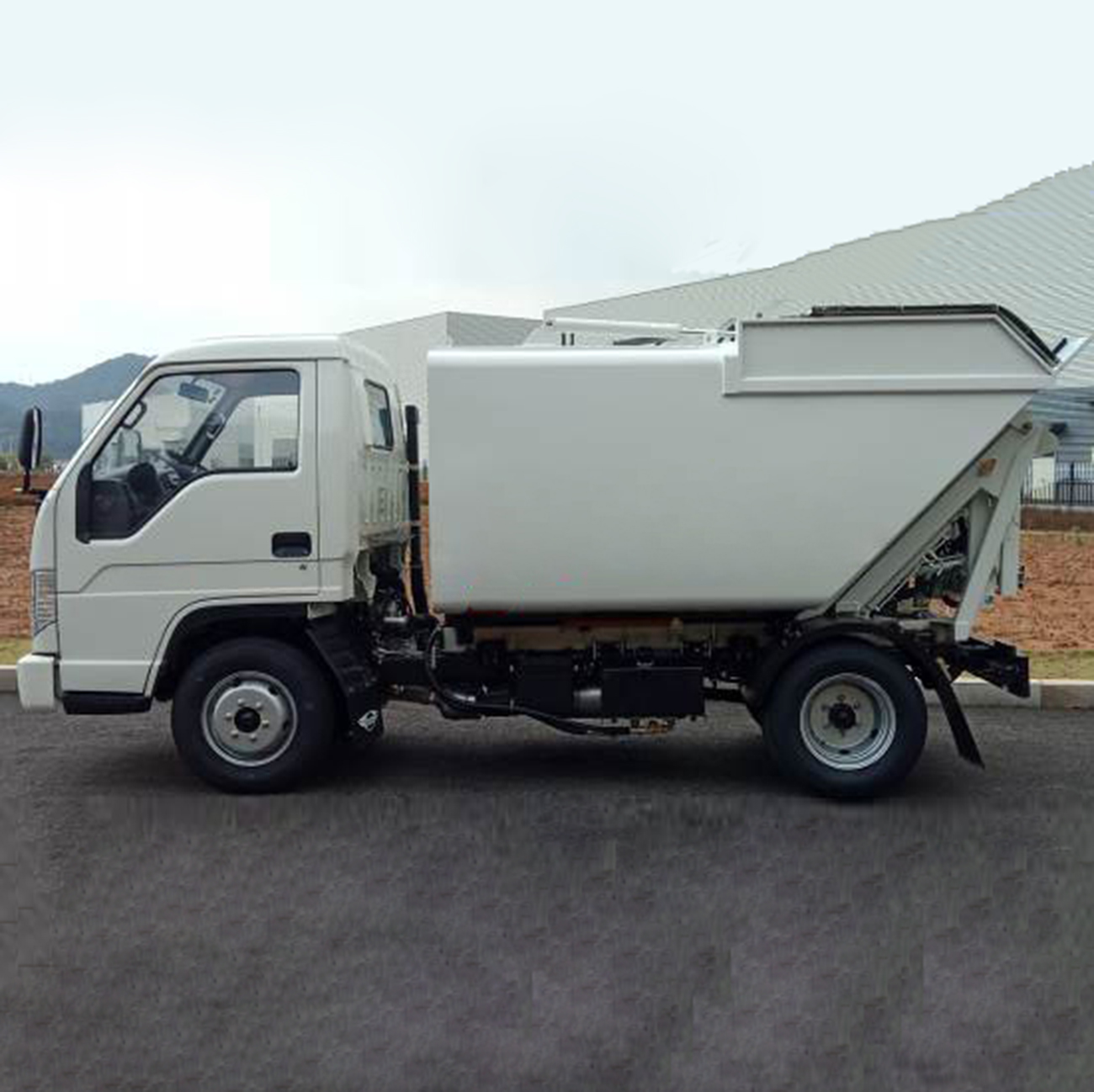

Trash cans
The overall structure of the garbage bin is a ship-shaped design, the feeding port is designed at the top, and the surrounding area is closed and welded, and the top feeding port of the garbage bin is closed and there is no leakage, and the overall volume of the garbage bin is large and the dirt-holding capacity is strong. The side plate and bottom plate are made of high-strength and high-quality plates, and the thickness of the plates is 3mm.
Compression mechanism
The compression mechanism is a rotating scraper, which is installed on the top of the box, and the rotary movement of the scraper is driven by the hydraulic ram to realize the garbage compression and aggregation effect, and its purpose is to increase the garbage loading capacity, improve the efficiency of garbage collection and transportation, and avoid the transfer of garbage throwing.
Lifting mechanism
The lifting mechanism is composed of a flip frame, a guide rail frame, a lifting tooth plate, etc. The hoisting mechanism is the main working device of the car, and is responsible for lifting the garbage can containing garbage from the ground to the top of the box, pouring the garbage in the garbage can into the box, and putting the garbage can back to the ground after feeding. The lifting mechanism can lift 1 120L or 240L garbage can, and the maximum lifting weight of the mechanism is 160kg.
Folding cover plate mechanism
The box is equipped with a top cover plate, and the cover plate assembly is composed of cover plate welding, cover plate cylinder, etc. The cover plate covers the open opening of the box during the transfer of the vehicle loading garbage, so as to avoid the garbage from spilling out during the transfer process, ensure that the whole process of garbage transfer is airtight, and prevent secondary pollution.
Operation mode
The vehicle is equipped with a multi-way valve handle on the right rear to operate, and the operation mode is simple and reliable;
4.the main technical parameters of the product
| project | parameter | |
| Chassis model | LHT1035V5JV5-51 | |
| Chassis manufacturer | Xiamen Longhuitong Automobile Technology Co., Ltd., | |
| Chassis engine model | DAM15KL | |
| Chassis engine rated power / speed / displacement kw / (r / min) / ml | 85/6000/1498 | |
| Chassis engine maximum net power / speed kw / (r/min) | 80/6000 | |
| Maximum torque / speed of chassis engine (N.m/(r/min)) | 150/4400 | |
| Transmission model | DAT18R | |
| Transmission type | Manual | |
| Tire specifications | 6.00R15LT 10PR | |
| Wheelbase (mm). | 2600 | |
| Maximum Climbing Angle (% | 20 | |
| Minimum turning diameter (m) | 12.5 | |
| Maximum total mass (kg). | 3495 | |
| disposition | Standard | Optional lifting mechanism |
| Dimensions (length×width×height) (mm). | 4745×1720×2230 | 4745×1720×2230 |
| Curb weight (kg). | 2270 | 2360 |
| Rated load weight (kg). | 1095 | 1005 |
| Front/rear overhang(mm) | 1090/1055 | 1090/1090 |
| Angle of approach/departure (°) | 19/33 | 19/19 |
| Maximum speed(km/h) | 100 | |
| Number of cab passengers | 2 | |
| Dustbin volume (m3) | 3.85 | |
| Effective volume of dustbin (m3) | 3.43 | |
| The material and thickness of each part | Box bottom plate, side plate, front plate, top plate and rear sealing plate material Q345B thickness 3mm, (the above panel optional SUS304) | |
| Dump bin tipping ground clearance (mm) | ≤1500 | |
| Bin loading cycle time (s) | ≤20 | |
| Bin discharge cycle time (s) | ≤60 | |
| Compression operation cycle time(s) | ≤15 | |
| Dump angle of dustbin (°) | ≥40 | |
| Maximum lifting force of lifting mechanism(kg) | 160 | |
| Hydraulic system pressure (MPa) | 14 | |
| Cab temperature control measures | Chassis heating and air conditioning | |
5.the main advantages of the product
| serial number | Advantageous points | Description |
| 1 | Superior performance | The product adopts modular design, and the lifting mechanism can be retracted and released to ensure that the vehicle length is small, the departure angle is large, and the vehicle can achieve high mobility ability. |
| 2 | Excellent quality | The garbage bin is made of Q345B high-strength high-quality carbon steel material, and is equipped with beams and panel folding ribs to strengthen the structural design, and the underframe adopts a frame structure to ensure the overall structural strength and rigidity. |
| 3 | User-friendly operation | The vehicle adopts a multi-way valve system, which is durable and reliable, simple and convenient to operate, and the operator is designed to observe the operation of the vehicle mechanism in real time while improving the safety of personnel. |
| 4 | Safe and reliable | This product pays attention to the safety of use, and is designed with multiple safety operation interlocks and warning devices to avoid human and vehicle damage caused by human misoperation. |
