Product Description:

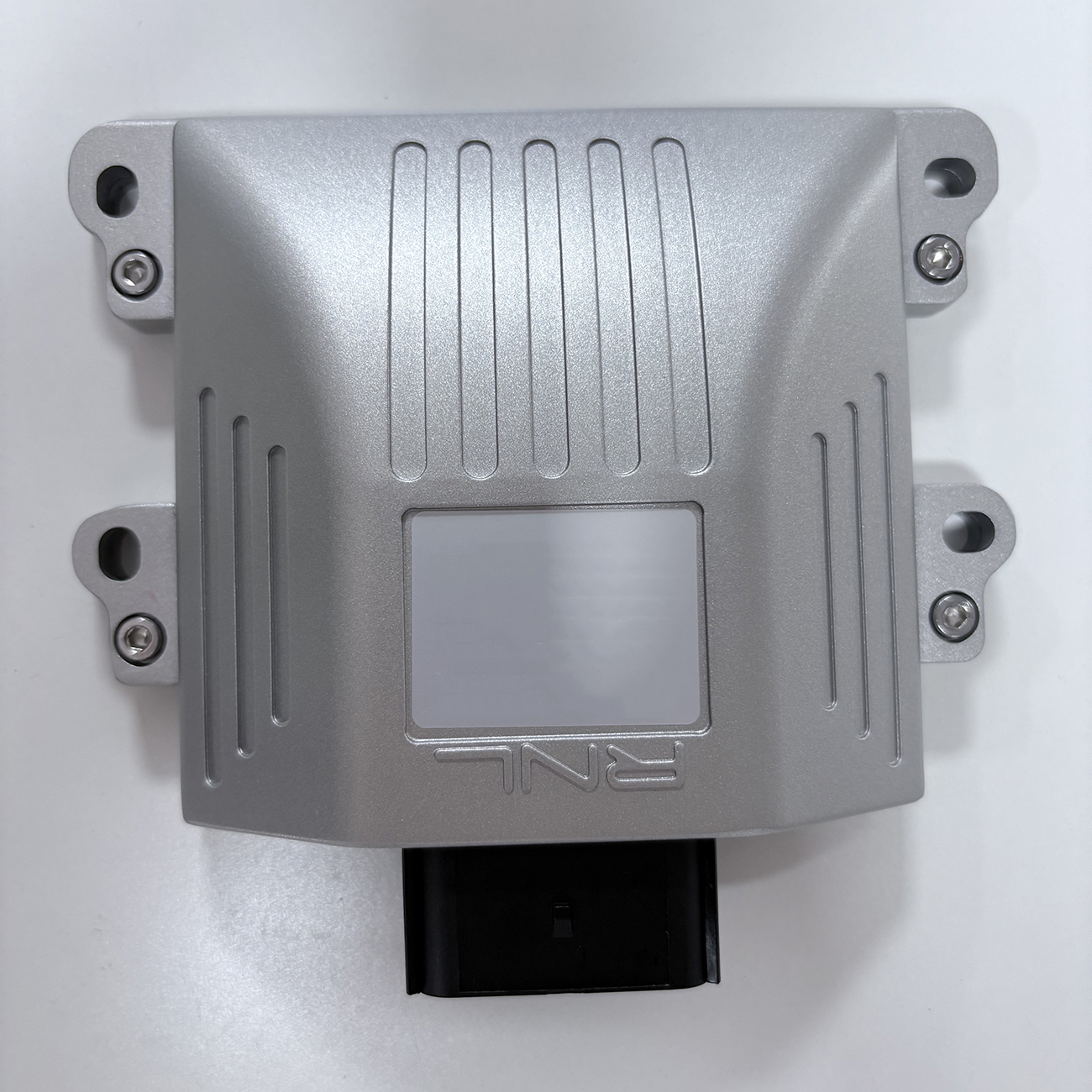

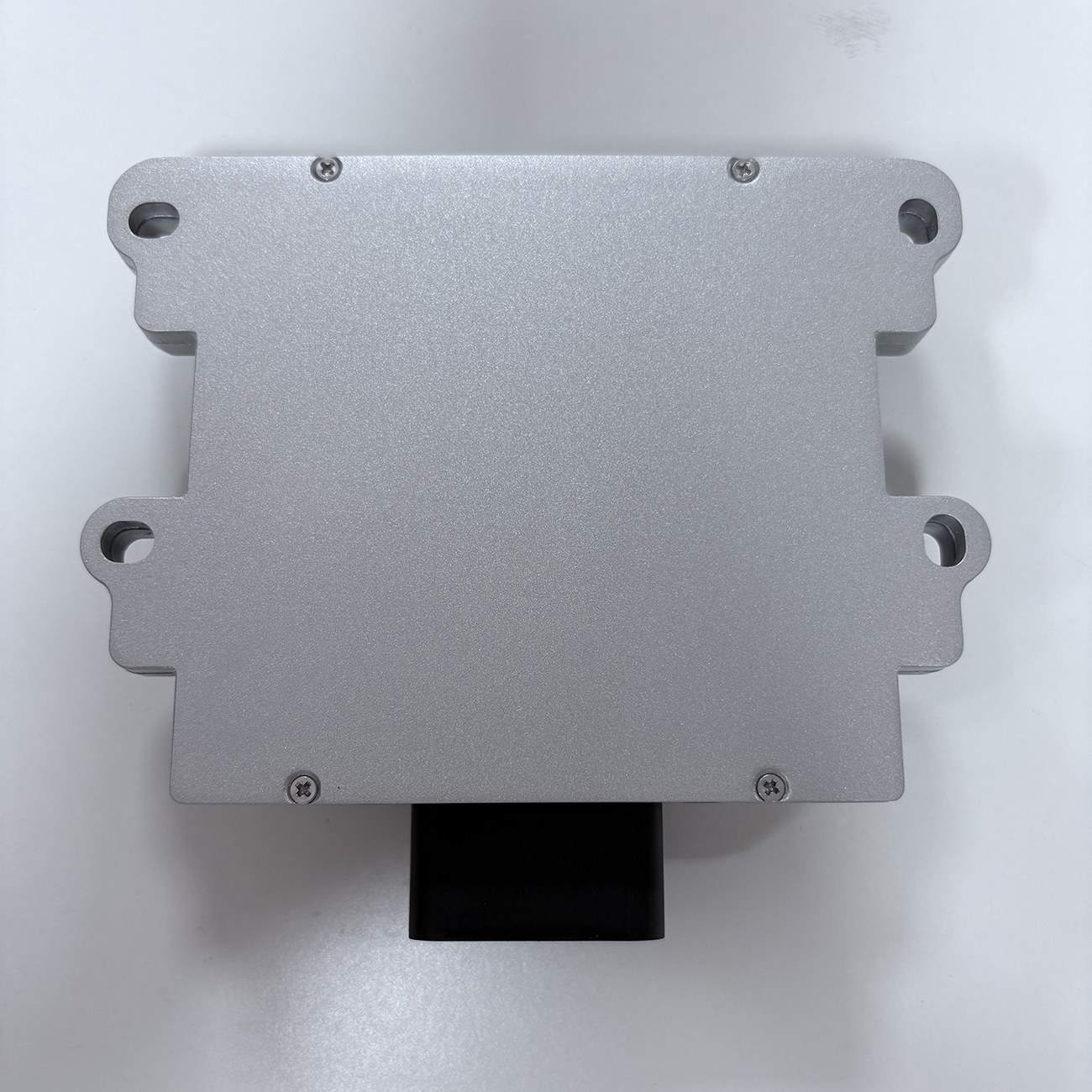

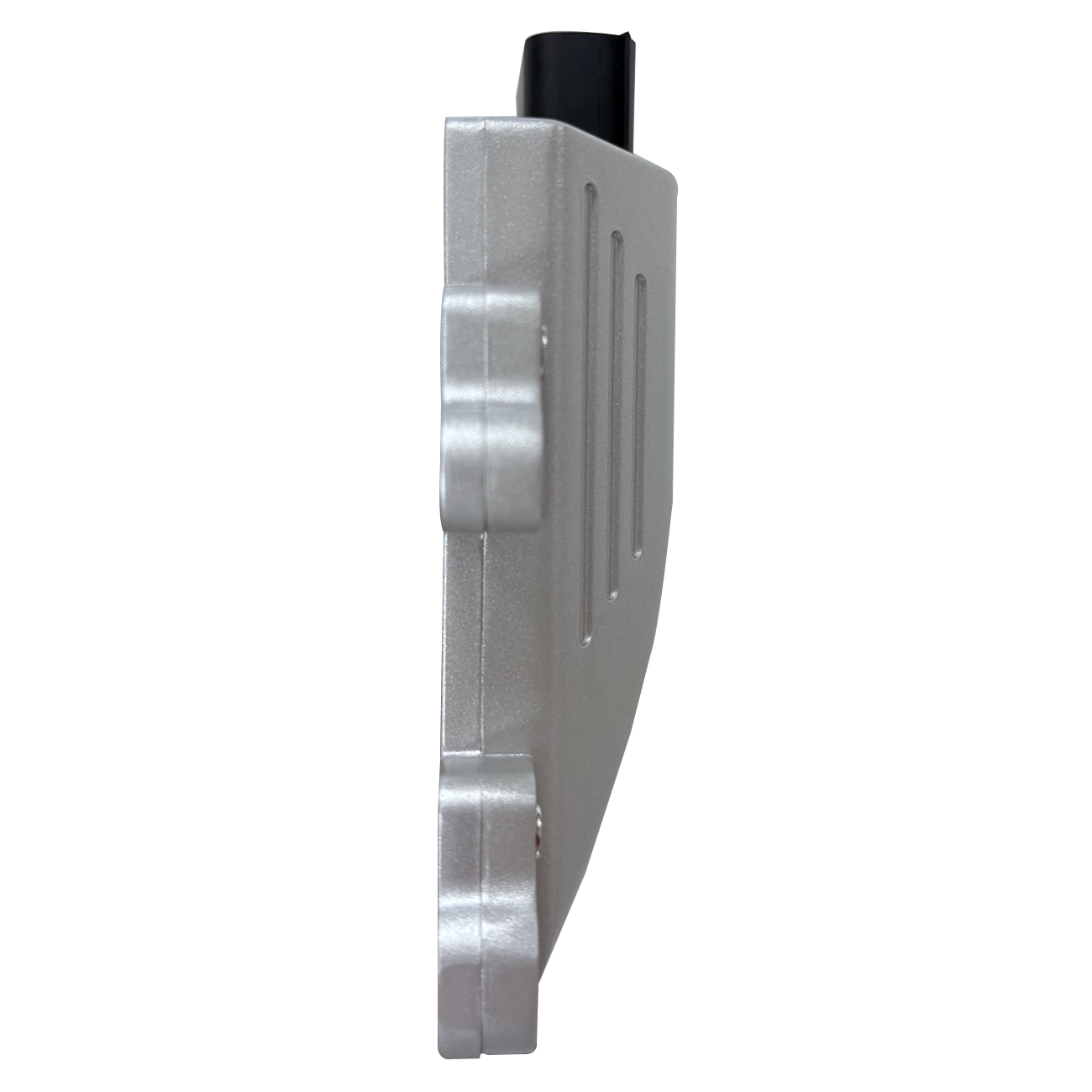

The EVCC (Electric Vehicle Charging Controller) is an advanced device designed specifically for electric vehicle charging applications, featuring exceptional performance and reliable quality. In terms of electrical parameters, it operates at a voltage range of 9V to 28V, with a current consumption of less than 130mA and a standby power consumption as low as less than 1mA, making it energy-efficient. It supports the CP wake-up mode for convenient device activation. It is compatible with a 1A electronic lock brake configured for Vin DC24V 4-Wire, providing assurance for safety during the charging process. Its environmental adaptability is outstanding, capable of stable operation in working temperatures ranging from -40°C to +85°C and storage temperatures from -40°C to +100°C, while meeting a humidity requirement of 0-90% RH, making it resilient to harsh environmental conditions. In terms of physical specifications, the shell dimensions are 151.5×113×35.3mm (tolerance ±0.5), compact and refined for easy installation. Weighing only 495g (tolerance ±5), it also offers portability. With an IP67 protection rating, it effectively protects against dust and water ingress, extending its service life. Its communication capabilities are robust, utilizing a CAN2.0 communication port that supports baud rates of 250K/500K, paired with a terminal resistance of (120±5)Ω, ensuring stable and efficient data transmission. In functional detection and control, it integrates features such as CP detection, BMS wake-up signal output, and electronic lock control, achieving intelligent and safe management of the charging process. With its comprehensive performance advantages, the EVCC has become a trusted core component in the electric vehicle charging control field, ensuring the safe and efficient charging of electric vehicles.
Parameter table
| Item | Technical Parameter |
| Operating Voltage | 9V - 28V |
| Operating Power Consumption | <130mA |
| Wake - up Mode | CP |
| Electronic Lock Actuator and Power Consumption | 1A with Vin DC24V 4 - Wire (Supports 24V 4 - wire) |
| Standby Power Consumption | <1mA |
| Operating Ambient Temperature | −40 - + 85ºC |
| Storage Temperature | −40 - + 100ºC |
| Humidity Requirement | 0 - 90%RH |
| Enclosure Dimensions (mm) | 151.5 × 113 × 35.3 (Tolerance ±0.5) |
| Communication Port | CAN2.0 |
| Baud Rate | 250K/500K |
| Terminal Resistance | (120±5Ω) |
| Functional Detection and Control | CP detection, BMS wake - up signal output, electronic lock control |
| Protection Class | IP67 |
| Weight | 495g (Tolerance ±5) |
