Product Description:

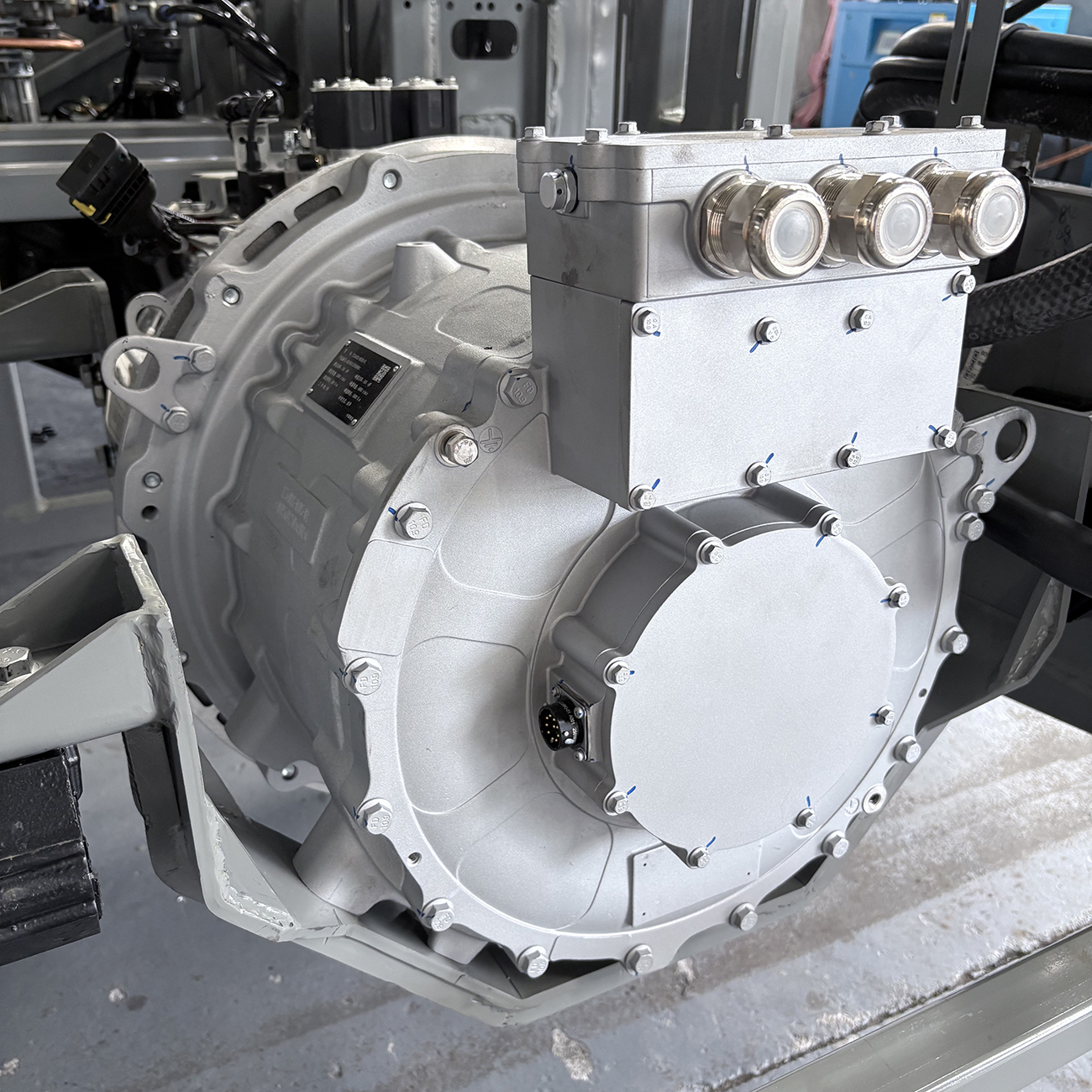

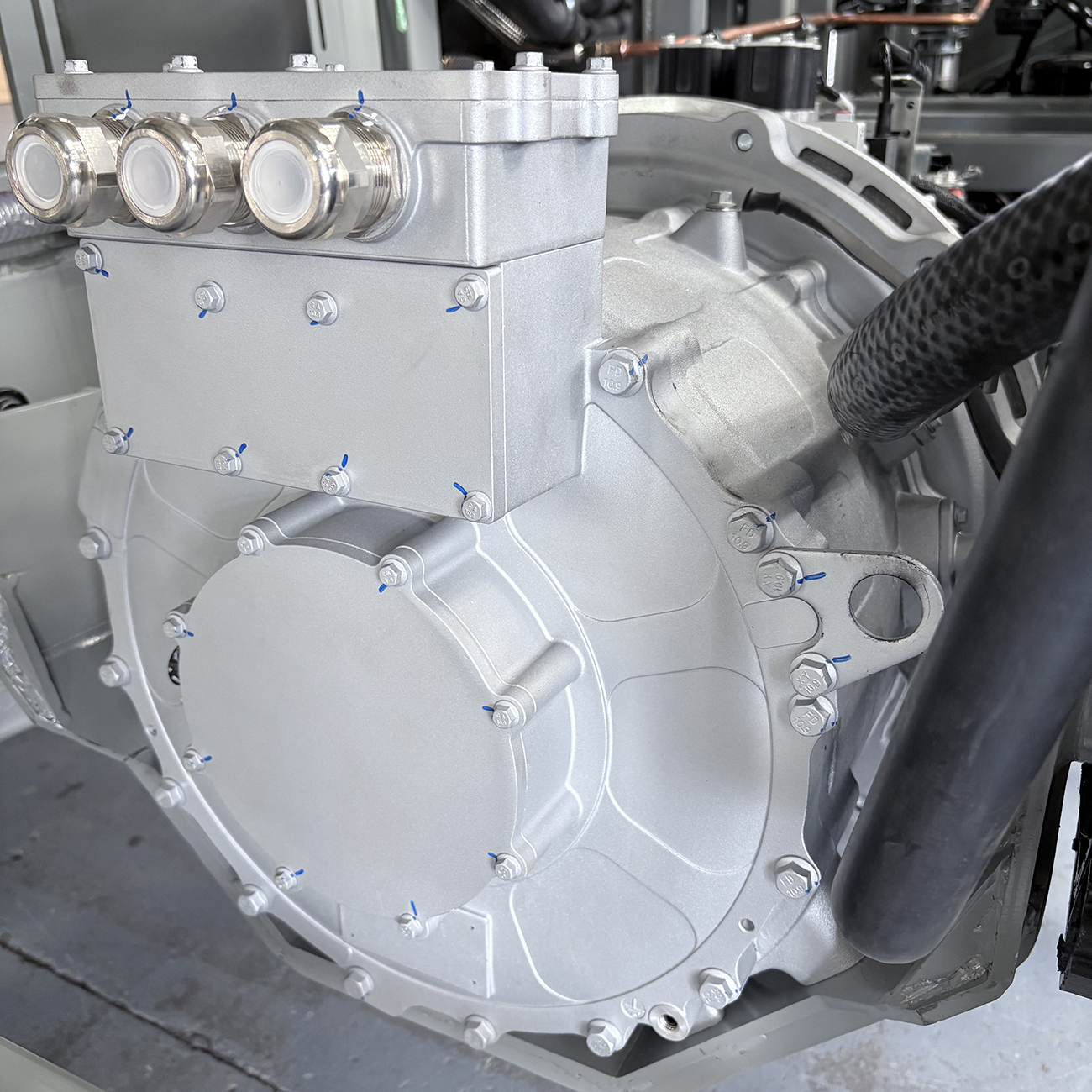

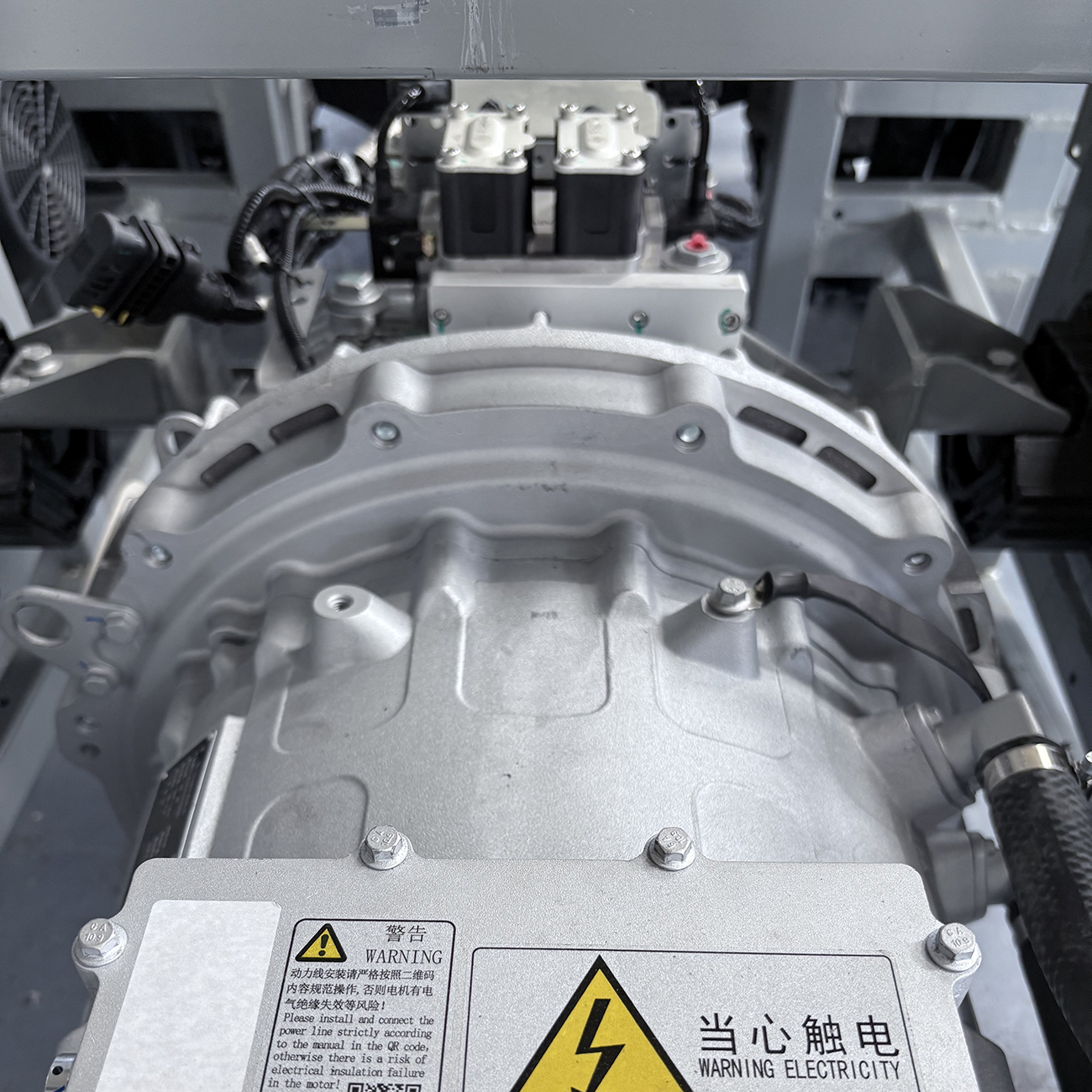

TZ390XS - M120 - 01CK motor is suitable for 8 - 9 m medium bus platform, battery voltage 540VDC, rated working voltage 576VDC, working voltage covering 400 - 750VDC. Continuous power 120kW, peak power up to 240kW; The continuous torque is 1090Nm, the peak torque is 2400Nm, the rated speed is 1050rpm, and the maximum speed is 3000rpm, which can meet the power needs of China and Pakistan under different working conditions. The rated working current is 350A, the peak working current is 700A, with IP68 protection level, the highest efficiency is 99%, the high efficiency is reliable, the weight is 249kg, and the overall size is φ437*596mm, providing strong and stable output for the power system of China and Pakistan.

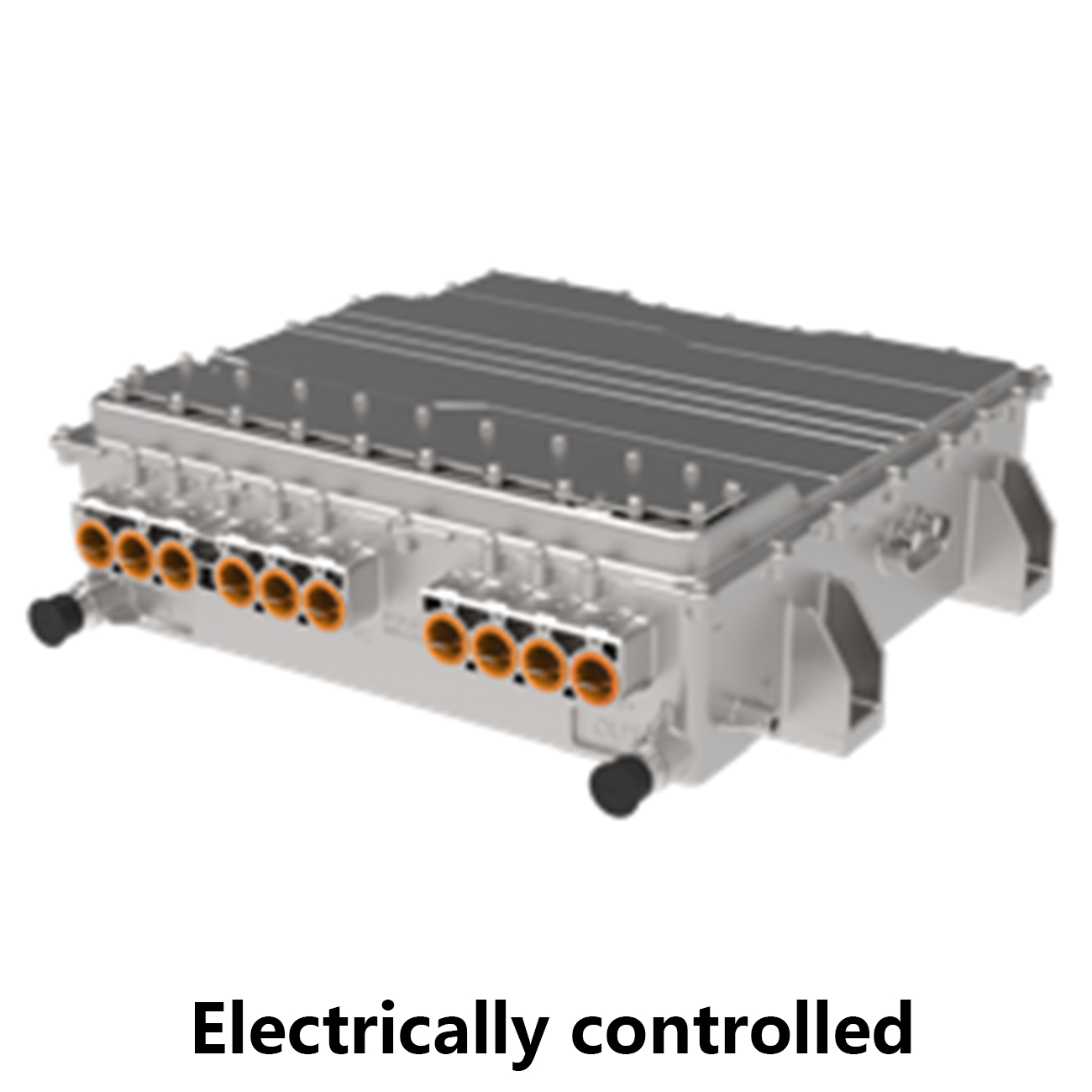

KTZ54X70S - A265 - 01CK electronic control is applied to 8 - 9 meters medium bus platform, rated capacity of 265kVA, maximum capacity of 530kVA, and good adaptability with platform motors. The rated working current is 350A, the peak working current is 700A, and the protection level is IP68, which ensures stable operation in complex environments, with a maximum efficiency of 99%, energy saving and high efficiency. The weight is 30kg, the overall dimensions are W582.1D534.3H178mm, and R85 certification has been completed, providing key support for the precise control and reliable operation of the China-Pakistan electrical system.

Motor Parameter Table

Electronic Controller Parameter Table
