| Quantity: | |
|---|---|
LHT4420
LHT
1

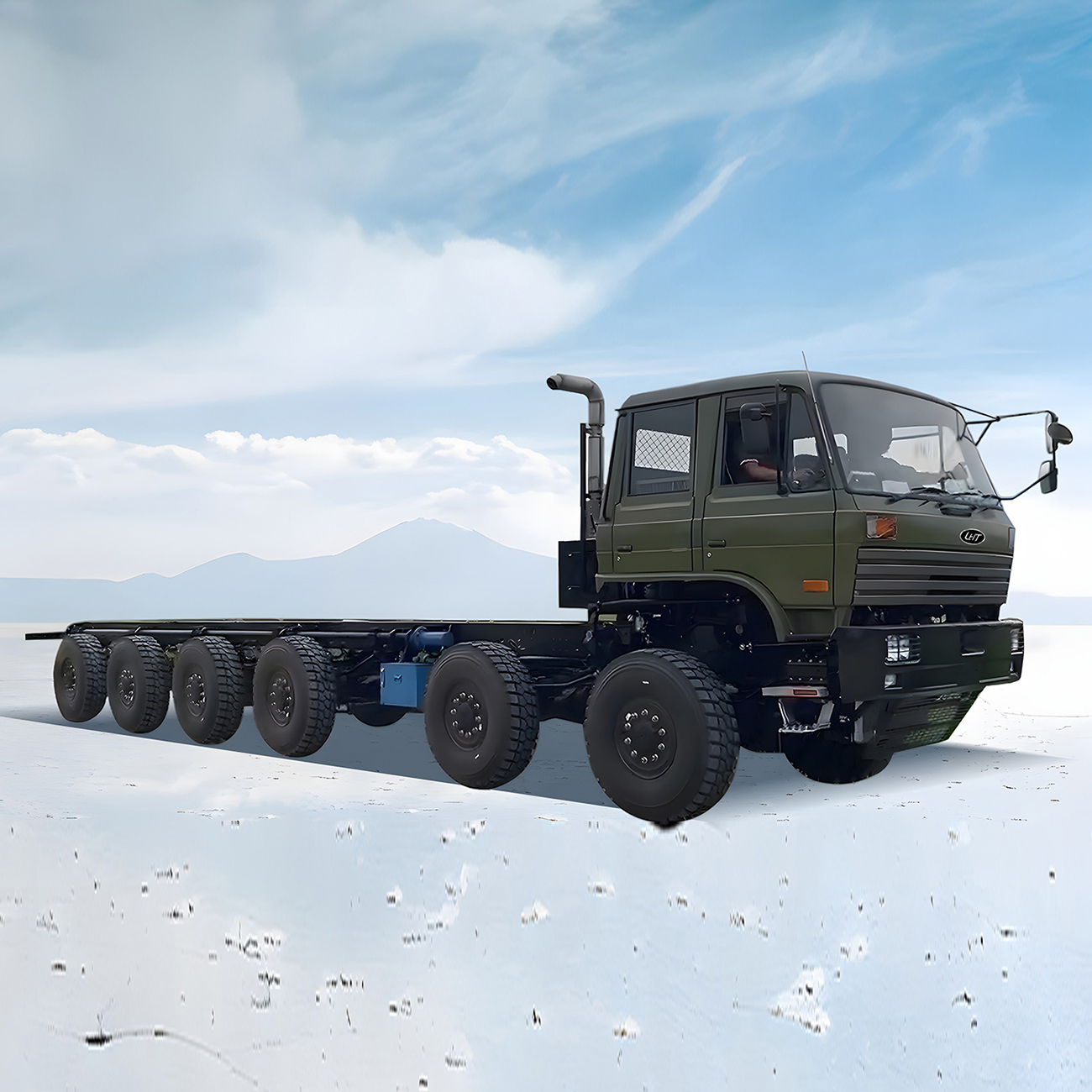

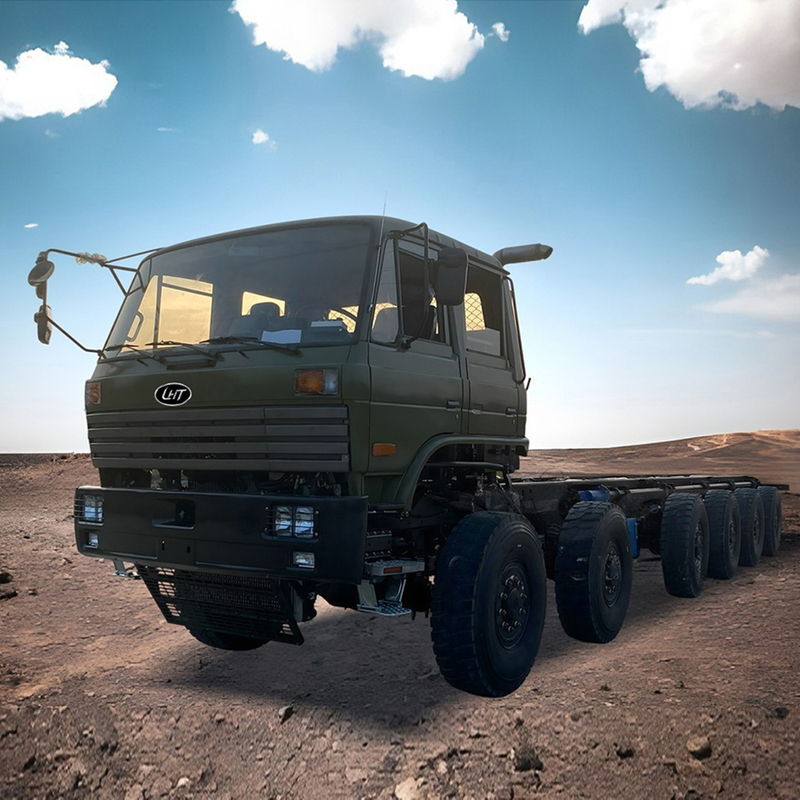

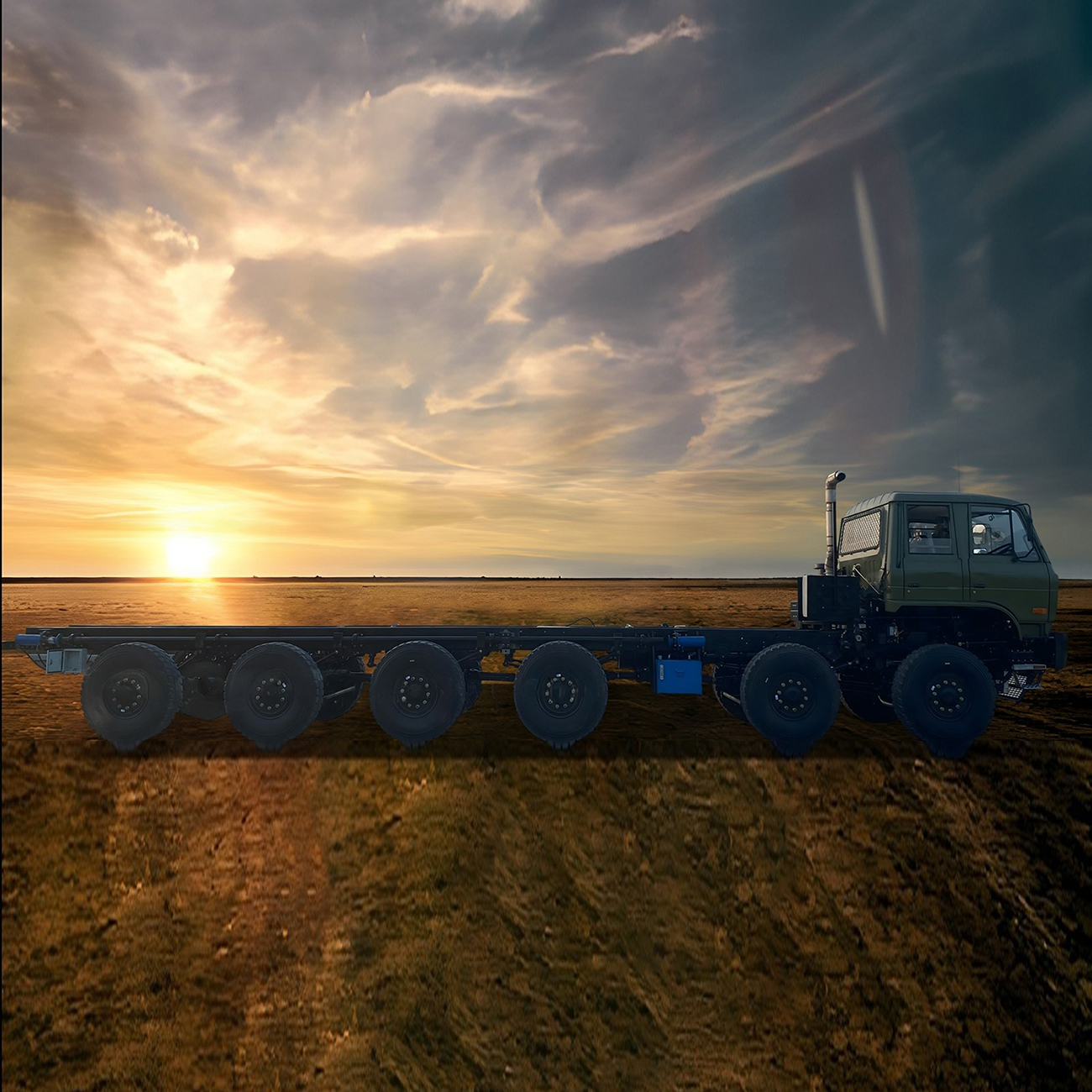

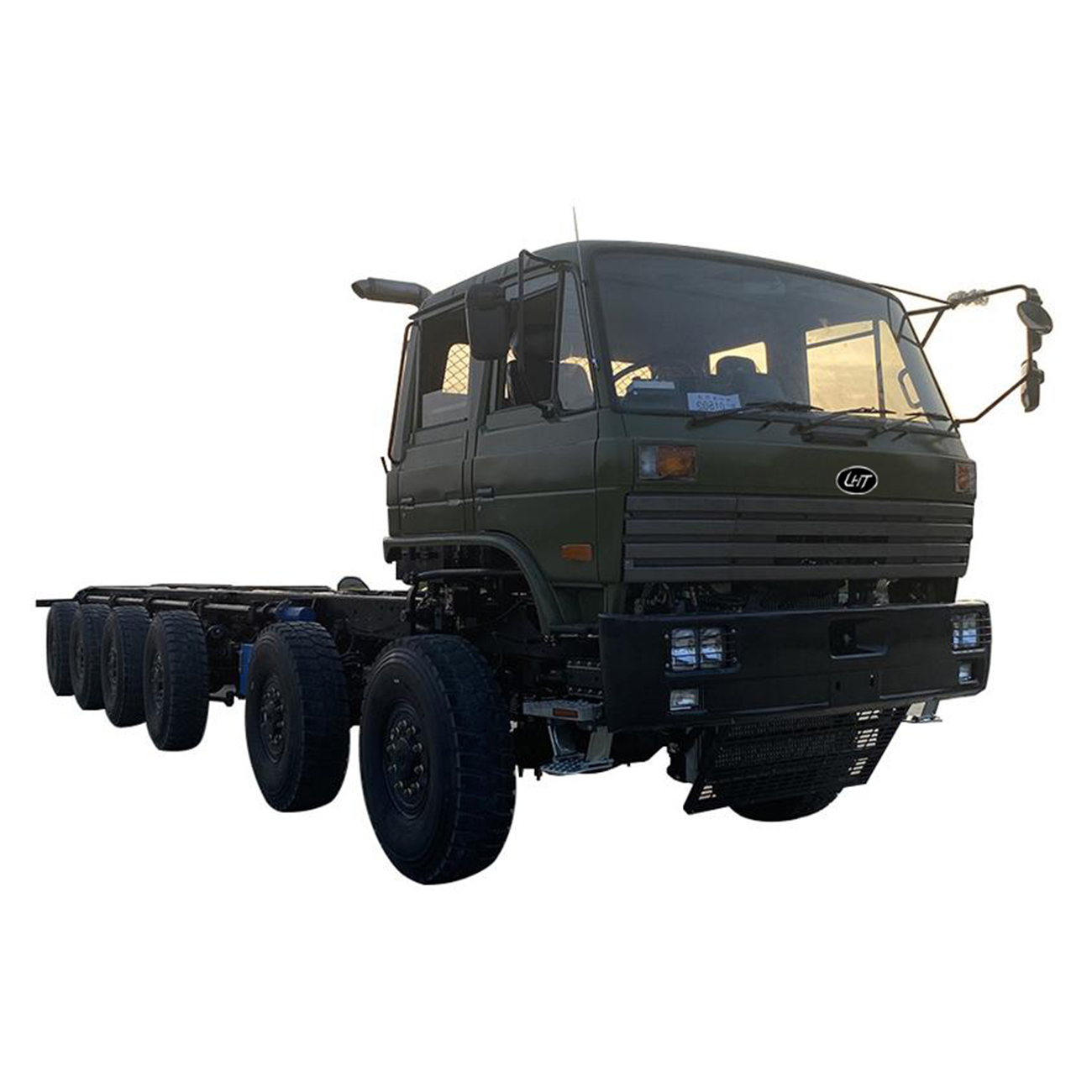

Six Axles, Twelve Wheels: Powering Ultra-Long Performance
The six-axle, twelve-wheel all-wheel-drive system efficiently distributes power to each wheelset, delivering exceptional traction and off-road capability.
The innovative axle arrangement ensures optimal weight distribution, significantly enhancing the vehicle's load capacity and stability.
The middle and rear axles can steer up to 10 degrees, offering extraordinary maneuverability and handling precision.
Meeting Heavy-Duty Demands
Designed to support heavy Special venue equipment transportation and specialized weapons platforms, making it a critical component of Special venue logistics.
Customized Services
Personalized Chassis Design: Supports customization of gross vehicle weight, payload capacity, wheelbase, and power systems to meet diverse operational requirements.
Parameter Table
| Vehicle Model | LHT4420 |
| Vehicle Type | 12x12 Special Chassis |
| Fuel Type | Diesel |
| Drive Type | Left Hand Drive / Right Hand Drive |
| Dimension L*W*H(mm) | 13500*2500*3350 |
| G.V.W(kg) | 42000 |
| Curb weight(kg) | 24000 |
| Max. Speed(km/h) | 90 |
| Engine | Weichai |
| Peak Power/Torque | 412kw/2585N.m |
| Gearbox | FAST 12MT |
| Splitter Box | Equipped |
Six Axles, Twelve Wheels: Powering Ultra-Long Performance
The six-axle, twelve-wheel all-wheel-drive system efficiently distributes power to each wheelset, delivering exceptional traction and off-road capability.
The innovative axle arrangement ensures optimal weight distribution, significantly enhancing the vehicle's load capacity and stability.
The middle and rear axles can steer up to 10 degrees, offering extraordinary maneuverability and handling precision.
Meeting Heavy-Duty Demands
Designed to support heavy Special venue equipment transportation and specialized weapons platforms, making it a critical component of Special venue logistics.
Customized Services
Personalized Chassis Design: Supports customization of gross vehicle weight, payload capacity, wheelbase, and power systems to meet diverse operational requirements.
Parameter Table
| Vehicle Model | LHT4420 |
| Vehicle Type | 12x12 Special Chassis |
| Fuel Type | Diesel |
| Drive Type | Left Hand Drive / Right Hand Drive |
| Dimension L*W*H(mm) | 13500*2500*3350 |
| G.V.W(kg) | 42000 |
| Curb weight(kg) | 24000 |
| Max. Speed(km/h) | 90 |
| Engine | Weichai |
| Peak Power/Torque | 412kw/2585N.m |
| Gearbox | FAST 12MT |
| Splitter Box | Equipped |
